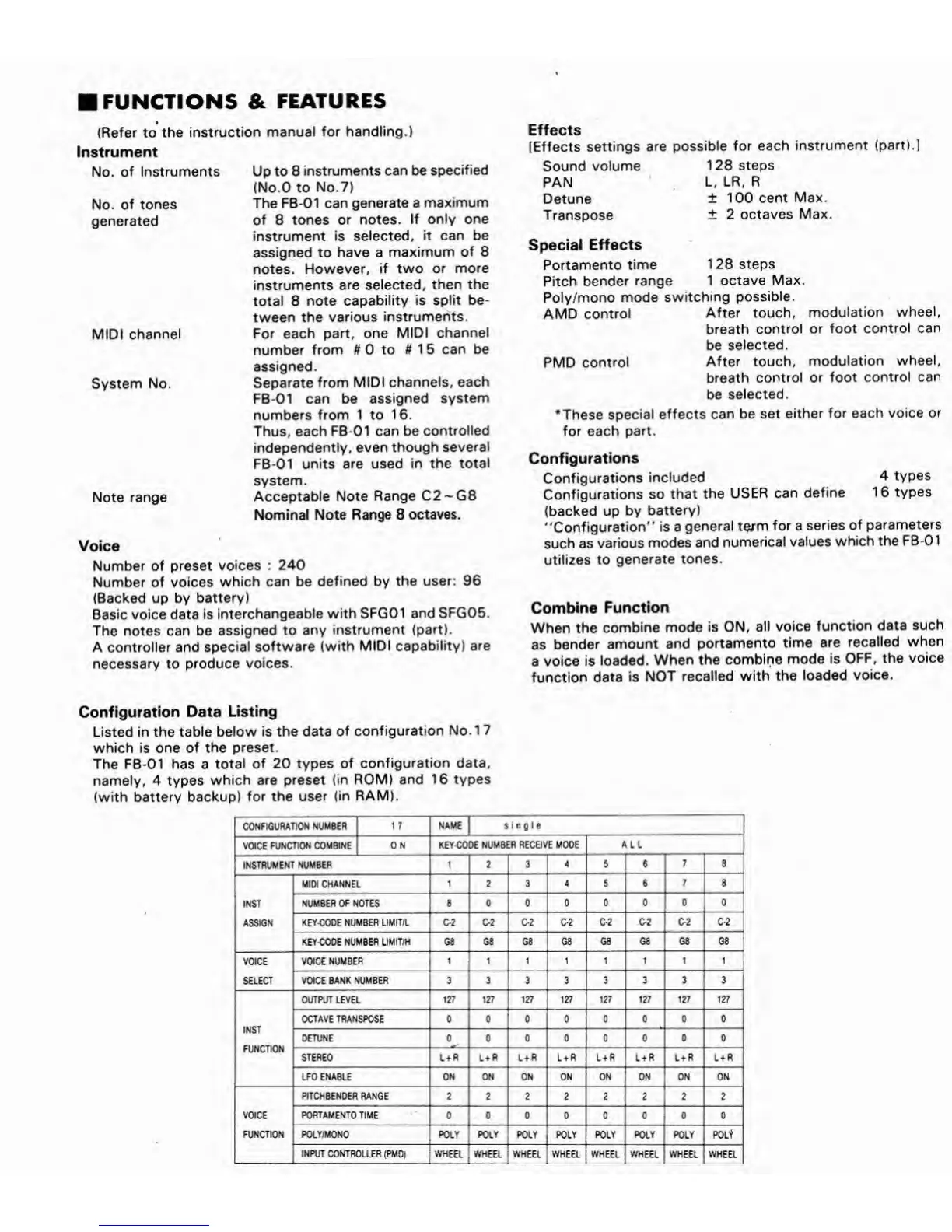

■ FUNCTIONS & FEATURES
(Refer to the instruction manual for handling.)
Instrument
No. of Instruments
No. of tones
generated
MIDI channel
System No.
Note range
Up to 8 instruments can be specified
(No.O to No.7)
The FB-01 can generate a maximum
of 8 tones or notes. If only one
instrument is selected, it can be
assigned to have a maximum of 8
notes. However, if two or more
instruments are selected, then the
total 8 note capability is split be¬
tween the various instruments.
For each part, one MIDI channel
number from # 0 to #15 can be
assigned.
Separate from MIDI channels, each
FB-01 can be assigned system
numbers from 1 to 16.
Thus, each FB-01 can be controlled
independently, even though several
FB-01 units are used in the total
system.
Acceptable Note Range C2-G8
Nominal Note Range 8 octaves.
Voice
Number of preset voices : 240
Number of voices which can be defined by the user: 96
(Backed up by battery)
Basic voice data is interchangeable with SFG01 and SFG05.
The notes can be assigned to any instrument (part).
A controller and special software (with MIDI capability) are
necessary to produce voices.
Effects
(Effects settings are possible for each instrument (part).l
Sound volume
PAN
Detune
Transpose
128 steps
L, LR, R
± 100 cent Max.
± 2 octaves Max.
Special Effects
Portamento time 128 steps
Pitch bender range 1 octave Max.
Poly/mono mode switching possible.
AMD control After touch, modulation wheel,
breath control or foot control can
be selected.
PMD control After touch, modulation wheel,
breath control or foot control can
be selected.
•These special effects can be set either for each voice or
for each part.
Configurations
Configurations included 4 types
Configurations so that the USER can define 16 types
(backed up by battery)
"Configuration" is a general te/m for a series of parameters
such as various modes and numerical values which the FB-01
utilizes to generate tones.
Combine Function
When the combine mode is ON, all voice function data such
as bender amount and portamento time are recalled when
a voice is loaded. When the combine mode is OFF, the voice
function data is NOT recalled with the loaded voice.
Configuration Data Listing
Listed in the table below is the data of configuration No. 1 7
which is one of the preset.
The FB-01 has a total of 20 types of configuration data,
namely, 4 types which are preset (in ROM) and 16 types
(with battery backup) for the user (in RAM).
CONFIGURATION NUMBER 1 7
NAME 1 single
VOICE FUNCTION COMBINE ON KEY CODE NUMBER RECEIVE MODE
ALL
INSTRUMENT NUMBER 1 2 <
5 6
7 8
INST
ASSIGN
MIDI CHANNEL 1 2
3 A 5 6
7 8
NUMBER OF NOTES 8 0 0 0 0 0
0 0
— — ' ' ~ 1 "
KEY-CODE NUMBER LIMIT/L 02 02 02 02
02 02 02 02
KEY-CODE NUMBER LIMIT/H G8
ES
G8
G8 G8 G8 G8 G8
VOICE
SELECT
VOICE NUMBER 1 1 1 1 1 1
1 1
VOICE BANK NUMBER 3 3 3 3 3 3 3 3
INST
FUNCTION
OUTPUT LEVEL 127
'
127 127
127
127 127 127 127
OCTAVE TRANSPOSE 0 0 0
mm
0 0 0
0
DETUNE 0 0 0 0 0 0 0 0
STEREO L + R L+R L+R L+R L+R
LFO ENABLE
ON ON ON ON ON ON ON ON
VOICE
FUNCTION
PITCHBENDER RANGE 2 2
2 2
2
2 2 2
PORTAMENTO TIME 0 0 0 0 0 0 0
i
0
POLY/MONO
POLY POLY
POLY
POLY
POLY
POLY
POLY POL*
INPUT CONTROLLER (PMD)
WHEEL WHEEL WHEEL WHEEL WHEEL
