2-1
E
EJU10080

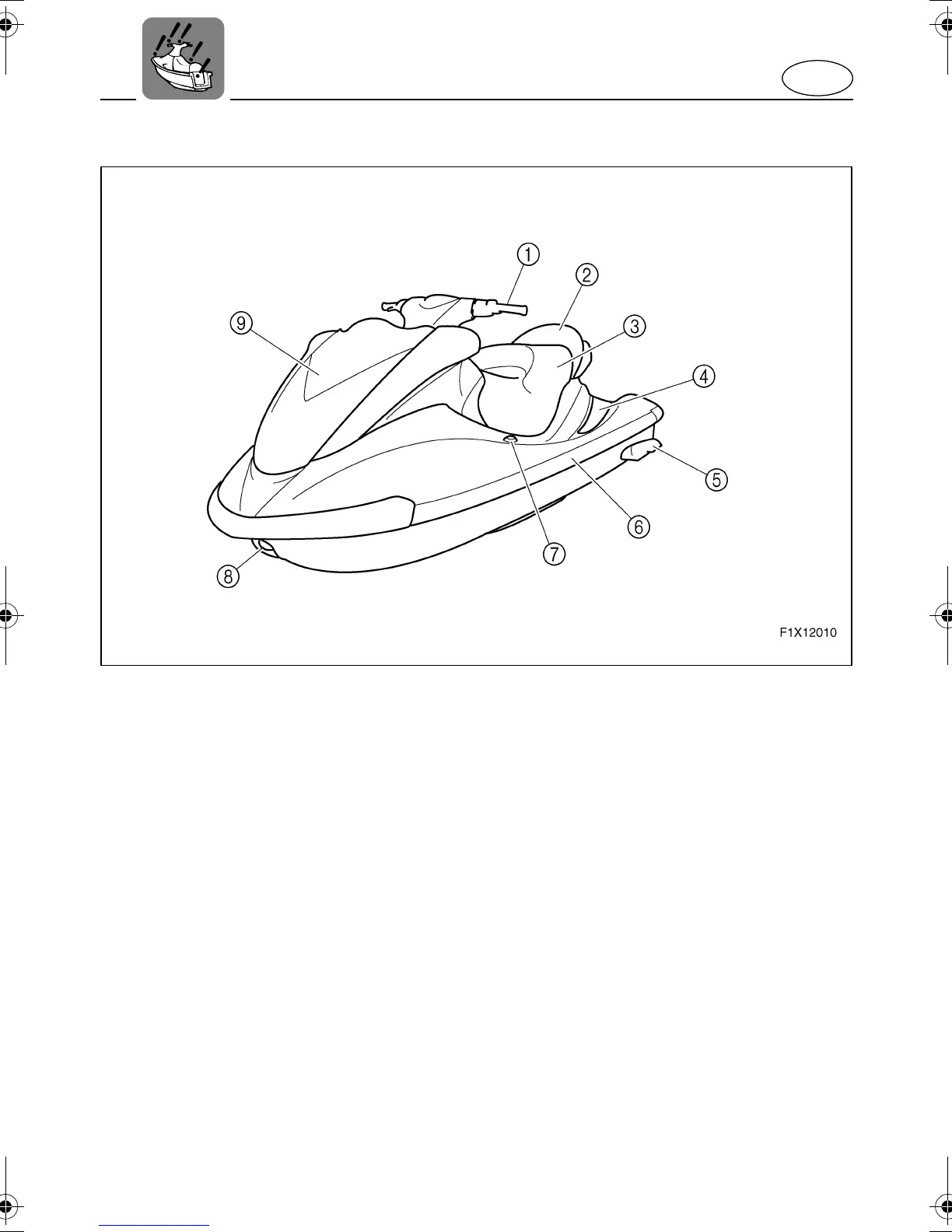

Location of main components
1
Handlebars
Use to control direction.
2
Rear seat
3
Front seat
4
Footwell
Use to place feet for balance.
To keep proper balance while facing to the rear
to watch the skier.
5
Sponsons
6
Gunwale
7
Pull-up cleat (for FX Cruiser High Output)
Use to attach rope for mooring.
8
Bow eye
Use to attach rope for transporting, mooring or
towing the watercraft in an emergency.
9
Hood
