ENGINE REMOVAL
EA$2:)111

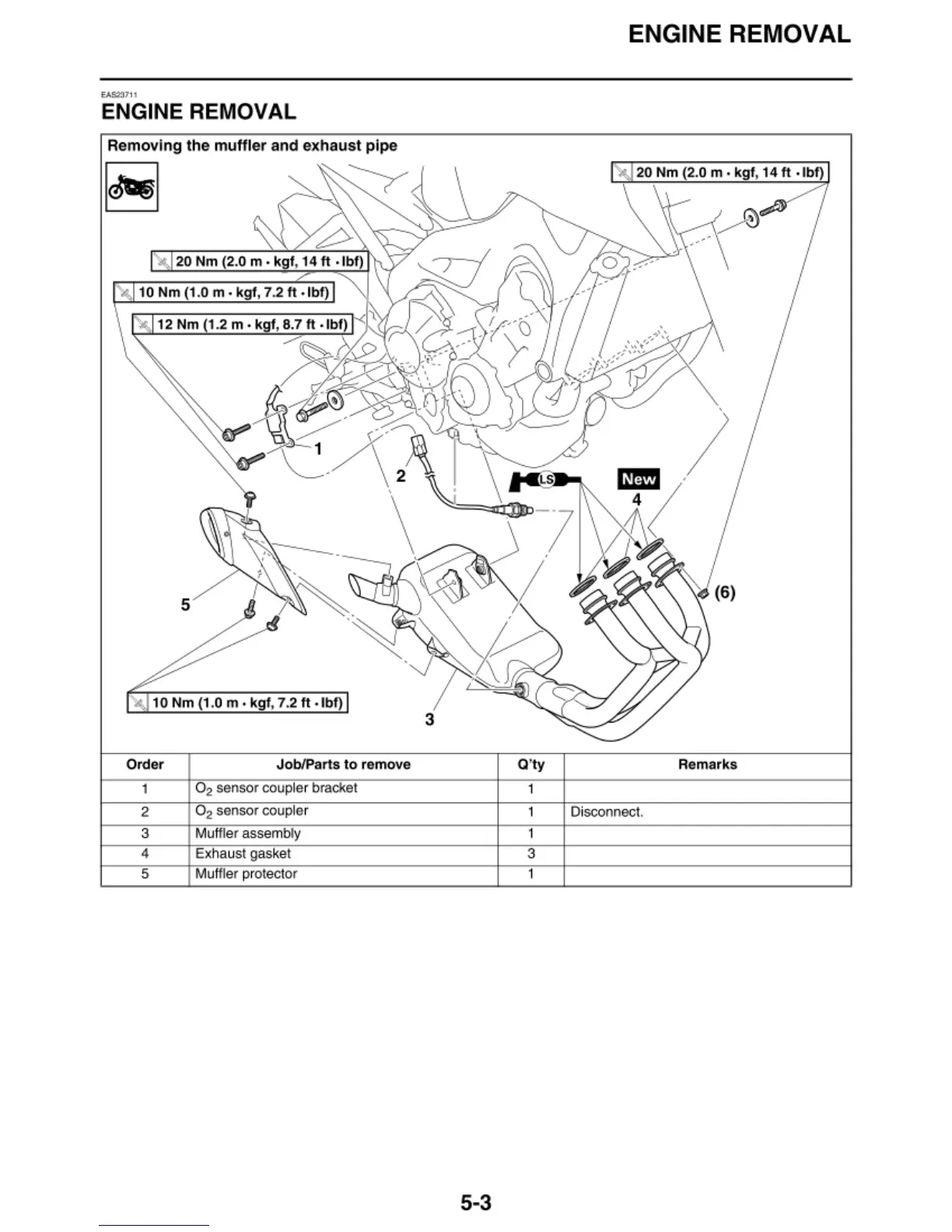

ENGINE REMOVAL
Removing the muffler and exhaust pipe
~ 10 Nm (1 .0 m • kgf , 7.2 ft· lbf)
~ 10 Nm (1.0 m. kgf, 7.2 ft -lbf)
3
Order Job/Parts to remove Q' ty Remarks
1 0
2
sensor coupler bracket
1
2 0
2
sensor coupler
1 Disconnect.
3 Muffler assembly
1
4
Exhaust gasket 3
5
Muffler protector
1
5-3
