CRANKSHAFT AND BALANCER SHAFT
EAS;.2$950

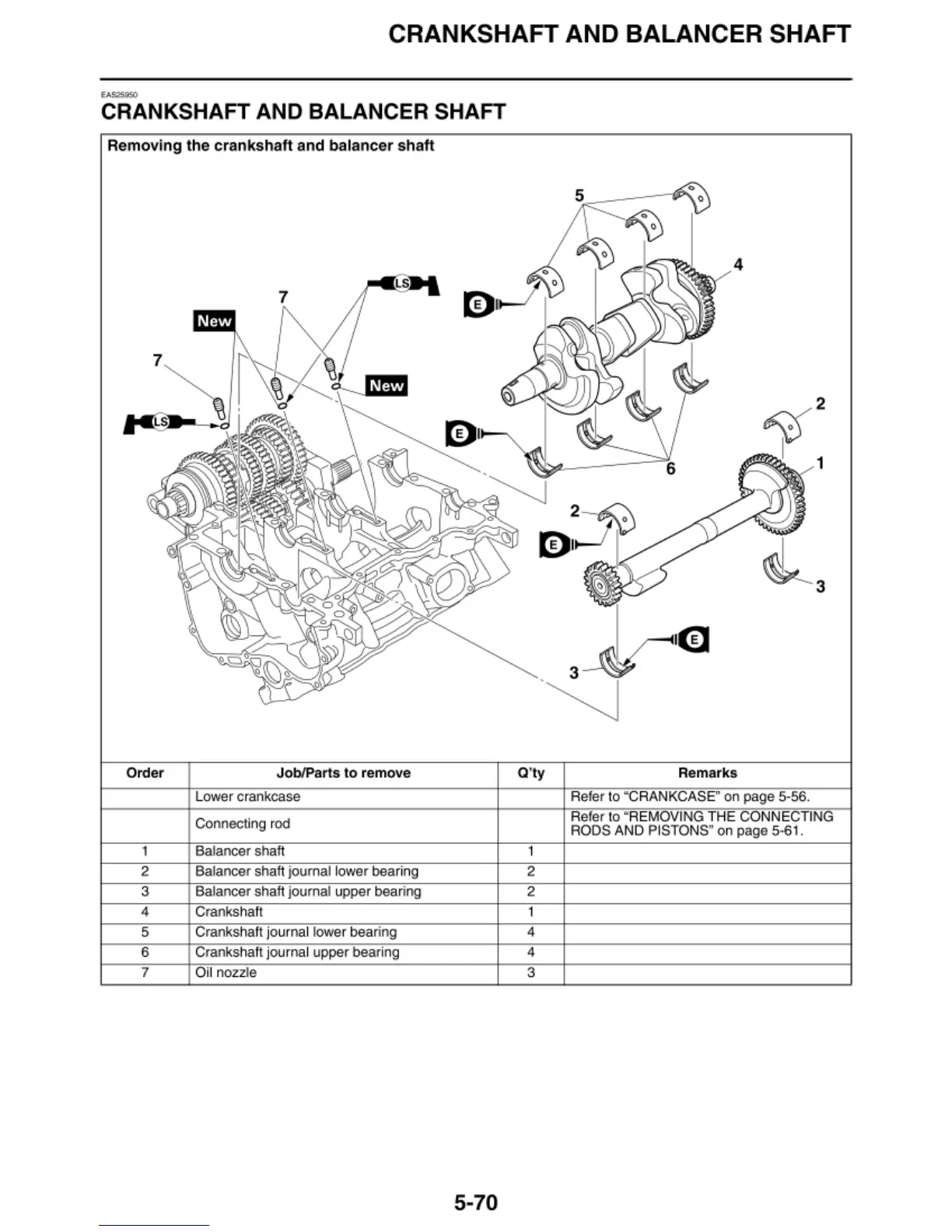

CRANKSHAFT AND BALANCER SHAFT
Removing the crankshaft and balancer shaft
4
7
7 I
.~ ~ ·
~ 2
I 1
Order
Job/Parts to remove Q'ty Remarks
Lower crankcase
Refer to "CRANKCASE" on page 5-
56 .
Connecting r
od
Refer to "REMOVI NG T HE CONNECTING
RODS ANO PISTONS" on page 5
-6 1.
1 Balancer shaft 1
2
Balancer shaft journal lower bearing
2
3
Balancer shaft journal upper bearing
2
4 Crankshaft
1
5
Crankshaft journal lower beari
ng 4
6
Crankshaft journal upper bearing
4
7
Oil no zzfe
3
5-70

Yamaha FZ-09 Specifications

General

Bore x Stroke	78.0mm x 59.1mm
Compression Ratio	11.5:1
Final Drive	Chain
Front Tire	120/70ZR17
Rear Tire	180/55ZR17
Seat Height	32.1 in
Wheelbase	56.7 in
Fuel Economy	44 mpg
Wet Weight	414 lb
Fuel Delivery	Fuel injection
Ignition	TCI
Transmission	6-speed
Front Suspension	Inverted fork, 5.4-in travel
Rear Suspension	Single shock, 5.1-in travel
Front Brakes	Dual hydraulic disc, 298 mm
Rear Brakes	Hydraulic disc, 245 mm
Rake (Caster Angle)	25°
Horsepower	115 hp @ 10, 000 rpm
