DESCRIPTION
2-2
2
EAU10420

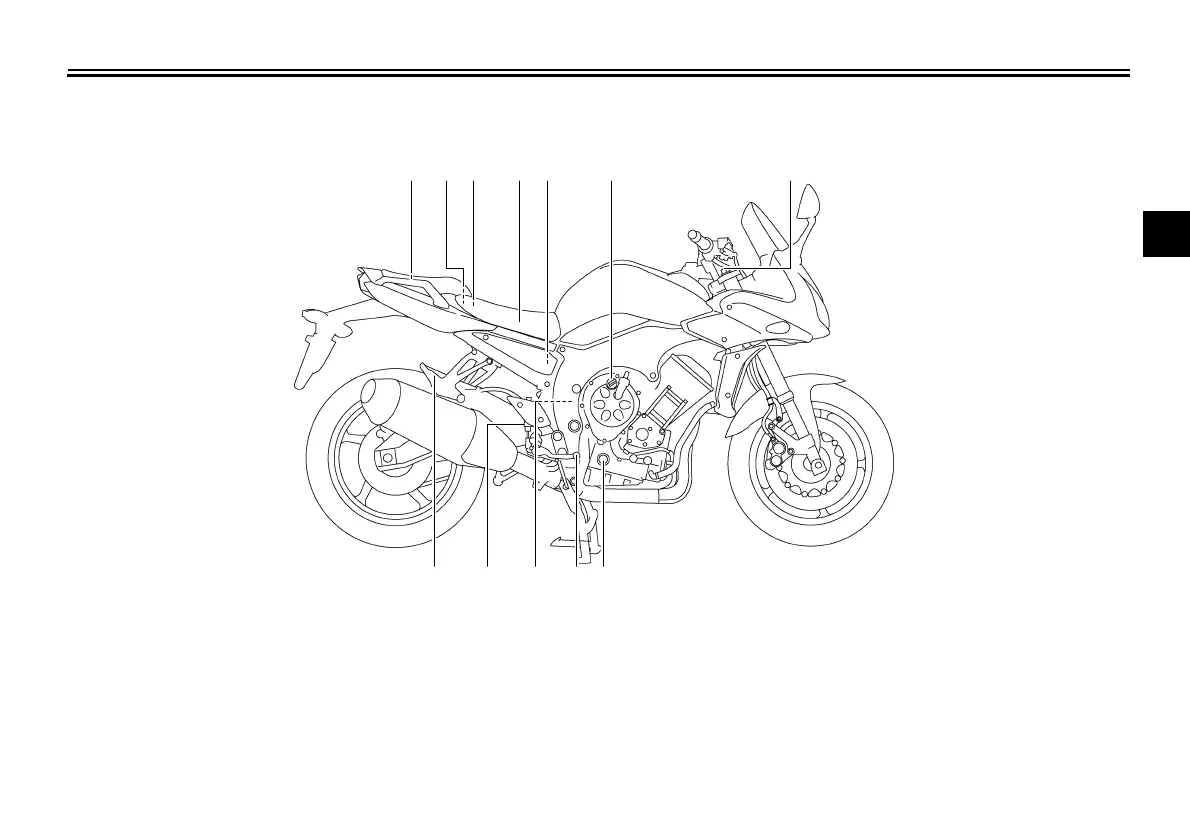

Right view
1 2 3 4 5 6 7
89101112
1. Owner’s tool kit (page 6-1)
2. Rider seat lock lever (page 3-19)
3. Fuse box (page 6-30)
4. Battery (page 6-29)
5. Rear brake fluid reservoir (page 6-22)
6. Engine oil filler cap (page 6-9)
7. Front fork rebound damping force adjusting screw (page 3-21)
8. Engine oil level check window (page 6-9)
9. Brake pedal (page 3-15)
10.Coolant reservoir (page 6-12)
11.Rear brake light switch (page 6-20)
12.Luggage strap holder (page 3-25)
U3C3E4E0.book Page 2 Friday, July 10, 2009 5:01 PM

Yamaha FZ1-S Specifications

General

Bore x Stroke	77.0 mm x 53.6 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	TCI
Transmission	6-speed
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/50-ZR17
Seat Height	815 mm
Wheelbase	1, 460 mm
Length	2, 140 mm
Width	770 mm
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve, inline-four
Rear Suspension	Single shock, adjustable preload and rebound damping
Front Brakes	Dual 320 mm discs, 4-piston calipers
Rear Brakes	245 mm disc, single-piston caliper
Fuel Capacity	18 L
Wet Weight	487 lb
