PERIODIC MAINTENANCE AND ADJUSTMENT
6-7
6
EAU18771

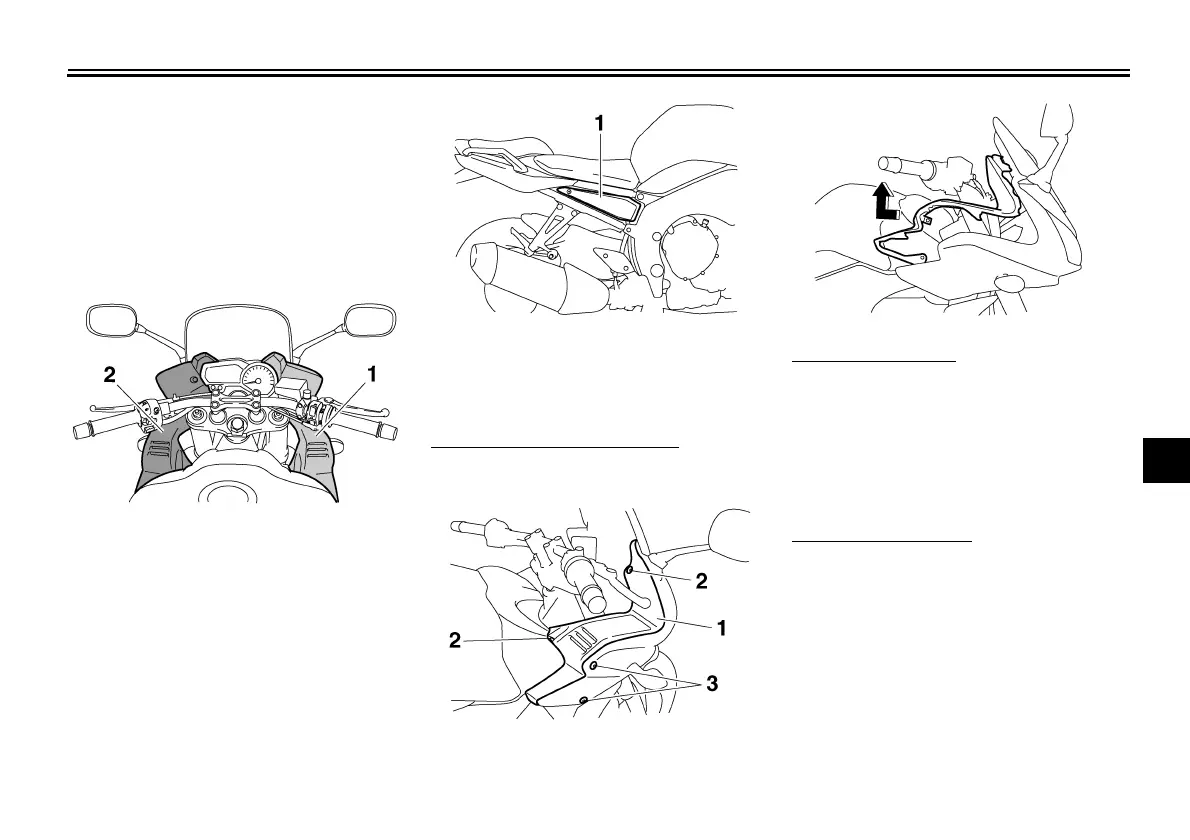

Removing and installing pan-
els
The panels shown need to be removed
to perform some of the maintenance
jobs described in this chapter. Refer to
this section each time a panel needs to
be removed and installed.
EAU40030
Panels A and B
To remove one of the panels
Remove the bolts and the screws, and
then pull the panel off as shown.
To install the panel
Place the panel in the original position,
and then install the screws and the
bolts.
EAU19281
Panel C
To remove the panel
Remove the screw, and then pull the
panel off as shown.
1. Panel A
2. Panel B
1. Panel C
1. Panel A
2. Screw
3. Bolt
U3C3E4E0.book Page 7 Friday, July 10, 2009 5:01 PM

Yamaha FZ1-S Specifications

General

Bore x Stroke	77.0 mm x 53.6 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	TCI
Transmission	6-speed
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/50-ZR17
Seat Height	815 mm
Wheelbase	1, 460 mm
Length	2, 140 mm
Width	770 mm
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve, inline-four
Rear Suspension	Single shock, adjustable preload and rebound damping
Front Brakes	Dual 320 mm discs, 4-piston calipers
Rear Brakes	245 mm disc, single-piston caliper
Fuel Capacity	18 L
Wet Weight	487 lb
