Yamaha FZ1-S User Manual

INSTRUMENT AND CONTROL FUNCTIONS
3-12
3
LCD and tachometer brightness
control mode
This function allows you to adjust the
brightness of the LCD and the tachom-
eter panel and needle to suit the out-
side lighting conditions.
To set the brightness
1. Turn the key to “OFF”.
2. Push and hold the “SELECT” but-
ton.
3. Turn the key to “ON”, and then re-
lease the “SELECT” button after
five seconds.
4. Push the “RESET” button to select
the desired brightness level.
5. Push the “SELECT” button to con-
firm the selected brightness level.
The display will return to the odom-
eter or tripmeter mode.
EAU12331
Anti-theft alarm (optional)
This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.

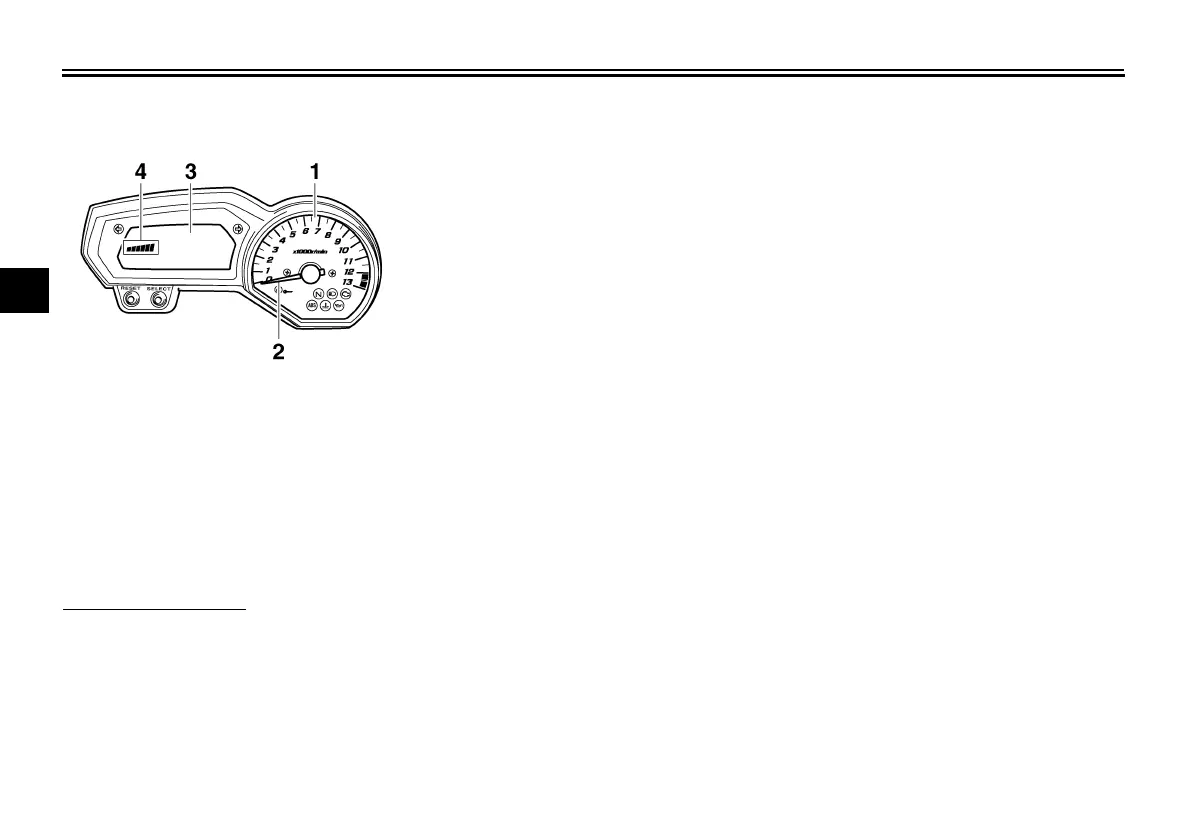

1. Tachometer panel
2. Tachometer needle
3. LCD
4. Brightness level
U3C3E4E0.book Page 12 Friday, July 10, 2009 5:01 PM

Yamaha FZ1-S Specifications

General

Bore x Stroke	77.0 mm x 53.6 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	TCI
Transmission	6-speed
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/50-ZR17
Seat Height	815 mm
Wheelbase	1, 460 mm
Length	2, 140 mm
Width	770 mm
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve, inline-four
Rear Suspension	Single shock, adjustable preload and rebound damping
Front Brakes	Dual 320 mm discs, 4-piston calipers
Rear Brakes	245 mm disc, single-piston caliper
Fuel Capacity	18 L
Wet Weight	487 lb
