Yamaha FZ1-S User Manual

PERIODIC MAINTENANCE AND ADJUSTMENT
6-30
6
NOTICE
ECA16520
To charge a VRLA (Valve Regulated
Lead Acid) battery, a special (con-
stant-voltage) battery charger is re-
quired. Using a conventional battery
charger will damage the battery. If
you do not have access to a con-
stant-voltage battery charger, have a
Yamaha dealer charge your battery.
To store the battery
1. If the vehicle will not be used for
more than one month, remove the
battery, fully charge it, and then
place it in a cool, dry place.
NOTICE: When removing the
battery, be sure the key is
turned to “OFF”, then discon-
nect the negative lead before
disconnecting the positive lead.
[ECA16302]
2. If the battery will be stored for more
than two months, check it at least
once a month and fully charge it if
necessary.
3. Fully charge the battery before in-
stallation.
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.
NOTICE
ECA16530
Always keep the battery charged.
Storing a discharged battery can
cause permanent battery damage.
EAU43132
Replacing the fuses
The main fuse, the fuel injection system
fuse, and the fuse boxes, which contain
the fuses for the individual circuits, are
located under the rider seat. (See page
3-19.)

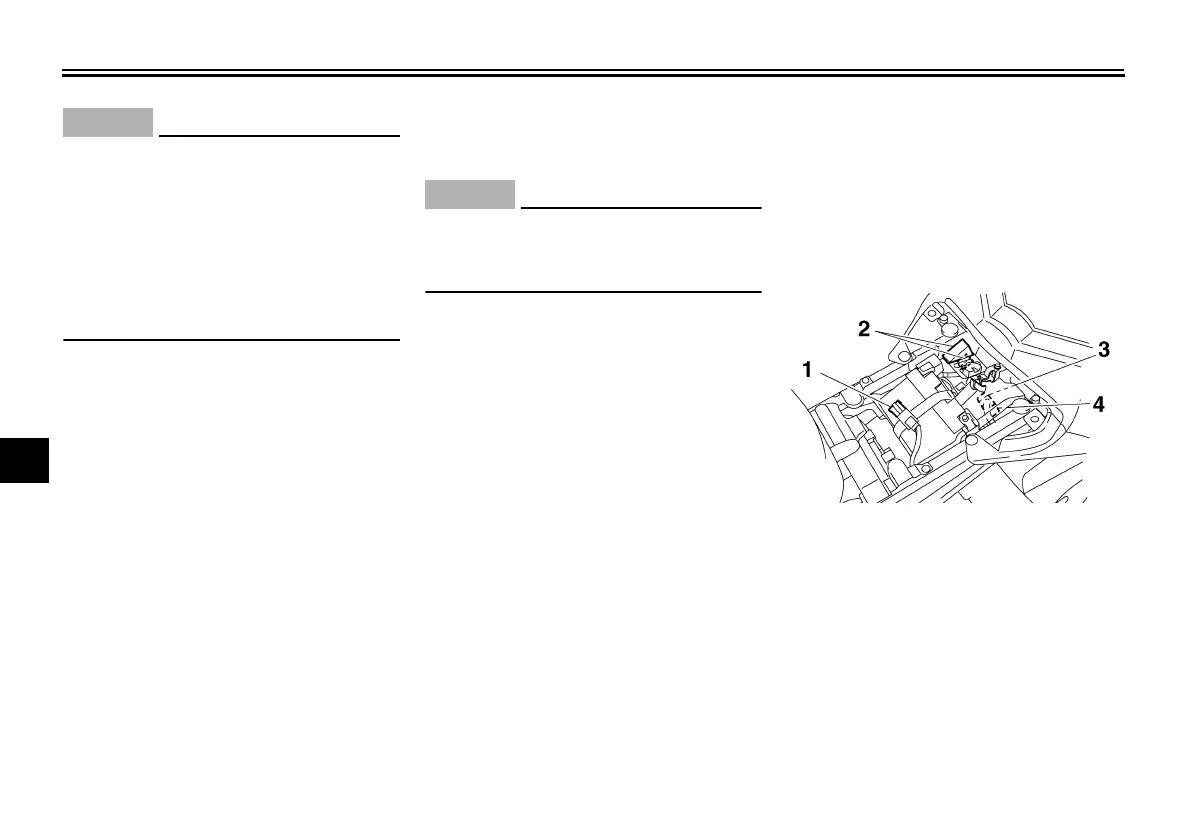

FZ1-S
1. Main fuse
2. Fuse box
3. Fuel injection system fuse
4. Fuel injection system spare fuse
U3C3E4E0.book Page 30 Friday, July 10, 2009 5:01 PM

Yamaha FZ1-S Specifications

General

Bore x Stroke	77.0 mm x 53.6 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	TCI
Transmission	6-speed
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/50-ZR17
Seat Height	815 mm
Wheelbase	1, 460 mm
Length	2, 140 mm
Width	770 mm
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve, inline-four
Rear Suspension	Single shock, adjustable preload and rebound damping
Front Brakes	Dual 320 mm discs, 4-piston calipers
Rear Brakes	245 mm disc, single-piston caliper
Fuel Capacity	18 L
Wet Weight	487 lb
