PERIODIC MAINTENANCE AND MINOR REPAIR
6-20
6

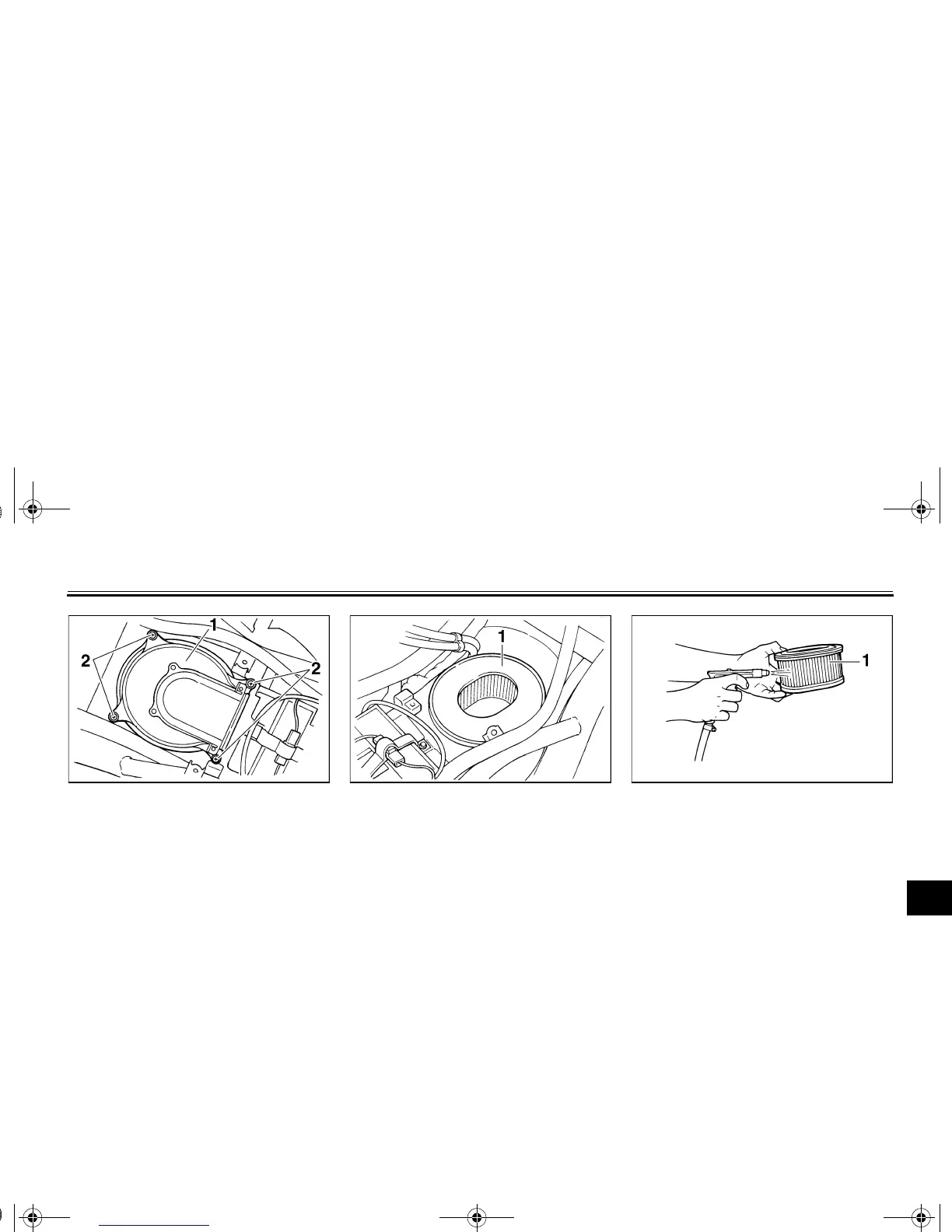

6. Remove the air filter case cover by
removing the screws.
7. Pull the air filter element out. 8. Lightly tap the air filter element to
remove most of the dust and dirt,
and then blow the remaining dirt
out with compressed air as shown.
If the air filter element is damaged,
replace it.
9. Insert the air filter element into the
air filter case.
1. Air filter case cover
2. Screw (× 4)
1. Air filter element 1. Air filter element
