Yamaha FZ6RC - REAR WHEEL

REAR WHEEL
4-11
EAS22030
REAR WHEEL

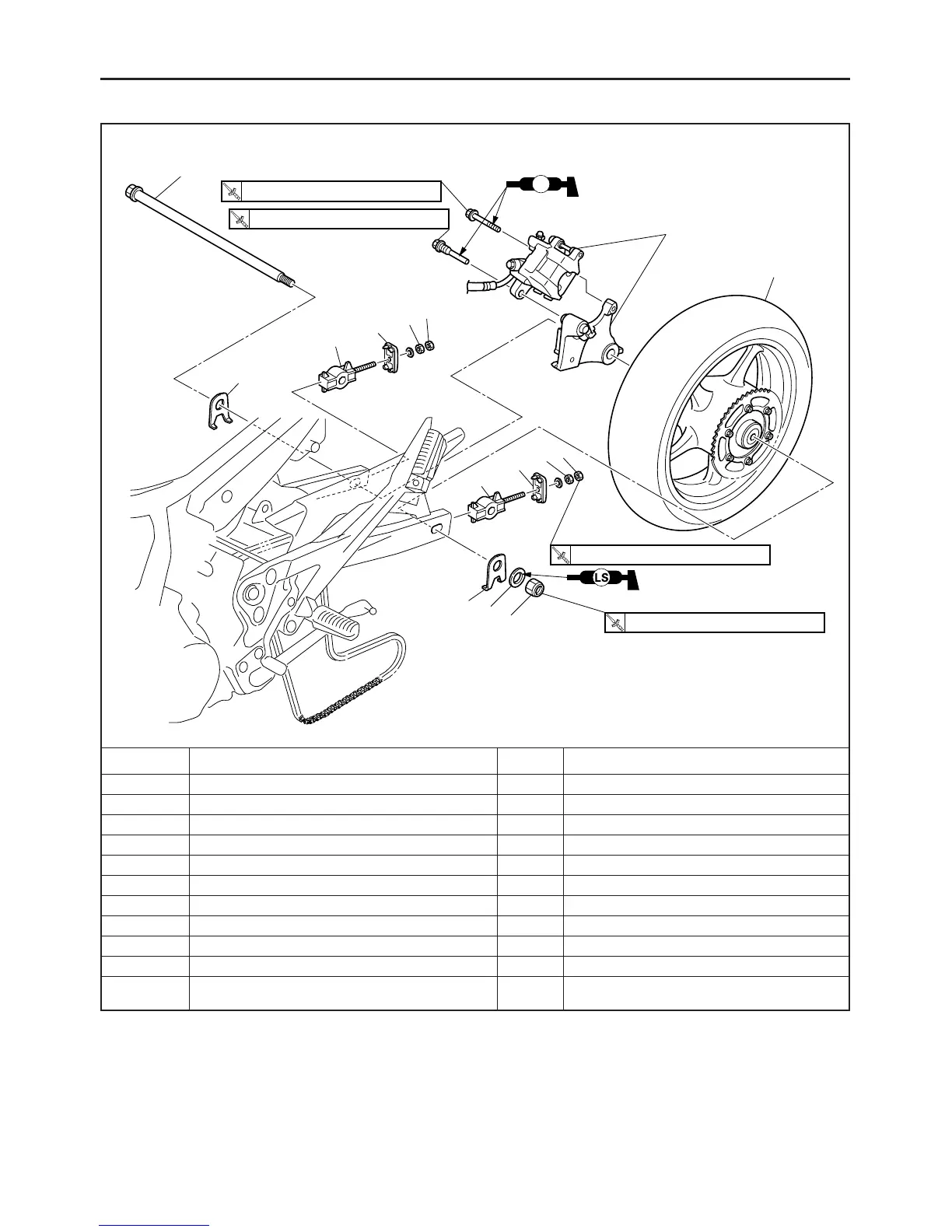

Removing the rear wheel
Order Job/Parts to remove Q’ty Remarks
1 Locknut 2 Loosen.
2 Adjusting nut 2 Loosen.
3 Cap 2
4 Rear wheel axle nut 1
5 Rear wheel axle 1
6 Washer 1
7 Indicator plate 2
8 Drive chain puller 2
9 Rear wheel 1
10 Rear brake caliper assembly 1
For installation, reverse the removal proce-
dure.
22 Nm (2.2 m • kgf, 15 ft • Ibf)
27 Nm (2.7 m
•
kgf, 19 ft
•
Ibf)
1
2
3
4
5
6
7
8
1
2
3
8
9
10
S
90 Nm (9.0 m
•
kgf, 64 ft
•
Ibf)
16 Nm (1.6 m
•
kgf, 11 ft
•
Ibf)
7
