SWINGARM
4-58
EAS23330
SWINGARM

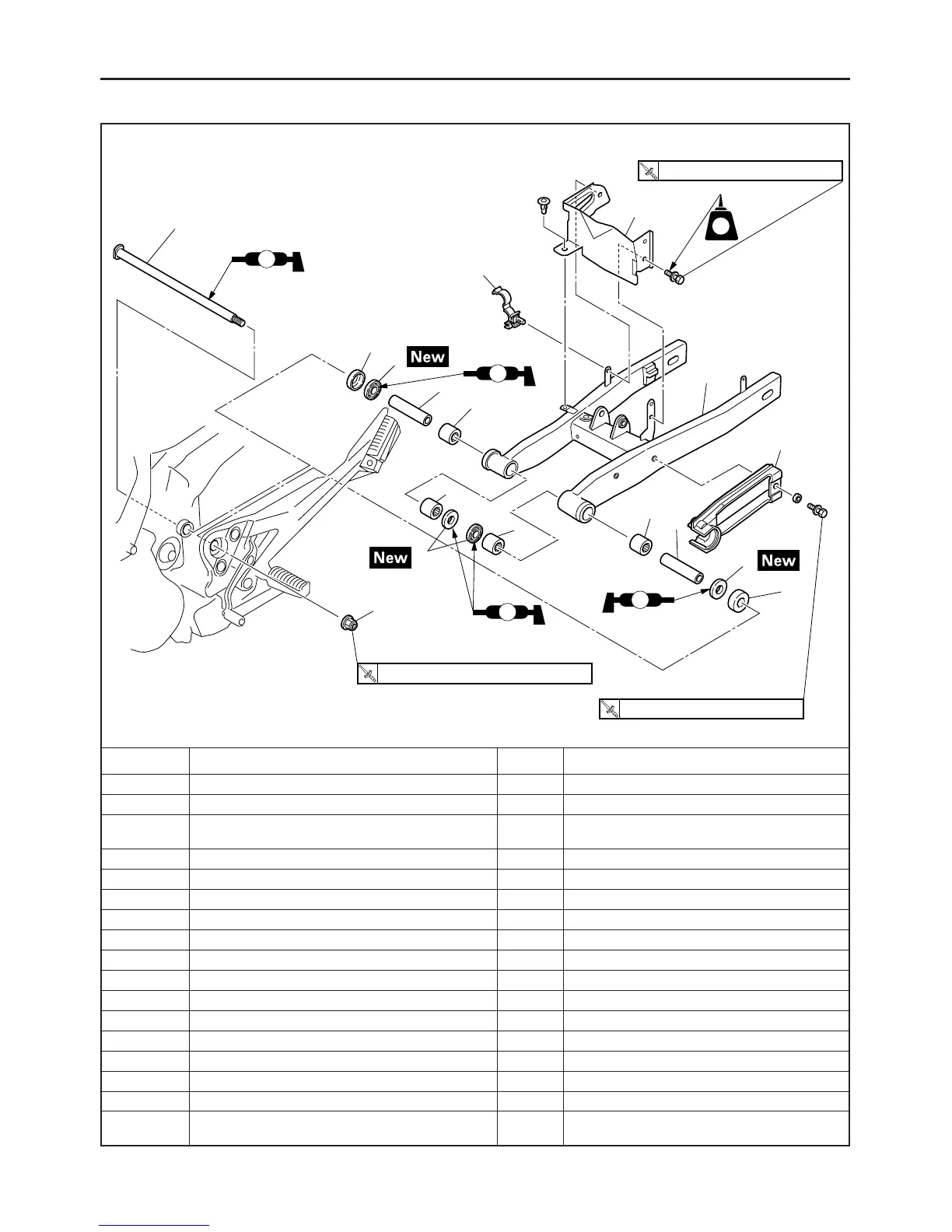

Removing the swingarm
Order Job/Parts to remove Q’ty Remarks
Rear brake caliper Refer to “REAR BRAKE” on page 4-28.
Rear wheel Refer to “REAR WHEEL” on page 4-11.
Rear shock absorber assembly
Refer to “REAR SHOCK ABSORBER
ASSEMBLY” on page 4-55.
Drive sprocket Refer to “ENGINE REMOVAL” on page 5-1.
Shift rod Refer to “ENGINE REMOVAL” on page 5-1.
1 Pivot shaft nut 1
2 Pivot shaft 1
3 Swingarm 1
4 Dust cover 2
5 Spacer 2
6 Oil seal 2
7 Oil seal 2
8 Bearing 4
9 Clamp 1
10 Dust cover 1
11 Drive chain guide 1
For installation, reverse the removal proce-
dure.
110 Nm (11.0 m
•
kgf, 79 ft
•
Ibf)
7 Nm (0.7 m
•
kgf, 5 ft
•
Ibf)
1
2
3
4
5
6
7
8
9
10
LT
M
7 Nm (0.7 m
•
kgf, 5 ft
•
Ibf)
8
8
8
6
M
M
5
4
11
M
