Instrument and control functions
6-10
6
The battery voltage indicator
This shows the current charge state of
the battery.
z 12.8 V or more: full charge
z 12.7 V or less: charging required
If the battery voltage is less than 9.0 V,
“_ _._” will be displayed.
SMG assist icon
This vehicle is equipped with a Smart
Motor Generator (SMG) that not only
starts the engine, but also assists with
initial acceleration.
When the smart motor generator is as-
sisting with acceleration, the display
will show the SMG assist icon.
The SMG assist icon can be turned off.
To do so, push the “RESET/SELECT”
button for one second. To turn the dis-
play back on, push the “RESET/SE-
LECT” button for one second.
When battery voltage is low, the smart
motor generator may not assist with
acceleration.
EAU1234M

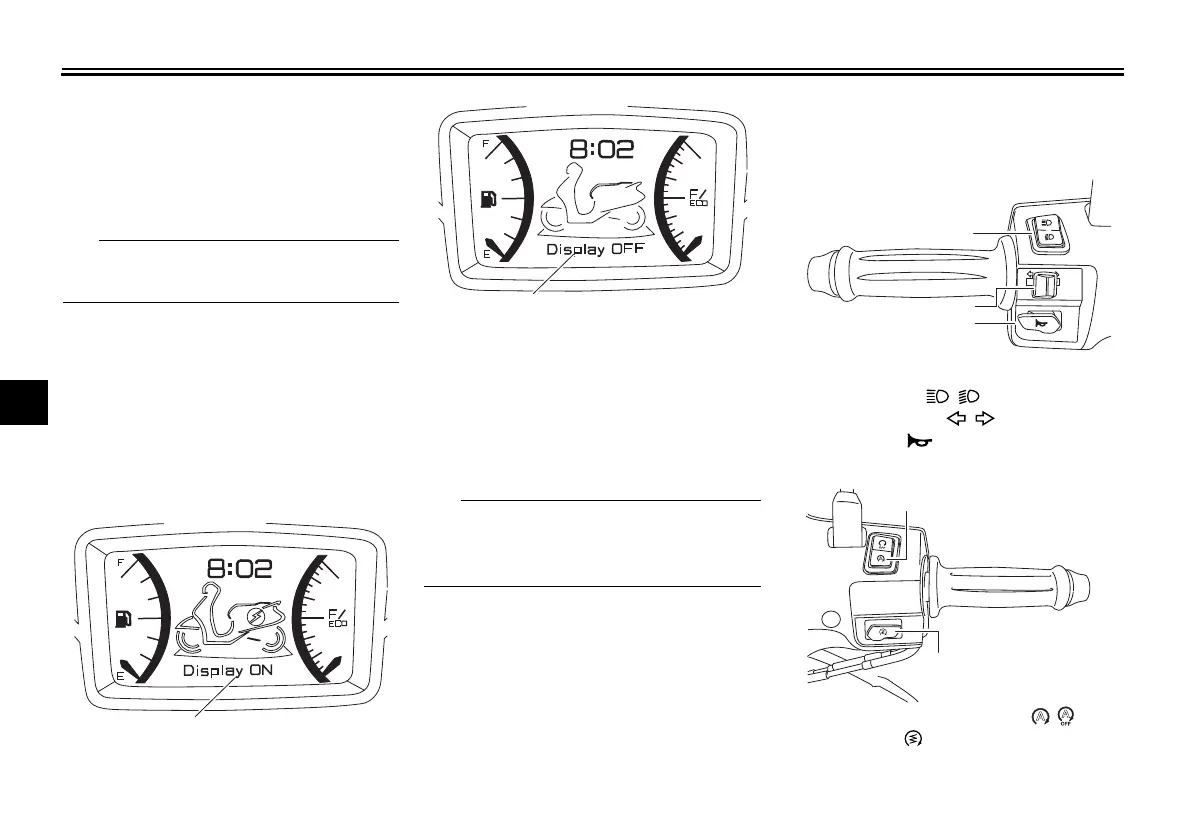

Handlebar switches
Left
Right
1. Display ON
1. Display OFF
1
1. Dimmer switch “ / ”
2. Turn signal switch “ / ”
3. Horn switch “ ”
1. Stop and Start System switch “ / ”
2. Start switch “ ”
A
A
1
2
A
UB8BE0E0.book Page 10 Wednesday, April 11, 2018 9:35 AM
