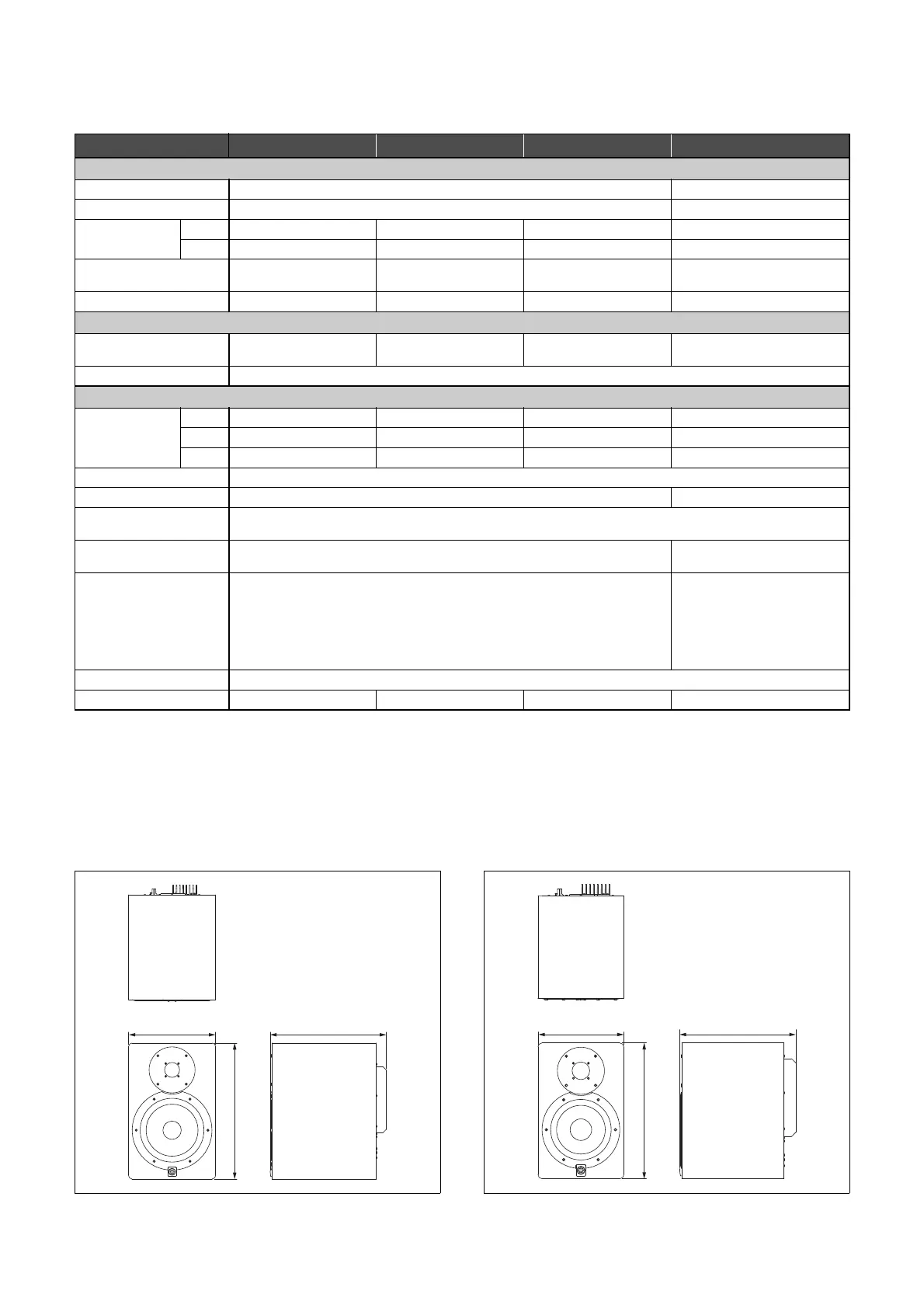

Specifications
Dimensions
HS8 HS7
Model HS8 HS7 HS5 HS8S
General Specifications
Typ e Bi-amp 2-way powered speaker Powered subwoofer
Crossover Frequency 2 kHz –
Overall Frequency
Response
-3dB 47 Hz – 24 kHz 55 Hz – 24 kHz 74 Hz – 24 kHz 33 Hz – 124 Hz
-10dB 38 Hz – 30 kHz 43 Hz – 30 kHz 54 Hz – 30 kHz 22 Hz – 160 Hz
Dimensions (W x H x D)
250 x 390 x 334 mm
9-13/16 x 15-3/8 x 13-1/8"
210 x 332 x 284 mm
8-1/4 x 13-1/16 x 11-3/16"
170 x 285 x 222 mm
6-11/16 x 11-1/4 x 8-3/4"
300 x 350 x 389 mm
11-13/16 x 13-3/4 x 15-5/16"
Weight 10.2 kg (22.5 lb.) 8.2 kg (18.1 lb.) 5.3 kg (11.7 lb.) 12.5 kg (27.6 lb.)
Speaker Components
Speaker Components
LF: 8" cone
HF: 1" dome
LF: 6.5" cone
HF: 1" dome
LF: 5" cone
HF: 1" dome
8" cone
Enclosure Bass-reflex type, Material: MDF
Amplifier Unit
Output Power
To t al 120 W (dynamic power) 95 W (dynamic power) 70 W (dynamic power) 150 W, 4 ohms (dynamic power)
LF 75 W (4 ohms) 60 W (4 ohms) 45 W (4 ohms) –
HF 45 W (8 ohms) 35 W (8 ohms) 25 W (8 ohms) –
Input Sensitivity / Impedance -10 dBu/10k ohms
Output Level/Impedance – -10 dBu/600 ohms
Input Connectors (Parallel) 1: XLR-3-31 type (balanced)
2: PHONE (balanced)
Output Connectors
– XLR-3-32 type (balanced) x2
(L&R)
Controls
LEVEL control (+4 dB, center click)
EQ: HIGH TRIM switch (+/- 2 dB at HF),
ROOM CONTROL switch (0/-2/-4 dB under 500Hz)
LEVEL control
PHASE switch (NORM./REV.)
HIGH CUT control
(80 – 120 Hz, center click)
LOW CUT control
(80 – 120 Hz, center click)
LOW CUT switch (ON/OFF)
Indicator Power ON (White LED)
Power Consumption 60 W 55 W 45 W 70 W
250 (9-13/16")
390 (15-3/8")
334 (13-1/8")
Unit: mm (inch)
210 (8-1/4")
332 (13-1/16")
284 (11-3/16")
Unit: mm (inch)
