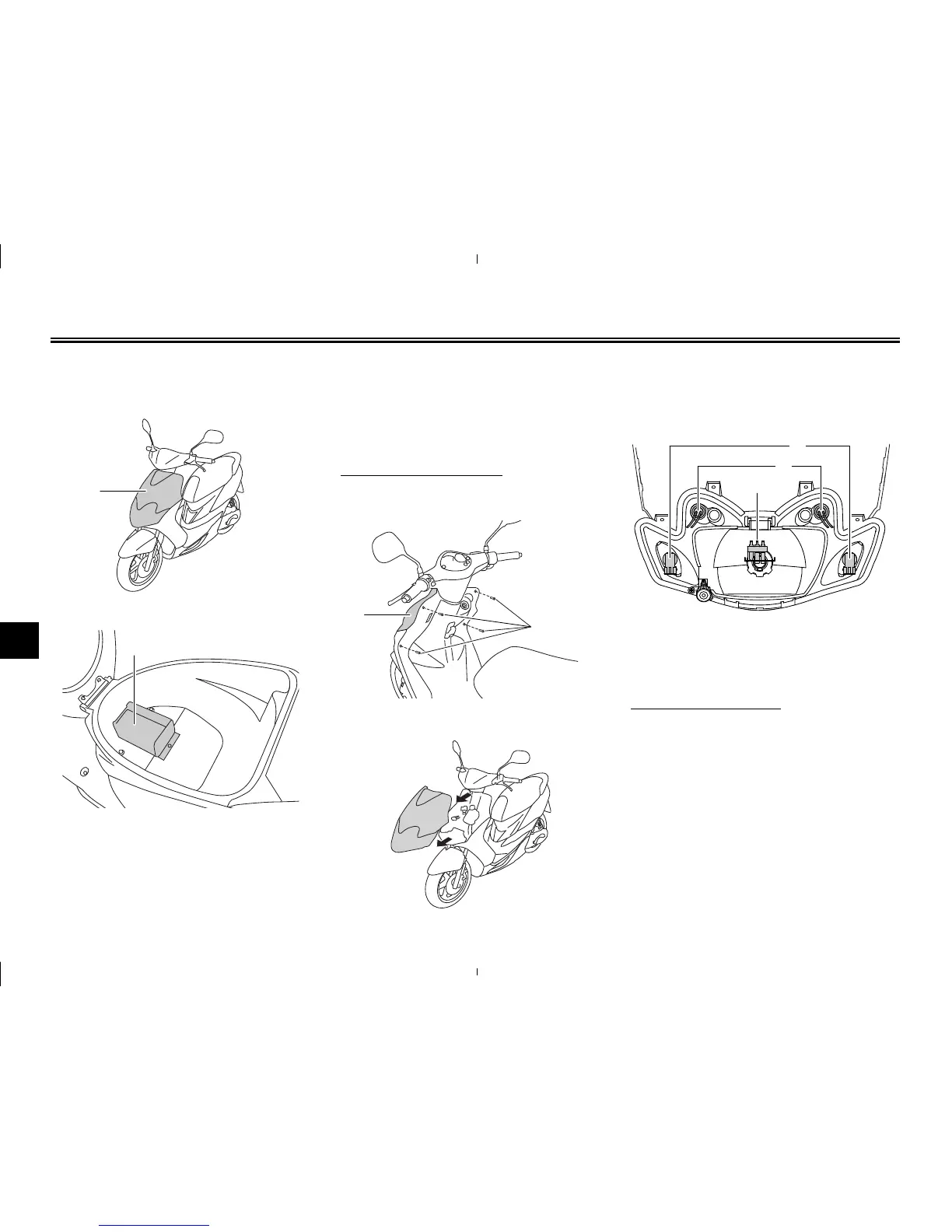

EAU18740
Removing and installing the
cowling and panel
1. Cowling A
1. Panel A
The cowling and panel shown above
need to be removed to perform some
of the maintenance jobs described in
this chapter. Refer to this section
each time a cowling or panel needs to
be removed and installed.
EAUS1520
Cowling A
To remove the cowling
1. Remove the screws, and then
pull the cowling off as shown.
1. Cowling
2. Screw
2. Disconnect the headlight lead
connectors, the turn signal cou-
plers, and the auxiliary light cou-
plers.
1. Headlight lead connector
2. Auxiliary light coupler
3. Turn signal coupler
To install the cowling
1. Connect the headlight leads con-
nectors, the turn signal couplers,
and the auxiliary light couplers.
2. Place the cowling in the original
position, and then install the
screws.
