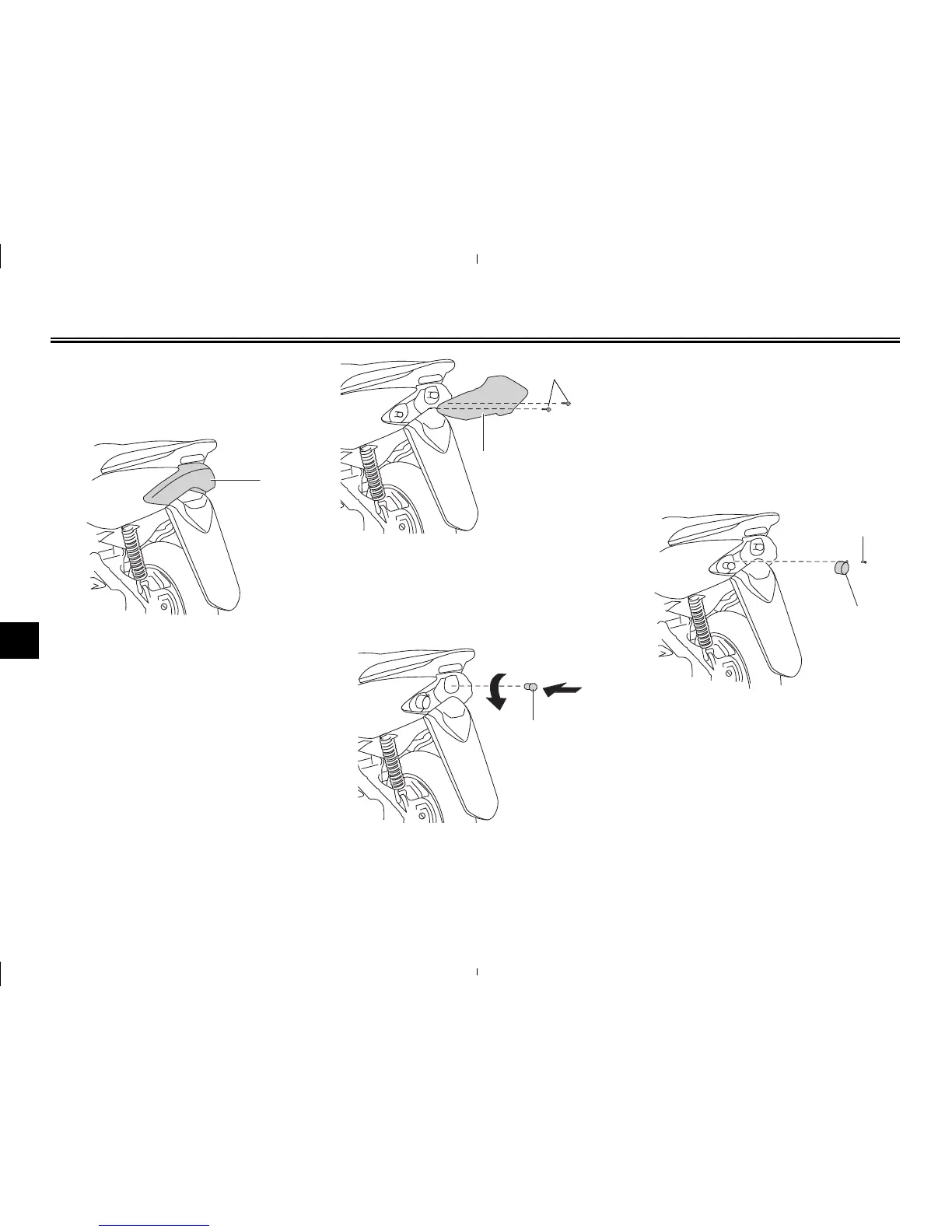

Replacing the tail/brake light
bulb or a rear turn signal
light bulb
1. Tail/brake light lens
Tail/brake light bulb
1. Remove the tail/brake light lens
by removing the screws.
1. Screw
2. Tail/brake light lens
2. Remove the burnt out bulb by
pushing it in and turning it coun-
terclockwise.
1. Tail/brake light bulb
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screws.
Rear turn signal light bulb
1. Remove the tail/brake light lens
by removing the screws.
1. Screw
2. Turn signal light lens
2. Remove the turn signal light lens
by removing the screw.
1
2
1
1
2
1
PERIODIC MAINTENANCE AND ADJUSTMENT
6-23
6
