Yamaha LF115 - Page 32

Components
26
TRIP TIME BATT
Km/h
knot
mph
km
mile
SPEED
YAMAHA
set
mode
SET MODE
SET MODE
1
76
245
8
12 1411
9
13
3
1615
10
17
ZMU08138

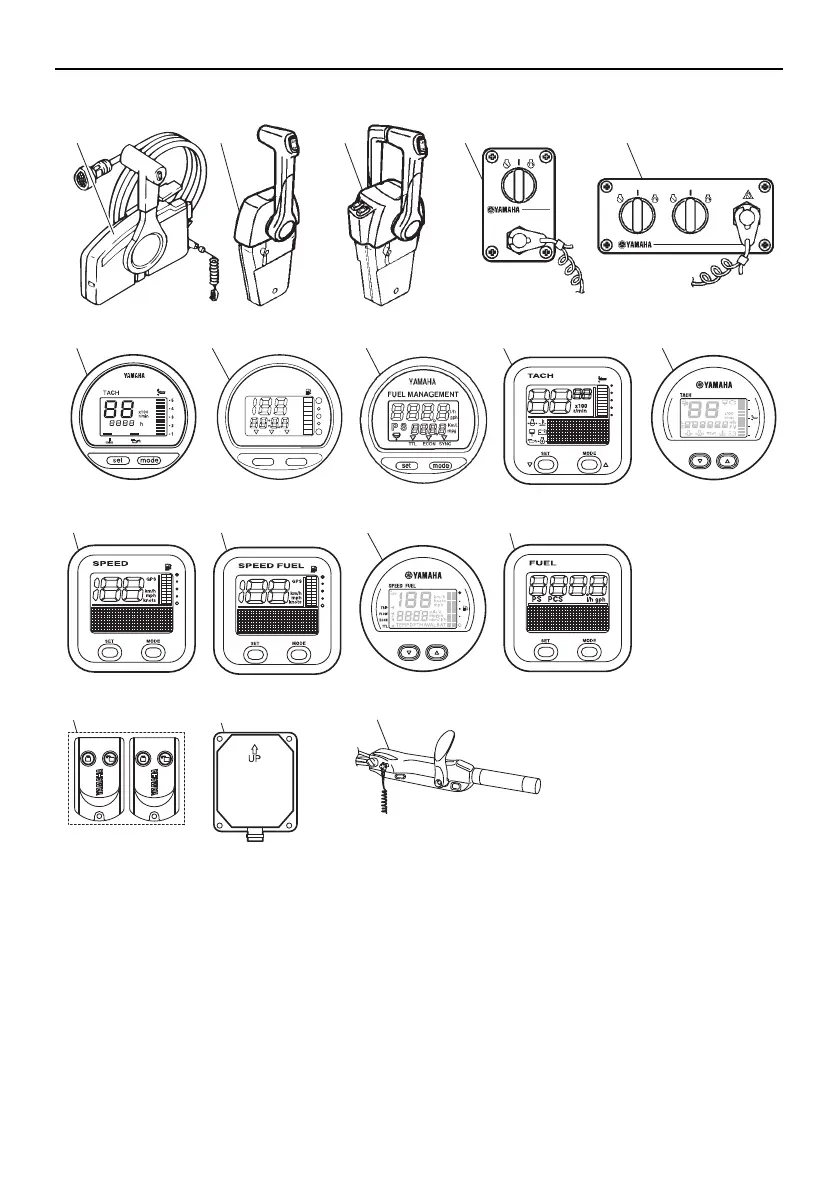

1. Remote control box (side mount type)*
2. Remote control box (binnacle mount type)*
3. Remote control box (binnacle mount type)*
4. Switch panel (for use with binnacle type)*
5. Switch panel (for use with binnacle type)*
6. Digital tachometer*
7. Digital speedometer*
8. Fuel management meter*
9. Tachometer unit (Square type)*
10.Tachometer unit (Round type)*
11.Speedometer unit (Square type)*
12.Speed & fuel meter unit (Square type)*
13.Speed & fuel meter unit (Round type)*
14.Fuel management meter unit (Square type)*
15.Remote control transmitter*
16.Receiver*
17.Tiller handle*
U6EK30E0.book Page 26 Wednesday, January 29, 2014 4:03 PM
