Operation
59
EMU40412
Outboard motor
 Check that the outboard motor is mounted
properly and check the outboard motor
mounting bolts for looseness.
 Check the propeller for damage.
 Check for engine oil leaks.
EMU36494
Flushing device
Check that the flushing device’s garden hose
connector is securely screwed on to the fit-
ting on the bottom cowling. NOTICE: If the
garden hose connector is not properly
connected, cooling water can leak out and
the engine can overheat during operation.
[ECM01802]
EMU36965
Install cowling
1. Be sure that all cowling lock levers are
released.
2. Be sure that the rubber seal is seated all
the way around the top cowling.
3. Place the top cowling on the bottom
cowling.
4. Check to be sure the rubber seal is seat-
ed correctly between the top cowling
and the bottom cowling.
5. Move the cowling lock levers to lock the
top cowling as shown. NOTICE : If the
top cowling is not installed correctly,
water spray under the top cowling can
damage the engine, or the top cowling
can blow off at high speeds.
[ECM01992]

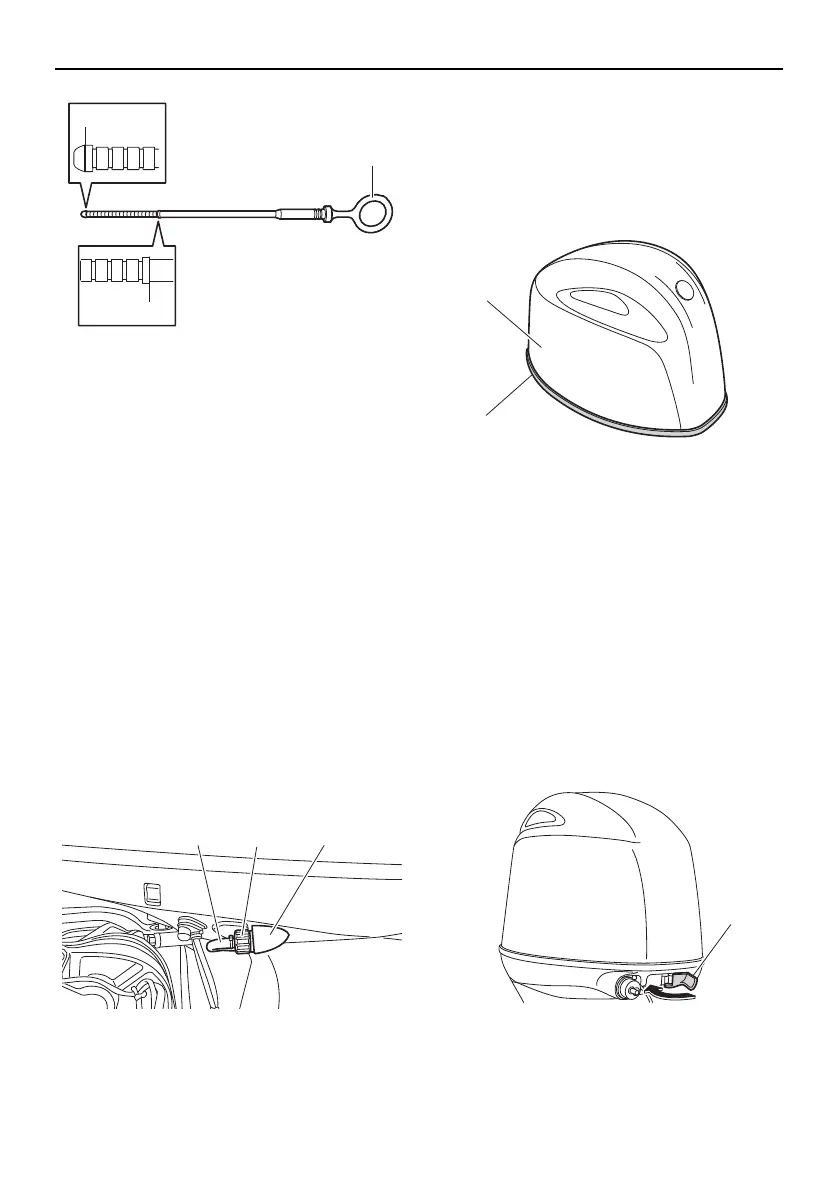

1. Oil dipstick
2. Upper mark
3. Lower mark
1. Fitting
2. Garden hose connector
3. Flushing device
1
2
3
ZMU08088
123
ZMU08089
1. Top cowling
2. Rubber seal
1. Cowling lock lever
1
2
ZMU08090
1
ZMU08091
