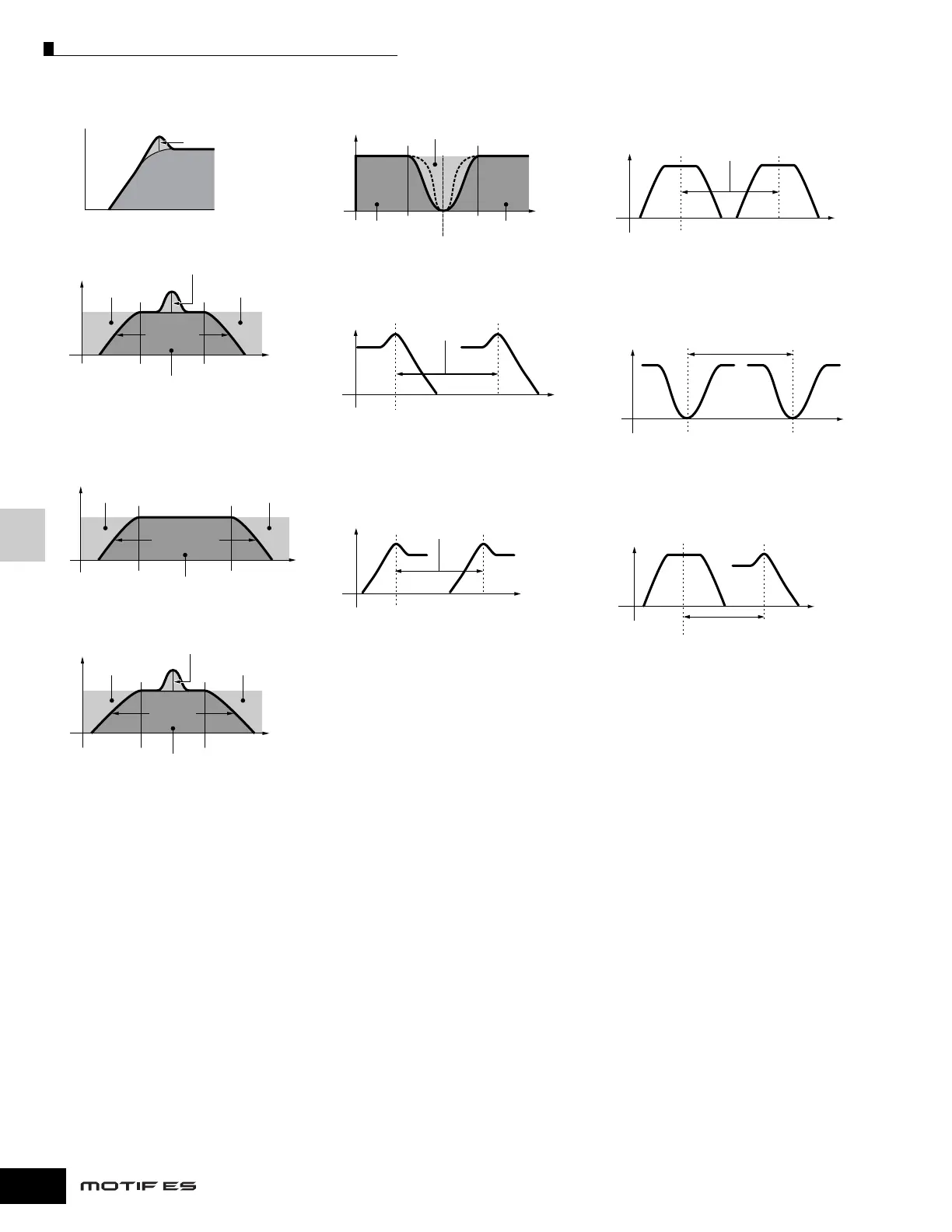

HPF12 (12dB/oct High Pass Filter)
12dB/oct dynamic high-pass filter.
BPF12D (12dB/oct Digital Band Pass Filter)
BPFw (Wide Band Pass Filter)
A 12dB/oct BPF that combines HPF and LPF filters
to allow wider bandwidth settings.
BPF6 (6dB/oct Band Pass Filter)
BEF12 (12dB/oct Band Elimination Filter)
BEF6 (6dB/oct Band Elimination Filter)
Dual LPF (Dual Low Pass Filter)
Two 12dB/oct low-pass filters connected in parallel.
Dual HPF (Dual High Pass Filter)
Two 12dB/oct high-pass filters connected in
parallel.
Dual BPF (Dual Band Pass Filter)
Two 6dB/oct band-pass filters connected in
parallel.
Dual BEF (Dual Band Elimination Filter)
Two 6dB/oct band-elimination filters connected in
serial.
LPF12 + BPF6 (12dB/oct Low Pass Filter + 6dB/
oct Band Pass Filter)
A combined low-pass and high-pass filter.
thru
The filters are bypassed and the entire signal is
unaffected.
Resonance
12db/oct
Resonance
Cutoff range
Cutoff range
Range passed
Level
Frequency
Width can be
increased
Cutoff range
Cutoff range
Range passed
Level
Frequency
6db/oct
Resonance
Cutoff range
Cutoff range
Range passed
Level
Frequency
Cutoff range
Range passed
Level
Frequency
Range passed
Center frequency
Level
Frequency
Distance
The lower cutoff frequency is set
directly on the display.
Level
Frequency
Distance
The lower cutoff frequency is set
directly on the display.
Level
Frequency
Distance
The lower cutoff frequency is set
directly on the display.
Level
Frequency
Distance
The lower cutoff frequency is set
directly on the display.
Level
Frequency
Distance
The lower cutoff frequency is set
directly on the display.

Yamaha MOTIF ES6 Specifications

General

Keyboard	61 keys, Initial Touch/Aftertouch
Polyphony	128 notes
Display	240 x 64 dot backlit LCD
Wave ROM	175MB (when converted to 16-bit linear format)
Sequencer	16 Tracks, Approx. 226, 000 notes
Arpeggiator	1, 787 types
Connectors	MIDI In/Out/Thru, USB, Foot Controller, Foot Switch
Power Supply	AC Adaptor (PA-300 or an equivalent recommended by Yamaha)
Storage	SmartMedia
User Voices	128 normal voices + 32 drum kits
