Setting Up
Connections
32
Owner’s Manual
The following settings can be made from the parameter pages listed above.
* Available only when the optional AIEB2 board or mLAN16E board has been installed.
** Available only when the optional mLAN16E board has been installed.

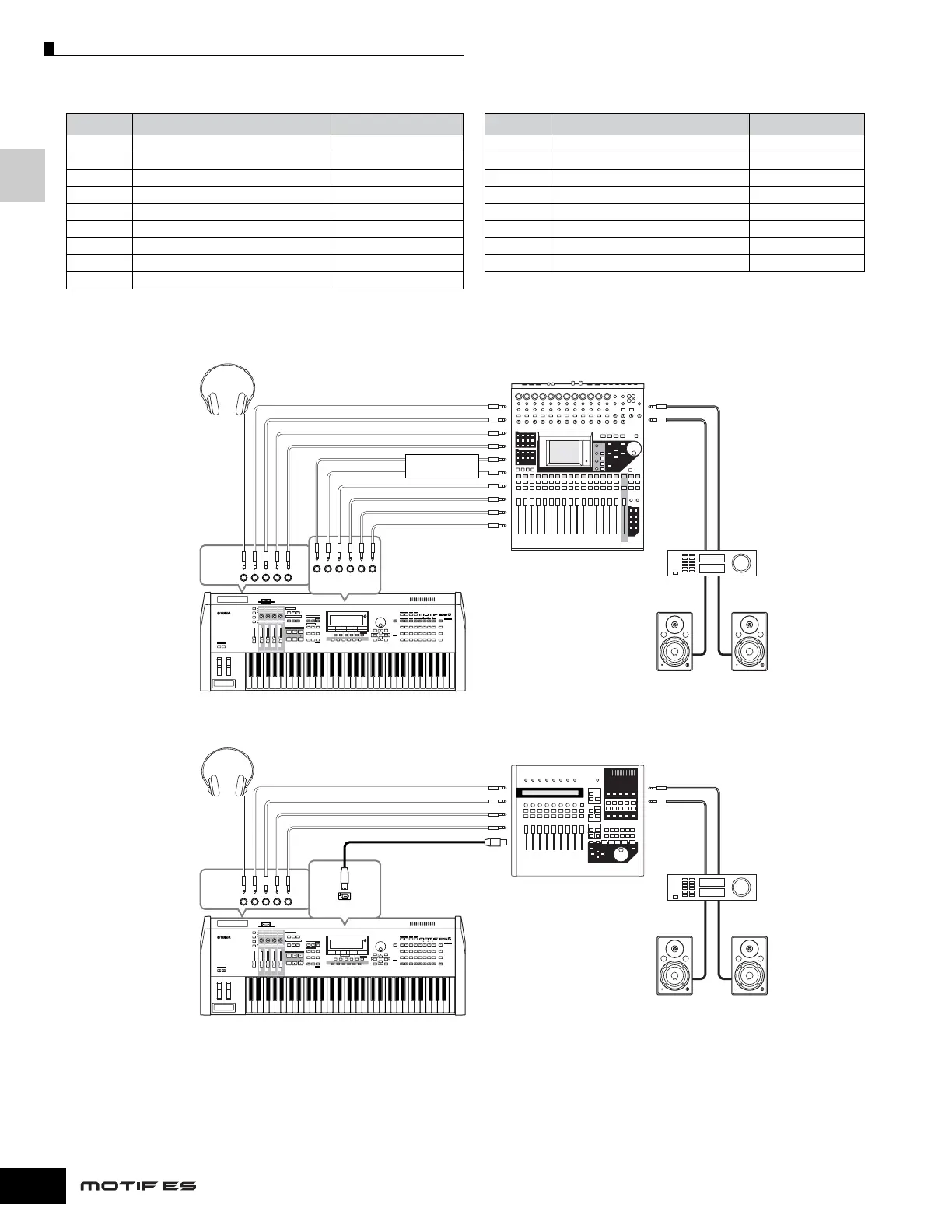

Connection example when the optional AIEB2 board has been installed (analog output)
Connection example when the optional mLAN16E board has been installed (analog and digital output)
n About the main output jacks and the Assignable Output jacks
• Connecting a set of headphones to the PHONES jack does not affect the sound output from the OUTPUT L/MONO and R jacks. The sound monitored
through the headphones is identical to the sound of the OUTPUT L/MONO and R jacks.
• Any parts assigned to the ASSIGNABLE OUTPUT jacks (including those of the optional AIEB2 interface or mLAN16E interface) will not be output through
the OUTPUT L/MONO and R jacks or PHONES jack.
• The System Effects (Reverb, Chorus), the Master EQ, and the Master Effect are not applied to the sound output through the ASSIGNABLE OUTPUT jacks
(including those of the optional AIEB2 interface or mLAN16E interface). (Only the Part EQ and the Insertion Effect are applied.)
LCD Output jacks Stereo/Mono LCD Output jacks Stereo/Mono
L&R OUTPUT L and R Stereo asL ASSIGNABLE OUTPUT L Mono
asL&R ASSIGNABLE OUTPUT L and R Stereo asR ASSIGNABLE OUTPUT R Mono
as1&2 ASSIGNABLE OUTPUT 1 and 2 Stereo (1: L, 2: R) * as1 ASSIGNABLE OUTPUT 1 Mono *
as3&4 ASSIGNABLE OUTPUT 3 and 4 Stereo (3: L, 4: R) * : : :
as5&6 ASSIGNABLE OUTPUT 5 and 6 Stereo (5: L, 6: R) * as6 ASSIGNABLE OUTPUT 6 Mono *
as7&8 ASSIGNABLE OUTPUT 7 and 8 Stereo (7: L, 8: R) ** as7 ASSIGNABLE OUTPUT 7 Mono **
as9&10 ASSIGNABLE OUTPUT 9 and 10 Stereo (9: L, 10: R) ** : : :
as11&12 ASSIGNABLE OUTPUT 11and 12 Stereo (11: L, 12: R) ** as14 ASSIGNABLE OUTPUT 14 Mono **
as13&14 ASSIGNABLE OUTPUT 13 and 14 Stereo (13: L, 14: R) **
ASSIGNABLE OUTPUT R
ASSIGNABLE OUTPUT L
OUTPUT R
OUTPUT L/MONO
MUSIC PRODUCTION SYNTHESIZER
MOTIF ES
AIEB2
OUTPUT L
OUTPUT R
Pro R3
Headphones
PHONE jack
Mixer Amplifier
Speaker
(Left)
Speaker
(Right)
ASSIGNABLE OUTPUT R
ASSIGNABLE OUTPUT L
OUTPUT R
OUTPUT L/MONO
MUSIC PRODUCTION SYNTHESIZER
MOTIF ES
mLAN16E
OUTPUT L
OUTPUT R
Headphones
PHONE jack
Mixer
Amplifier
Speaker
(Left)
Speaker
(Right)
IEEE1394 cable
To Next Page
