PERIODIC MAINTENANCE AND ADJUSTMENT
6-38
6
2. Lift the front wheel off the ground
according to the procedure in the
previous section “Supporting the
motorcycle”.
3. Remove the brake hose holder on
the left side by removing the bolt.
4. Remove the brake caliper on each
side by removing the bolts.
NOTICE: Do not apply the brake
after the brake calipers have
been removed, otherwise the
brake pads will be forced shut.
[ECA11052]
5. Pull the wheel axle out, and then
remove the wheel.
To install the front wheel
1. Lift the wheel up between the fork
legs.
2. Insert the wheel axle from the right
side.
3. Lower the front wheel so that it is
on the ground, and then put the
sidestand down.
4. Install the brake calipers by install-
ing the bolts.
Make sure that there is enough space
between the brake pads before install-
ing the brake calipers onto the brake
discs.
5. Install the brake hose holder by in-
stalling the bolt.
6. Tighten the brake caliper bolts and
the brake hose holder bolt to the
specified torques.
7. Tighten the wheel axle, and then
the wheel axle pinch bolt to the
specified torques.

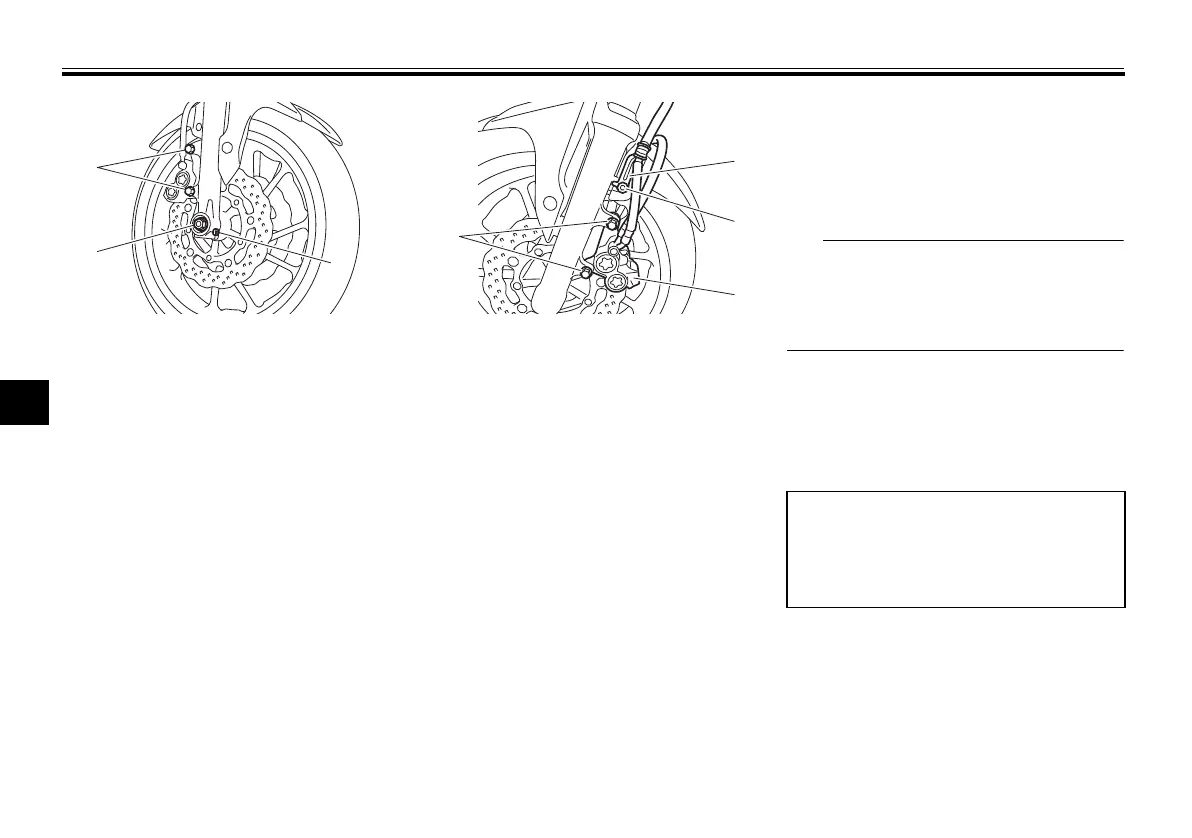

1. Front wheel axle pinch bolt
2. Wheel axle
3. Brake caliper bolt
1. Brake hose holder
2. Bolt
3. Brake caliper
4. Brake caliper bolt
Tightening torques:
Brake caliper bolt:
40 Nm (4.0 m·kgf, 29 ft·lbf)
Brake hose holder bolt:
7 Nm (0.7 m·kgf, 5.1 ft·lbf)
U1WSE2E0.book Page 38 Tuesday, October 7, 2014 9:17 AM
