Yamaha MT07M - Seats

Instrument and control functions
4-17
4
EAU83850

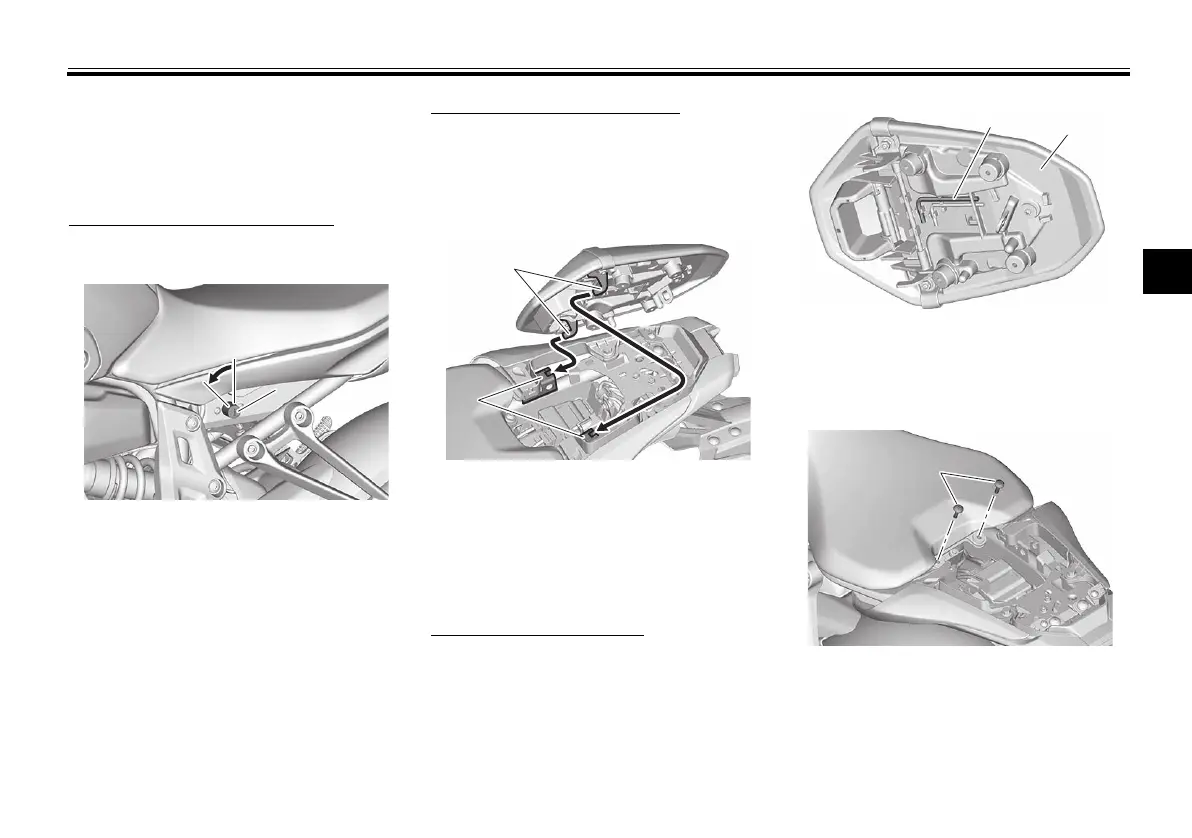

Seats
Passenger seat
To remove the passenger seat
1. Insert the key into the seat lock,
and then turn it counterclockwise.
2. While holding the key in that posi-
tion, lift the rear of the passenger
seat and pull it backward.
To install the passenger seat
1. Insert the projections on the front
of the passenger seat into the seat
holders as shown, and then push
the rear of the seat down to lock it
in place.
2. Remove the key.
Rider seat
To remove the rider seat
1. Remove the passenger seat, and
then remove the hexagon wrench
located on the bottom of the seat.
2. Remove the bolts with the hexa-
gon wrench.
3. Lift the seat rearward and up to re-
move it.
1. Seat lock
2. Unlock.
111
22
1. Projection
2. Seat holder
222
1
1. Passenger seat
2. Hexagon wrench
1. Bolt
1
2
111
