Periodic maintenance and adjustment
8-13
1
2
3
4
5
6
7
8
9
10
11
12
An oil filter wrench is available at a
Yamaha dealer.
5. Apply a thin coat of clean engine
oil to the O-ring of the new oil filter
cartridge.
Make sure that the O-ring is properly
seated.
6. Install the new oil filter cartridge,
and then tighten to the specified
torque.
7. Install the engine oil drain bolt with
a new gasket, and then tighten the
bolt to the specified torque.
8. Pour the specified amount of the
recommended oil into the crank-
case.
Using a funnel is recommended.
9. After checking the engine oil filler
cap O-ring, install the filler cap.
Wipe off any spilled oil before starting
the engine.
10. Start the engine and let it idle while
checking for oil leaks.
If any oil leaks are found which you
cannot fix, have the vehicle inspected.

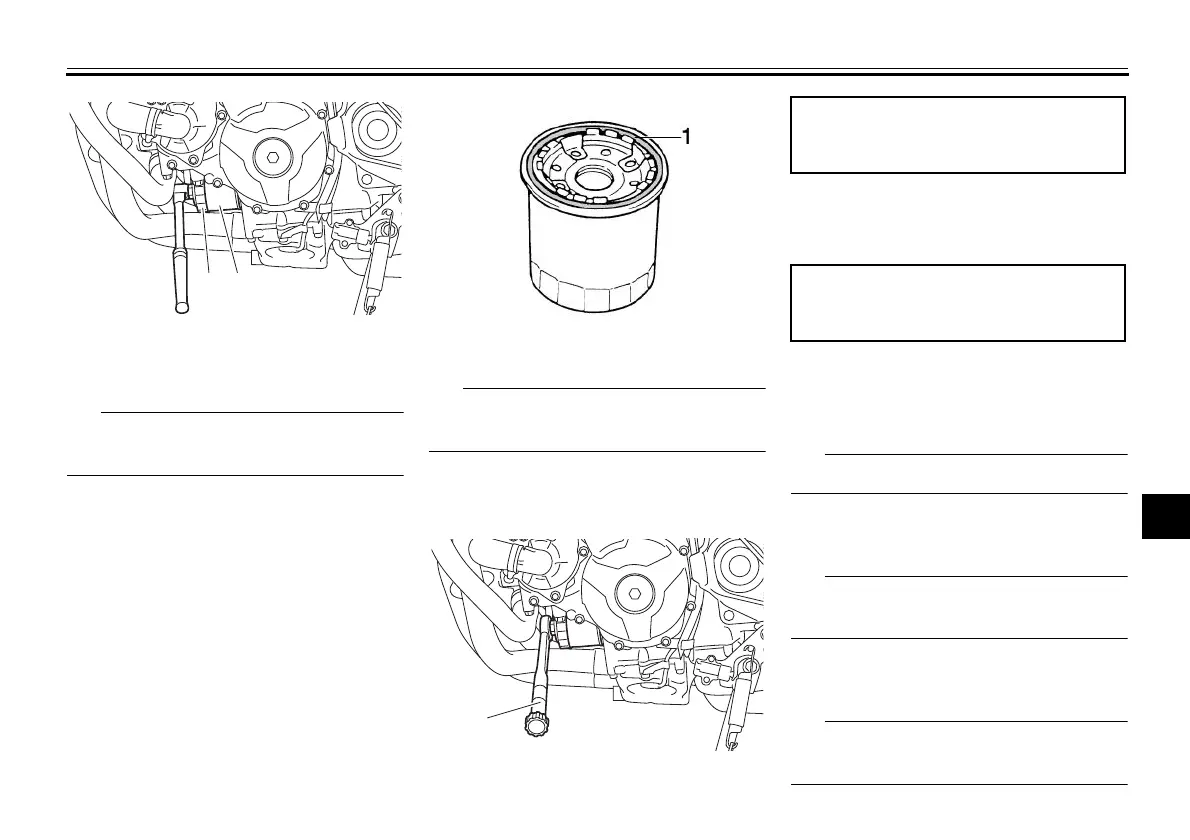

1. Oil filter wrench
2. Oil filter cartridge
1. O-ring
1. Torque wrench
Tightening torque:
Oil filter cartridge:
17 N·m (1.7 kgf·m, 13 lb·ft)
Tightening torque:
Engine oil drain bolt:
43 N·m (4.3 kgf·m, 32 lb·ft)
