THE CONTROLS OF THE MU90
How to Use This Manual 7
ENGLISH
The Controls of the MU90

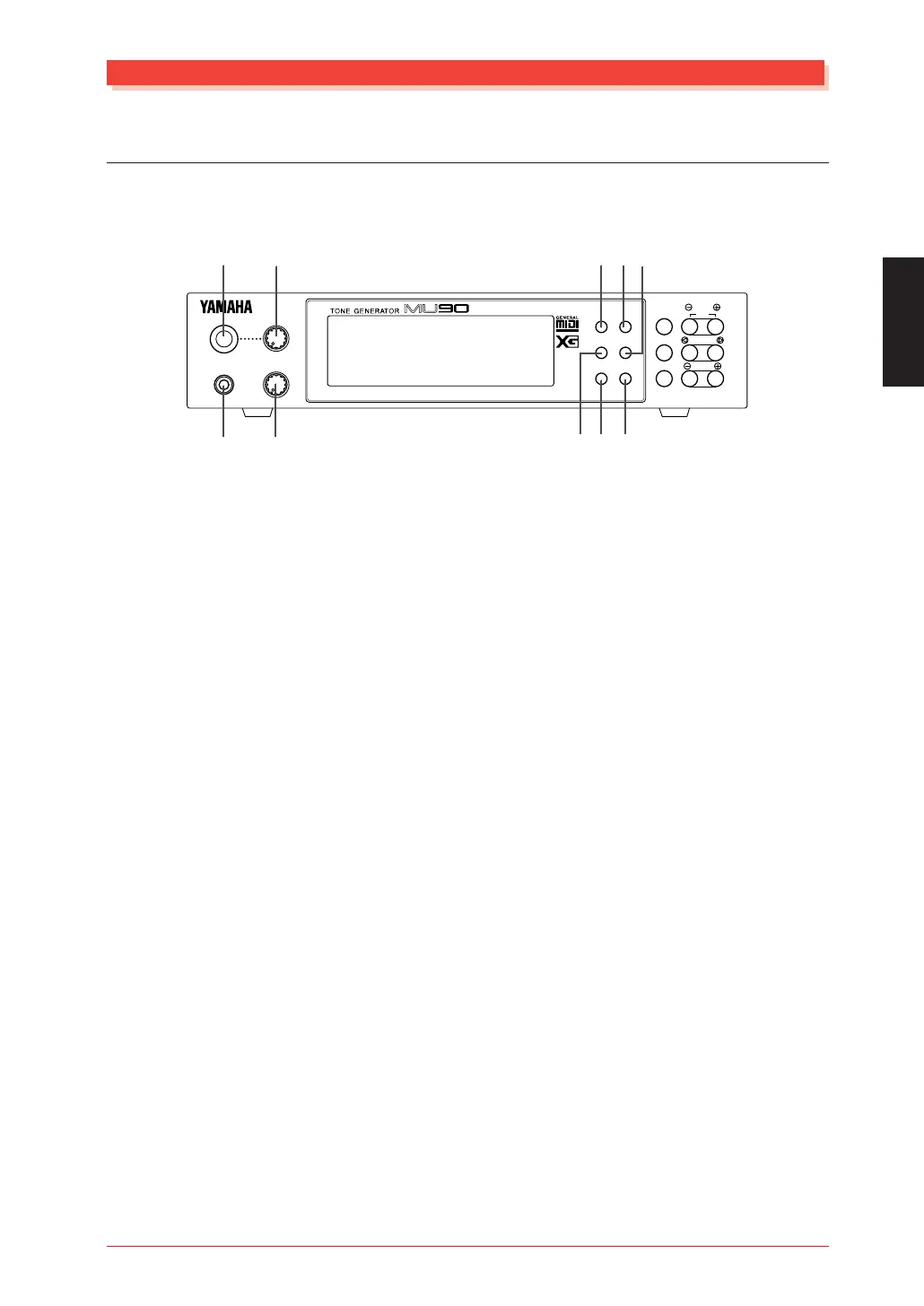

Front Panel
1 PHONES jack
For connection to a set of stereo headphones (mini-pin).
2 POWER/VOL control
Controls the power off/on functions as well as adjusts the overall volume of the
MU90.
3 A/D INPUT
For connection of a microphone, electric guitar or other electronic instrument
(stereo 1/4” plug).
4 A/D INPUT level control
For control of the level of the A/D input.
5 PLAY button
For entering the Play mode and switching among the different Play displays.
(See page 39 of the MU90R User’s Manual.)
6 UTIL (UTILITY) button
For entering the Utility mode. (See page 114 of the MU90R User’s Manual.)
7 MODE button
For entering the Sound Module mode. (See page 126 of the MU90R User’s
Manual.)
8 EDIT button
For entering the Edit mode. (See pages 49 and 89 of the MU90R User’s Manual.)
9 EFFECT button
For entering the Effect Edit mode. (See page 101 of the MU90R User’s Manual.)
0 EQ button
For entering the EQ Edit mode. (See page 112 of the MU90R User’s Manual.)
A/D
INPUT
PHONES POWER/VOL
PUSH ON/OFF
PART MIDI BANK/PGM# VOL EXP PAN REV CHO VAR KEY
XG
TG300B
C/M
PERFORM
PLAY EDIT
UTIL EFFECT
MODE EQ
MUTE/
SOLO
ENTER
EXIT
PART
SELECT
VALUE
ALL
1
3
2
4
58
7
9
60
