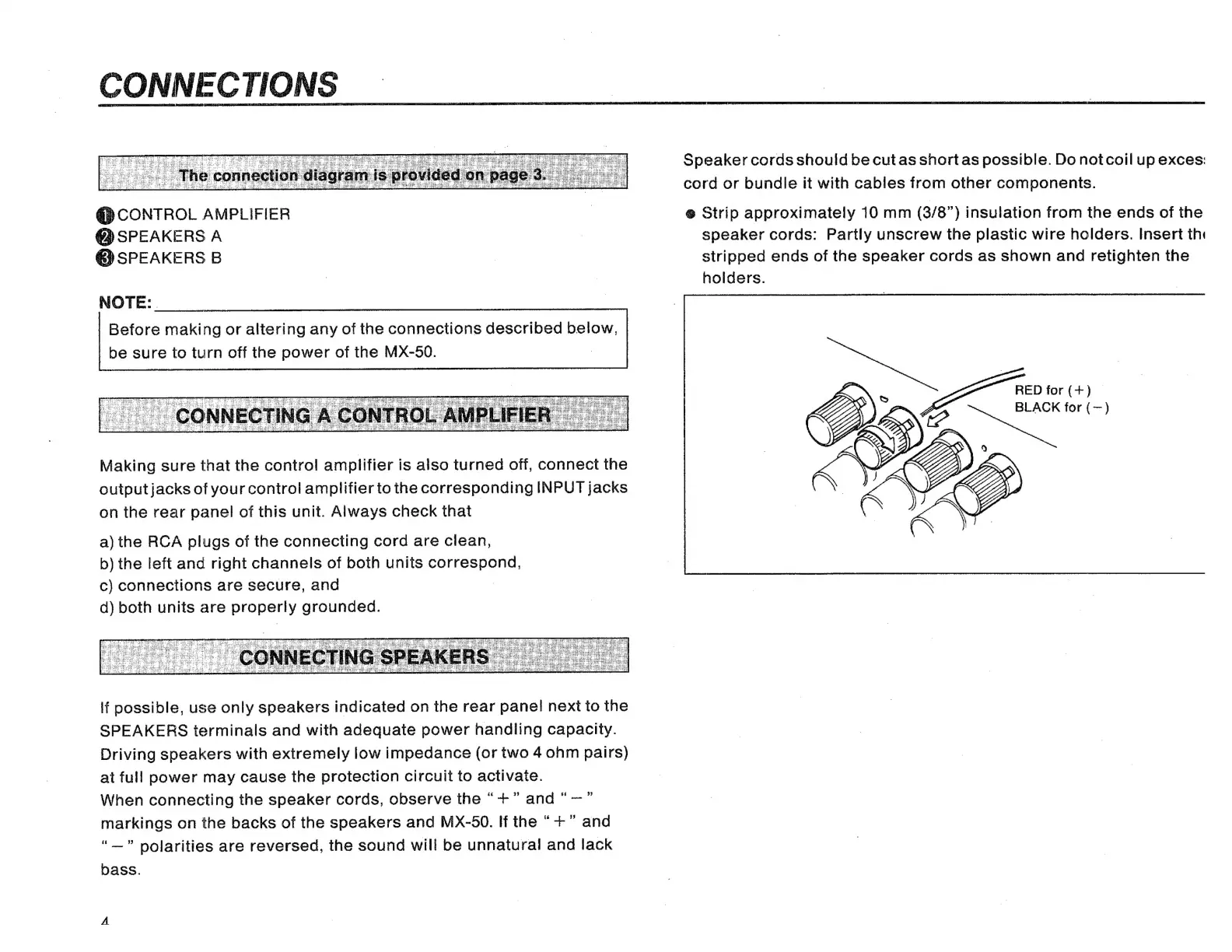

CONNECTIONS
`
@ CONTROL AMPLIFIER
@ SPEAKERS A
@ SPEAKERS B
NOTE: |
Before making or altering any of the connections described below,
be sure to turn off the power of the MX-50.
Making sure that the control amplifier is also turned off, connect the
output jacks of your control amplifier to the corresponding INPUT jacks
on the rear panel of this unit. Always check that
a) the RCA plugs of the connecting cord are clean,
b) the left and right channels of both units correspond,
c) connections are secure, and
d) both units are properly grounded.
if possible, use only speakers indicated on the rear panel next to the
SPEAKERS terminals and with adequate power handling capacity.
Driving speakers with extremely low impedance (or two 4 ohm pairs)
at full power may cause the protection circuit to activate.
When connecting the speaker cords, observe the “+” and “—”
markings on the backs of the speakers and MX-50. If the “+” and
“_” polarities are reversed, the sound will be unnatural and lack
bass.
Speaker cords should be cut as short as possible. Do notcoil up exces:
cord or bundle it with cables from other components.
e Strip approximately 10 mm (3/8”) insulation from the ends of the
speaker cords: Partly unscrew the plastic wire holders. Insert th:
stripped ends of the speaker cords as shown and retighten the
holders.
RED for (+)
s BLACK for (—)
