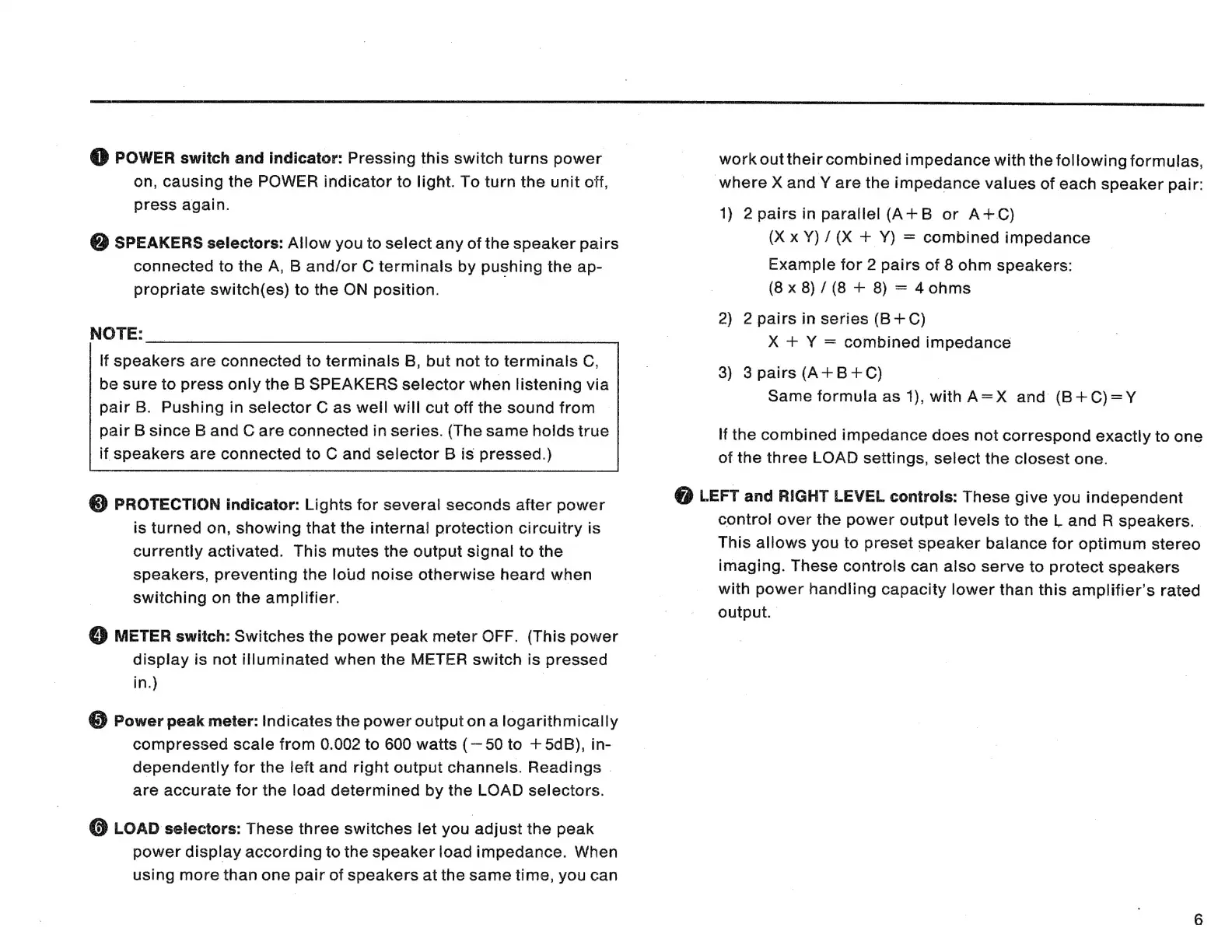

POWER
switch
and
indicator:
Pressing
this
switch
turns
power
on,
causing
the
POWER
indicator
to
light.
To
turn
the
unit
off,
press
again.
@)
SPEAKERS
selectors:
Allow
you
to
select
any
of
the
speaker
pairs
connected
to
the
A,
B
and/or
C
terminals
by
pushing
the
ap-
propriate
switch(es)
to
the
ON
position.
NOTE:
If
speakers
are
connected
to
terminals
B,
but
not
to
terminals
C,
be
sure
to
press
only
the
B
SPEAKERS
selector
when
listening
via
pair
B.
Pushing
in
selector
C
as
well
will
cut
off
the
sound
from
pair
B
since
B
and
C
are
connected
in
series.
(The
same
holds
true
if
speakers
are
connected
to
C
and
selector
B
is
pressed.)
@
PROTECTION
indicator:
Lights
for
several
seconds
after
power
is
turned
on,
showing
that
the
internal
protection
circuitry
is
currently
activated.
This
mutes
the
output
signal
to
the
speakers,
preventing
the
loud
noise
otherwise
heard
when
switching
on
the
amplifier.
|
@
METER
switch:
Switches
the
power
peak
meter
OFF.
(This
power
display
is
not
illuminated
when
the
METER
switch
is
pressed
in.)
|
@
Power
peak
meter:
Indicates
the
power
output
on
a
logarithmically
compressed
scale
from
0.002
to
600
watts
(—
50
to
+
5dB),
in-
dependently
for
the
left
and
right
output
channels.
Readings
`
are
accurate
for
the
load
determined
by
the
LOAD
selectors.
@
LOAD
selectors:
These
three
switches
let
you
adjust
the
peak
power
display
according
to
the
speaker
load
impedance.
When
using
more
than
one
pair
of
speakers
at
the
same
time,
you
can
work
out
their
combined
impedance
with
the
following
formulas,
where
X
and
Y
are
the
impedance
values
of
each
speaker
pair:
1)
2
pairs
in
parallel
(A+B
or
A+C)
(X
x
Y)
/
(X
+
Y)
=
combined
impedance
Example
for
2
pairs
of
8
ohm
speakers:
(8
x
8)
/
(8
+
8)
=
4
ohms
2)
2
pairs
in
series
(B
+
C)
X
+
Y
=
combined
impedance
3)
3
pairs
(A+B+C)
Same
formula
as
1),
with
A=X
and
(B+
C)=
Y
lf
the
combined
impedance
does
not
correspond
exactly
to
one
of
the
three
LOAD
seitings,
select
the
closest
one.
@
LEFT
and
RIGHT
LEVEL
controls:
These
give
you
independent
control
over
the
power
output
levels
to
the
L
and
R
speakers.
This
allows
you
to
preset
speaker
balance
for
optimum
stereo
imaging.
These
controls
can
also
serve
to
protect
speakers
with
power
handling
capacity
lower
than
this
amplifier’s
rated
output.
