SERVICE TIP
Model : MX825V-EFI
22
The equipment manufacturer supplies the following components,
including wiring and connectors as needed:
1. Battery
2. Main Switch
3. MIL lamp
4. Oil Pressure Warning lamp
5. ‘Ground to Stop Engine’ circuit
(e.g., seat switch or rollover
switch, etc.)
6. Male-side multi-connector to connect to engine harness
(TE Connectivity* 350715-1), and terminals
(TE Connectivity* 350547-1)
Multi-connector Key:
(Wire color codes may vary by manufacturer.)
1. MIL – Brown wire, ground for the MIL lamp circuit
2. Engine Stop – White - ground ignition to stop engine
3. Not used
4. Starter – Brown/Green – energizes the starter motor
solenoid
5. Oil Pressure Warning - ground for the Oil Pressure Warning
light circuit
6. Ignition (key on) – Red/Blue – battery voltage to ECU and
other 12V components
* Previously known as Tyco.

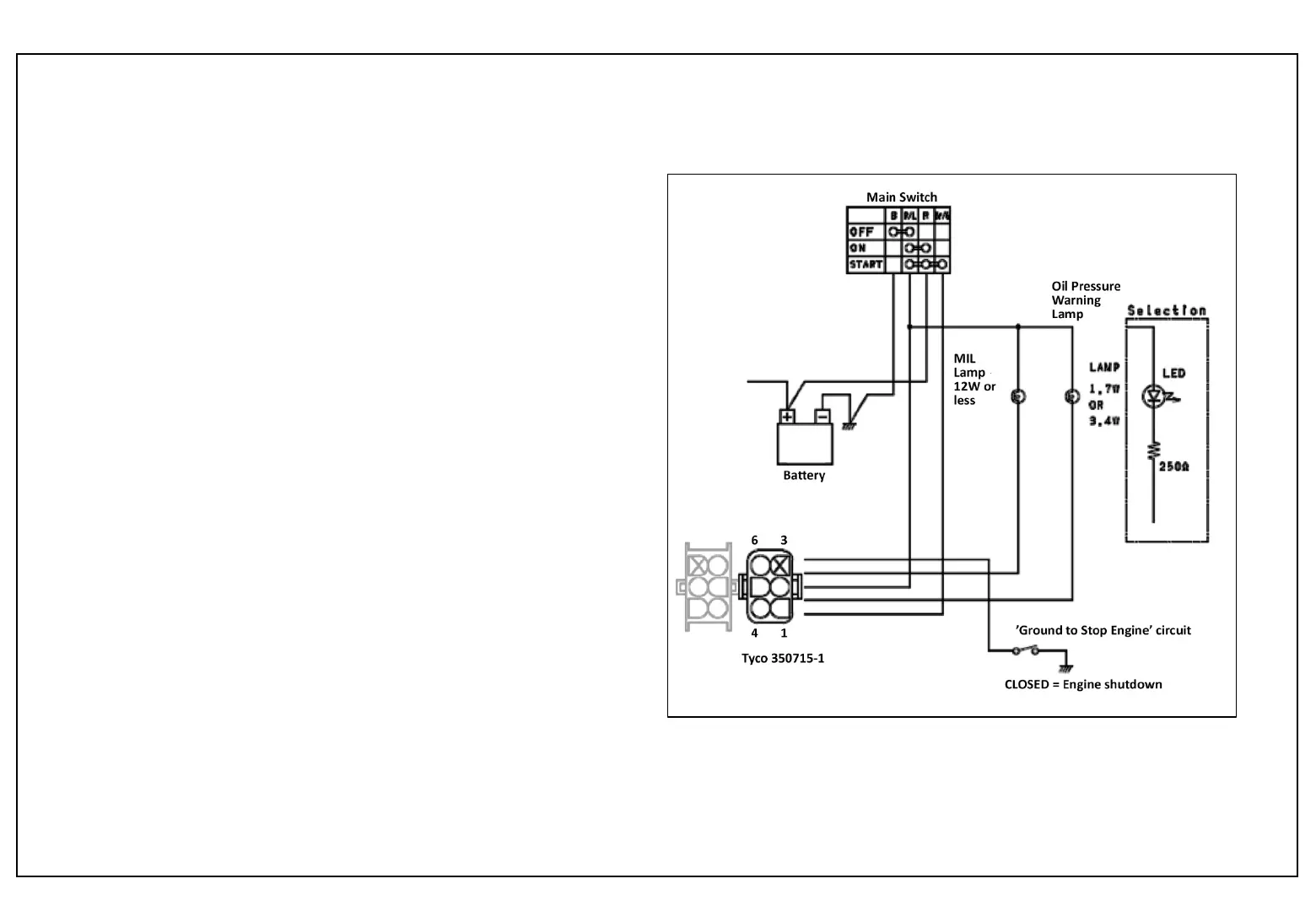

Wiring Schematic – Equipment Information
