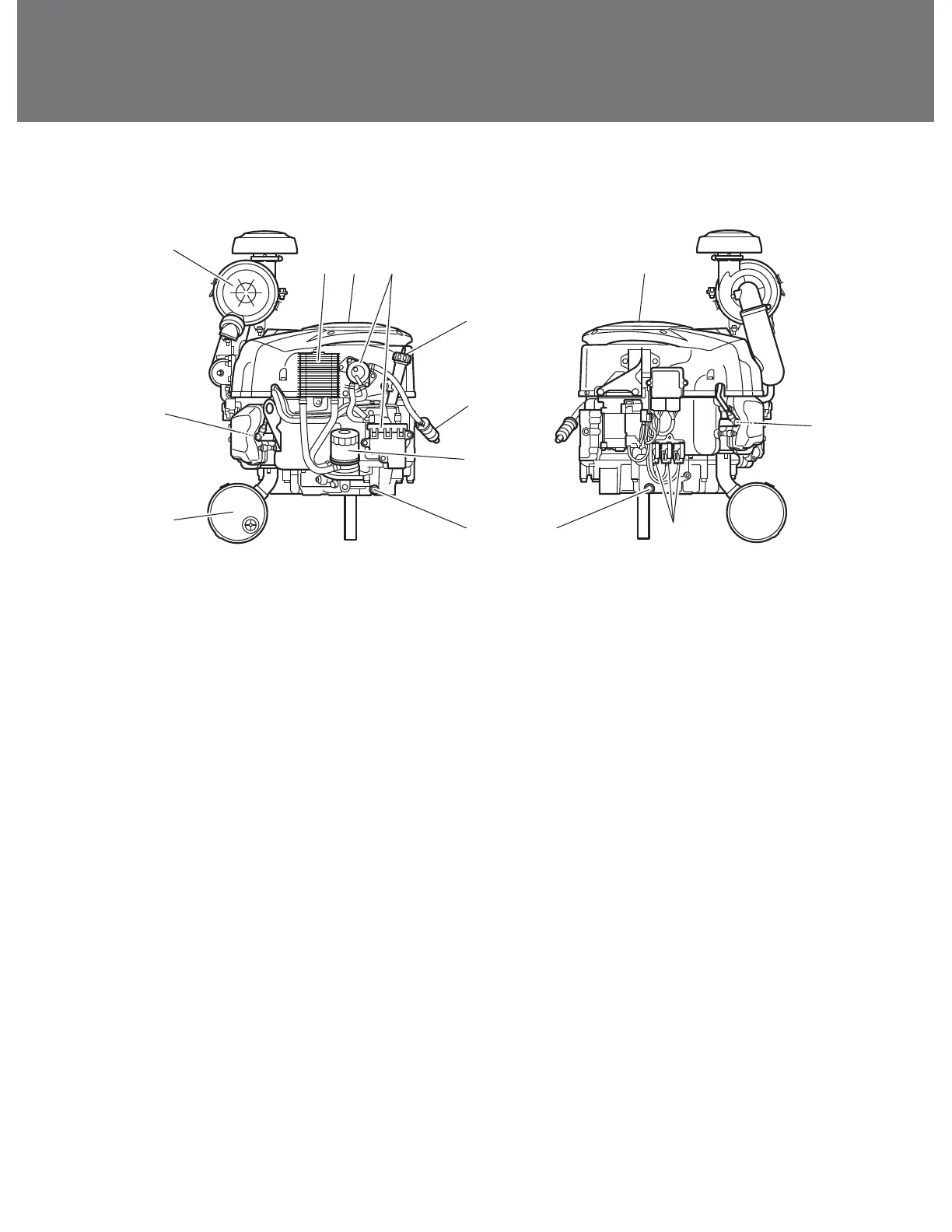

Controls and features
Description
General view
1 Spark plug 7 Fuel filter
2 Air filter case cover 8 Oil filter cartridge
3 Oil cooler 9 Oil drain bolt
4 Shroud 10 Muffler
(For models equipped with a muffler)
5 Fuel pump 11 Fuse
6 Oil filler cap
1
10
2
6
3
8
9
9
11
1
4 5
7
4
