ELECTRICAL
ELECTRICAL COMPONENTS
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼

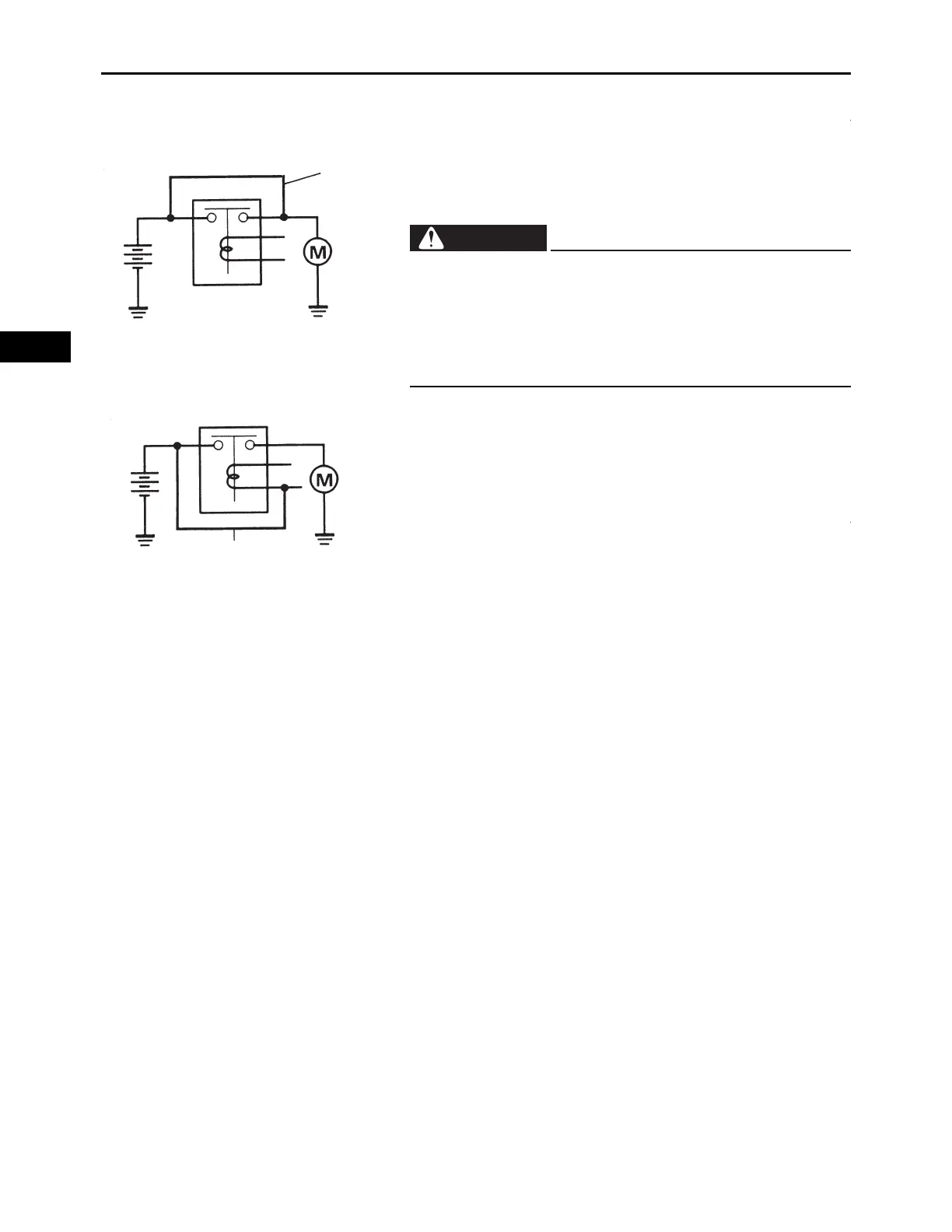

a. Connect the jumper lead “1” to the starter relay ter-
minals on the battery side and the starter motor
side.
b. Check the starter motor operation.
c. Disconnect the main switch coupler.
d. Connect the jumper lead “1” to the starter relay
coupler.
e. Check the starter motor operation.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
• A wire that is used as a jumper lead must have at
least the same capacity of the battery lead, other-
wise the jumper lead may burn.
• This check is likely to produce sparks, therefore,
make sure no flammable gas or fluid is in the vicin-
ity.
