Yamaha MX825V - Tci Units, Flywheel and Stator Coil Assembly; Tci Units

3-13
1
2
3
4
5
6
7
8
9
10
ENGINE

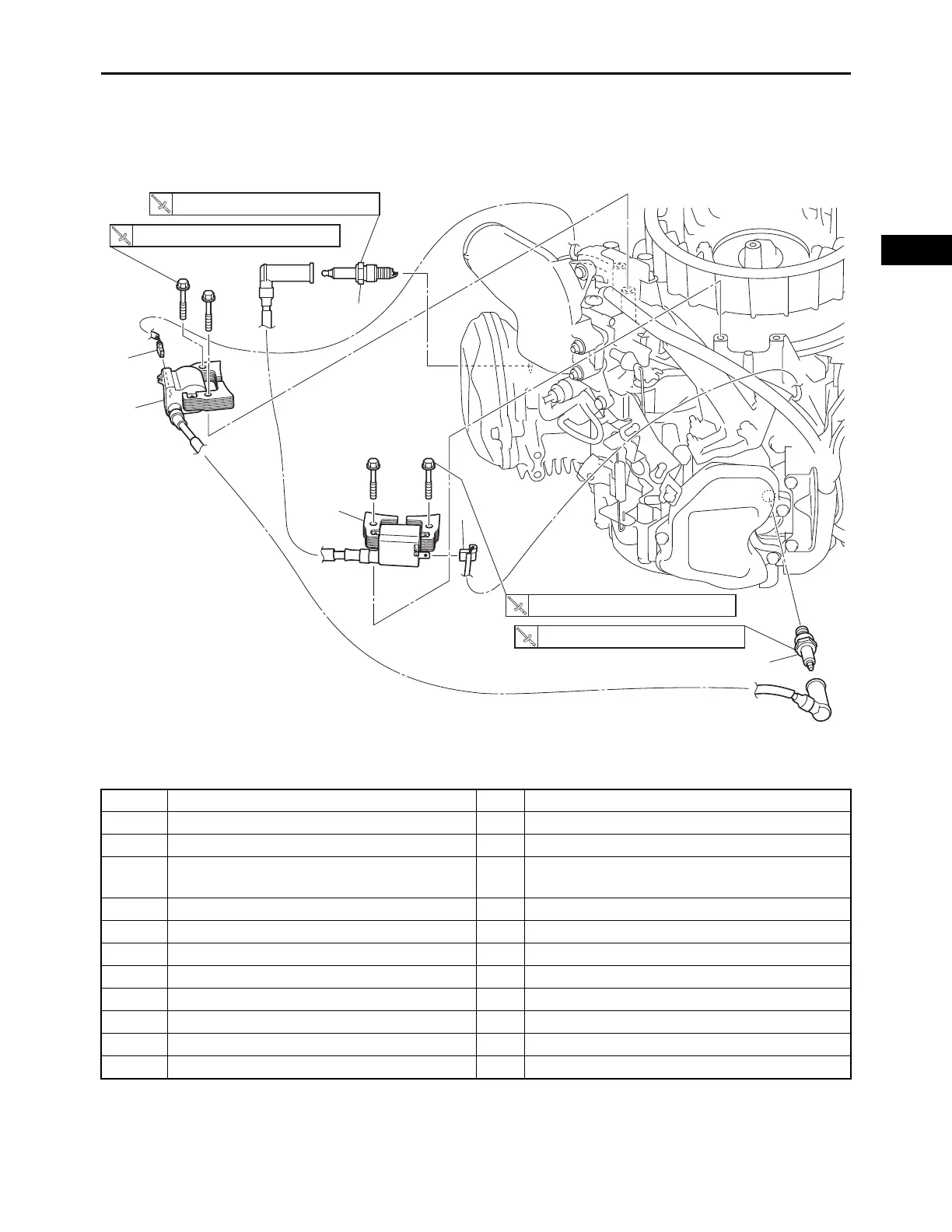

TCI UNITS, FLYWHEEL AND STATOR COIL ASSEMBLY
TCI UNITS, FLYWHEEL AND STATOR COIL ASSEMBLY
TCI UNITS
Order Job/Parts to remove Q’ty Remarks
Removing the TCI units Remove the parts in the order listed.
Air filter case Refer to “AIR FILTER” on page 3-3.
Rectifier/regulator
Refer to “RECTIFIER/REGULATOR” on page
3-8.
Fuel pump Refer to “FUEL PUMP” on page 4-1.
Oil cooler Refer to “OIL COOLER” on page 3-5.
Fan case Refer to “CASE AND FAN” on page 3-9.
1 TCI unit #1 lead connector 1 Disconnect.
2 TCI unit #2 lead connector 1 Disconnect.
3 TCI unit #1 1
4 TCI unit #2 1
5 Spark plug 2
20 N・m (2.0 kgf・m, 15 lb・ft)
5
20 N・m (2.0 kgf・m, 15 lb・ft)
5
4
3
1
2
10 N・m (1.0 kgf・m, 7.4 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
