Periodic maintenance and adjustment
6-32
6
EAU67300
Brake light
This model is equipped with an LED-
type brake light.
If the brake light does not come on,
have a Yamaha dealer check it.
EAU67310
Replacing the taillight bulb
1. Open the seat. (See page 3-15.)

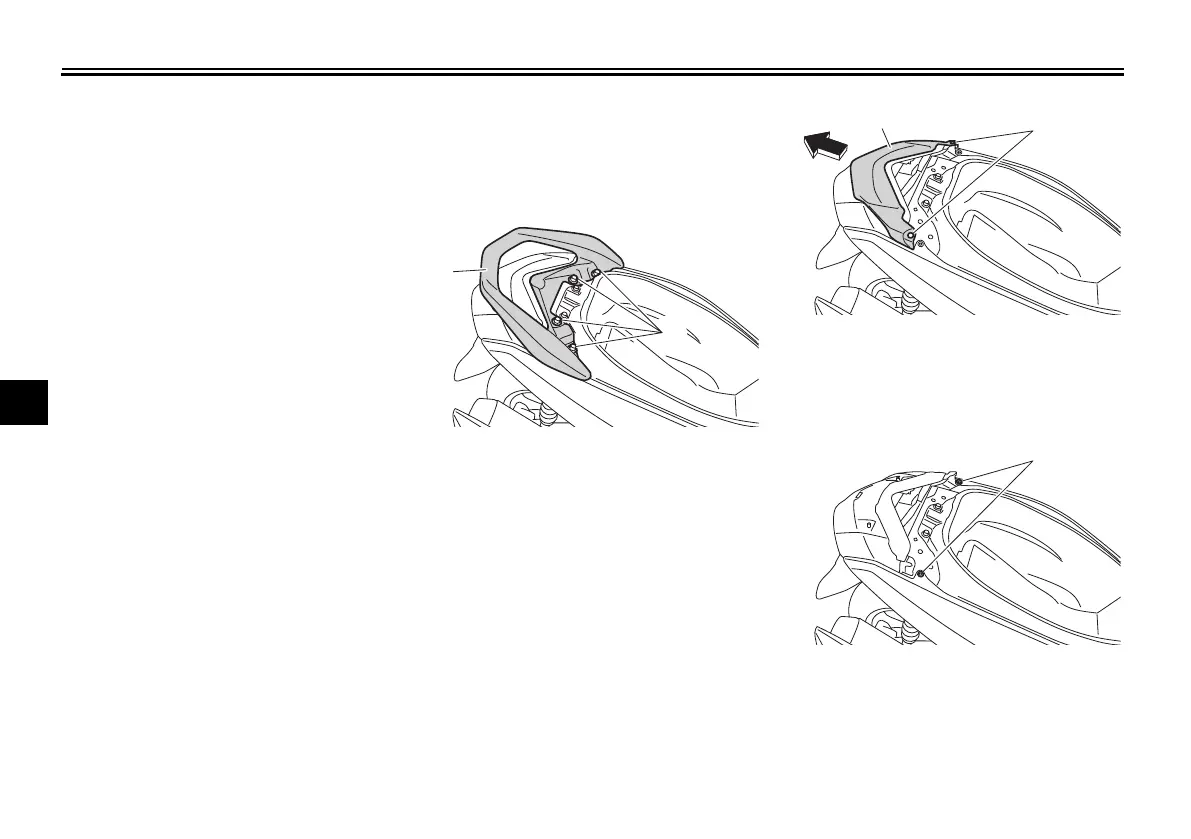

2. Remove the grab bar by removing
the bolts.
3. Remove the taillight cover by re-
moving the screws.
4. Remove the quick fasteners and
screws.
1. Grab bar
2. Bolt
1
2
1. Taillight cover
2. Screw
1. Quick fastener
1
2
1
