DRX-730/NX-E700

RS232C cross cable

RS232C conversion jig

Reset switch

Flexible flat cable 8P

Writing port

"STANDBY/ON" key

Rear side Front side

SW301

FLASH

UCOM

OTHER

●

Connection

1. Set the switch (SW301) of RS232C conversion adapter to the “FLASH UCOM” side.

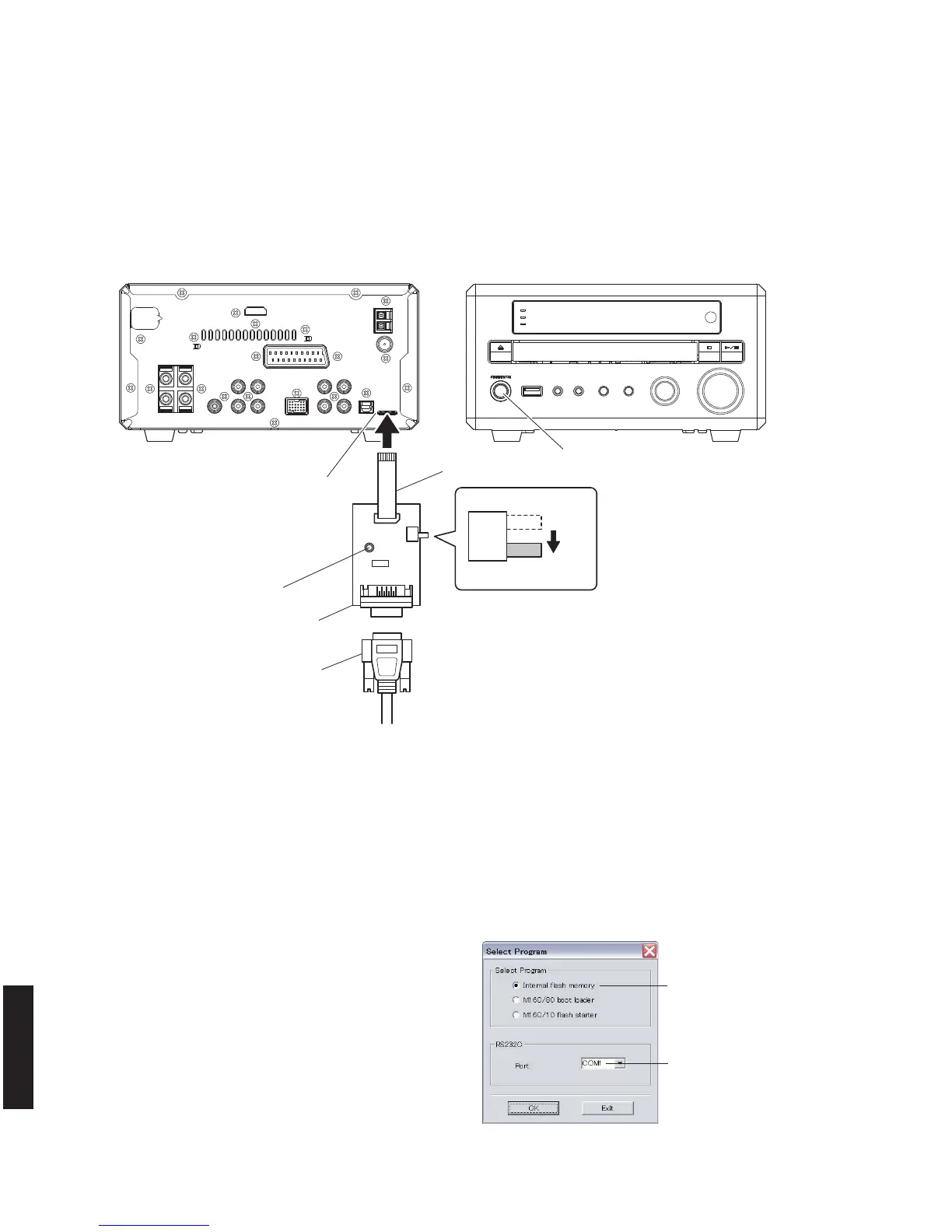

2. Connect the writing port of this unit to the serial port (RS232C) of the PC with RS232C cross cable, RS232C con-

version jig and flexible flat cable as shown below. (Fig. 1)

Fig. 1

●

Operation Procedures

1. Connect the power cable of this unit to the AC outlet.

2. While pressing the reset switch of RS232C conversion jig, press the “STANDBY/ON” key of this unit to turn on the

power. (Fig. 1)

3. Start up FlashSta.exe, the screen will appear as shown below. (Fig. 2)

Select Internal flash memory

Select the port of RS-232C

Fig. 2

4. Select the port and data to be transmitted. (Fig. 2)

• Select Program

Select Internal flash memory

• RS232C

Select the port of RS-232C

* For selection of the port, COM1 to 4 can be

used.

As COM5 or higher port cannot be used, se-

lect out of COM 1 to 4 of the setting on the PC

side.
