Yamaha QL1 Supplementary Manual

Input and output patching
V4.1 Supplementary Manual
12
Input and output patching

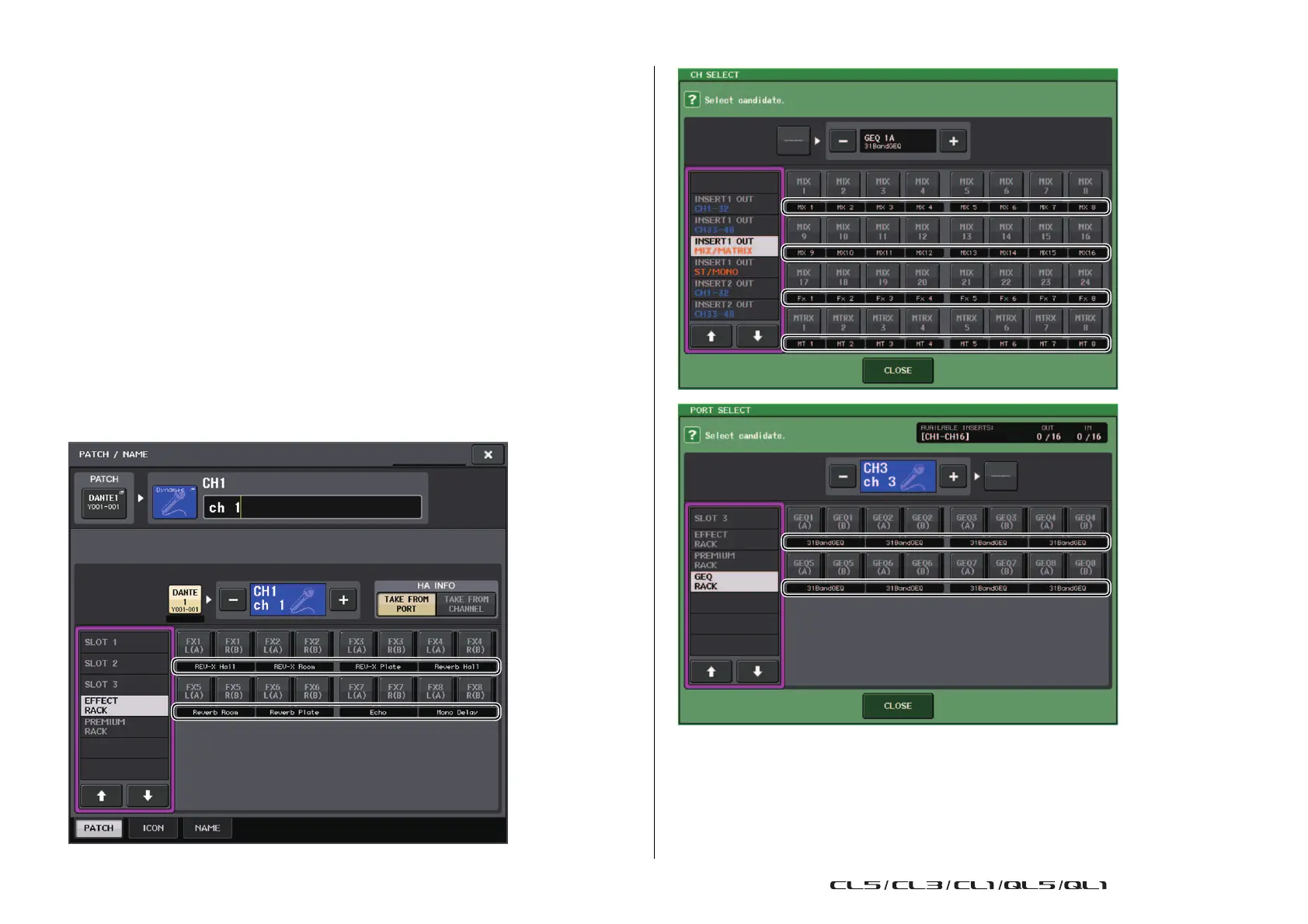

Added functions to display channel name and
effect type in the PATCH/NAME window, CH
SELECT window, and PORT SELECT window.
The channel name and effect type are now displayed below the channel select buttons and
port select buttons in the PATCH/NAME window, CH SELECT window, and PORT SELECT
window.
NOTE
In categories other than DANTE IN, channel labels cannot be set in Dante Controller for the
following buttons, and therefore they are not displayed.
• MONITOR button
• CUE button
• SURROUND MONITOR button
•SLOT button
• SEL CH button
• SEND MASTER button
•OMNI button
• INPUT button(QL only)

Yamaha QL1 Specifications

General

Channels quantity	40 channels
Digital sound processing	- bit
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	135 W
Product color	Black
Rack mounting	Yes
Video capability	-
Total Harmonic Distortion (THD)	0.05 %

Weight and Dimensions

Depth	562 mm
Width	468 mm
Height	272 mm
Weight	14700 g
