Yamaha R1 Series 2015 User Manual

FRONT WHEEL
4-24
EAS20028
FRONT WHEEL

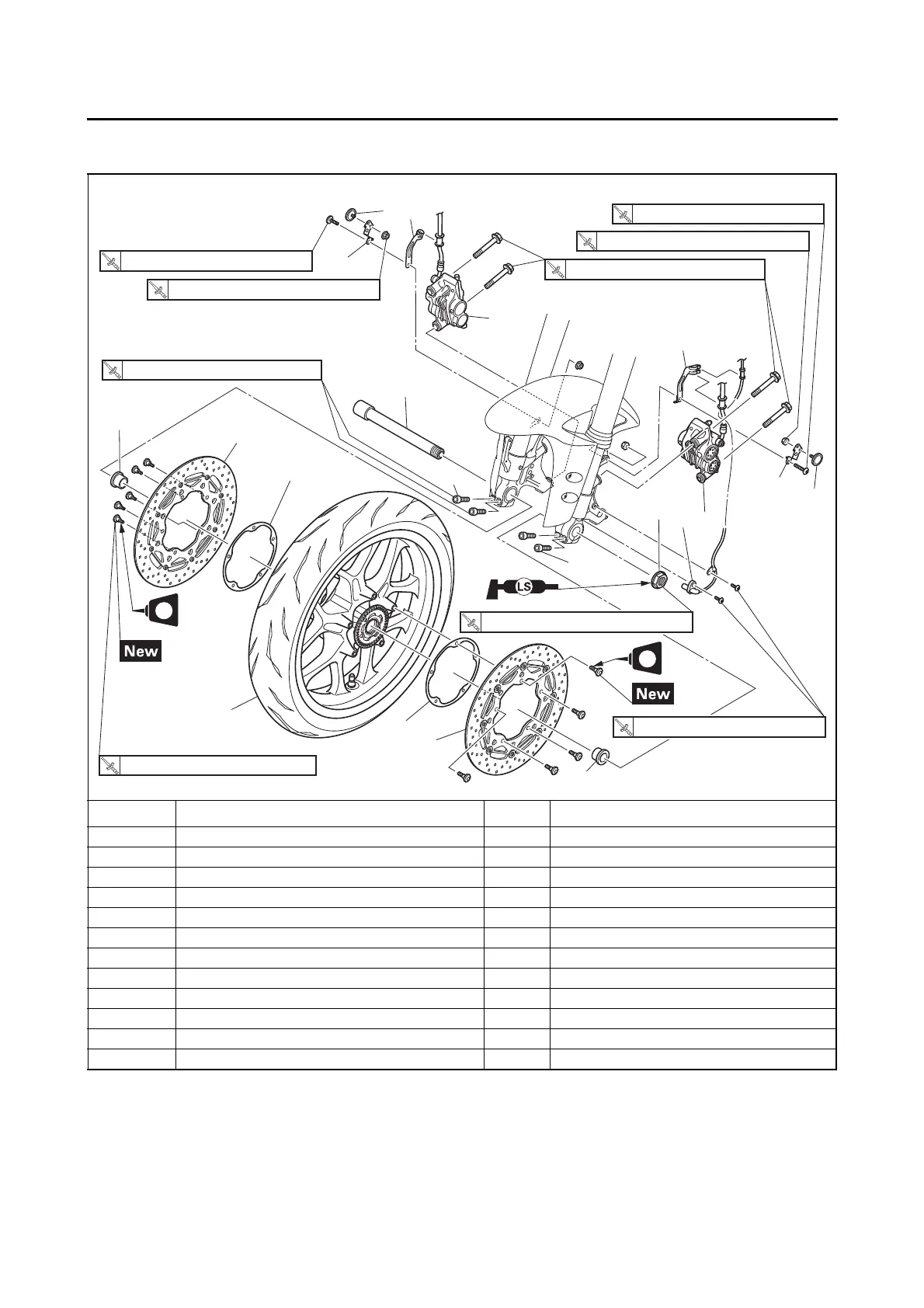

Removing the front wheel and brake discs (for YZF-R1)
Order Job/Parts to remove Q’ty Remarks
1Reflector bracket 2For AUS (2CR6, 2KS6)
2Reflector 2For AUS (2CR6, 2KS6)
3Front brake hose holder 2
4 Front wheel sensor 1
5Front brake caliper 2
6Wheel axle pinch bolt 4Loosen.
7Front wheel axle nut 1
8Front wheel axle 1
9Front wheel 1
10 Collar 2
11 Front brake disc 2
12 Plate 2
1
2
3
4
5
6
7
8
9
10
11
12
17 Nm (1.7 m • kgf, 12 ft • lbf)
6 Nm (0.6 m • kgf, 4.3 ft • Ibf)
6 Nm (0.6 m • kgf, 4.3 ft • Ibf)
LT
21 Nm (2.1 m • kgf, 15 ft • lbf)
35 Nm (3.5 m • kgf, 25 ft • lbf)
3.8 Nm (0.38 m • kgf, 2.8 ft • lbf)
3.8 Nm (0.38 m • kgf, 2.8 ft • lbf)
7 Nm (0.7 m • kgf, 5.1 ft • Ibf)
115 Nm (11.5 m • kgf, 83 ft • lbf)
11
12
10
6
1
23
5
LT

Yamaha R1 Series 2015 Specifications

General

Bore x Stroke	79.0mm x 50.9mm
Compression Ratio	13.0:1
Fuel System	Fuel injection with YCC-T and YCC-I
Ignition	TCI: Transistor Controlled Ignition
Transmission	6-speed; multiplate slipper clutch
Final Drive	Chain
Front Brakes	Dual 320mm hydraulic disc; ABS
Rear Brakes	220mm hydraulic disc; ABS
Front Tire	120/70ZR17
Rear Tire	190/55ZR17
Length	80.9 in
Width	27.2 in
Height	45.3 in
Seat Height	33.7 in
Wheelbase	55.3 in
Fuel Capacity	4.5 gal
Wet Weight	439 lb
Front Suspension	43mm inverted fork; fully adjustable
Rear Suspension	Single shock, fully adjustable; 4.7-in travel
Engine Type	998cc, liquid-cooled, DOHC 4-stroke, 4-valve
