REAR SHOCK ABSORBER ASSEMBLY
4-104
EAS20036

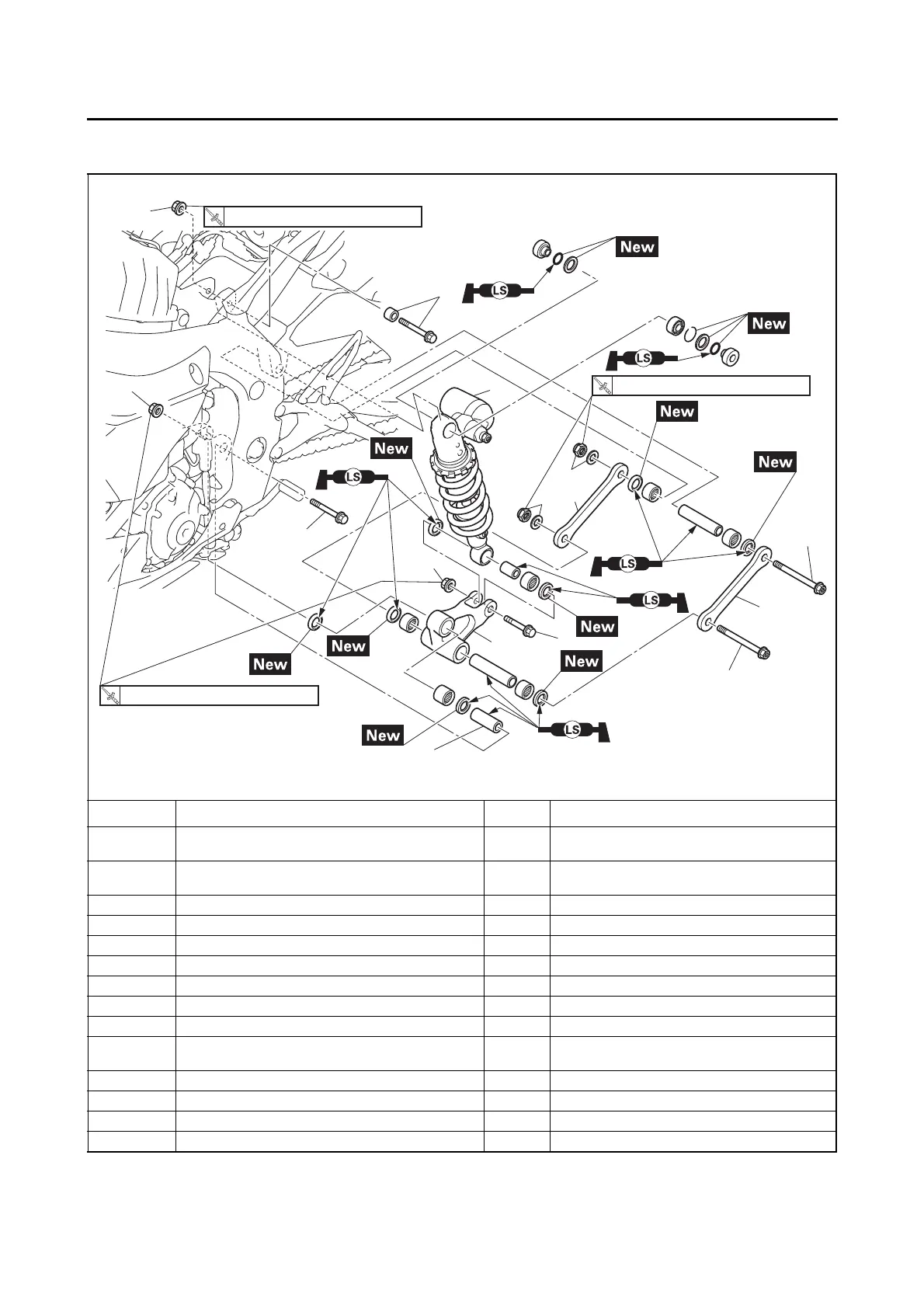

REAR SHOCK ABSORBER ASSEMBLY
Removing the rear shock absorber assembly (for YZF-R1)
Order Job/Parts to remove Q’ty Remarks
Rider seat
Refer to “GENERAL CHASSIS (1)” on page
4-1.
Fuel tank cover
Refer to “GENERAL CHASSIS (2)” on page
4-7.
Fuel tank Refer to “FUEL TANK” on page 7-1.
Rear brake caliper Refer to “REAR BRAKE” on page 4-55.
Rear wheel Refer to “REAR WHEEL” on page 4-34.
1Connecting arm upper nut/Washer/Bolt 1/1/1
2Rear shock absorber assembly lower nut/Bolt1/1
3Connecting arm lower nut/Washer/Bolt 1/1/1
4Connecting arm 2
5
Rear shock absorber assembly upper nut/Col-
lar/Bolt
1/1/1
6 Relay arm nut/Bolt 1/1
7Collar 1
8 Relay arm 1
9Rear shock absorber assembly 1
2
4
9
1
4
6
8
40 Nm (4.0 m • kgf, 29 ft • lbf)
40 Nm (4.0 m • kgf, 29 ft • lbf)
5
5
1
6
2
7
3
3
40 Nm (4.0 m • kgf, 29 ft • lbf)
