REAR BRAKE
4-55
EAS20031
REAR BRAKE

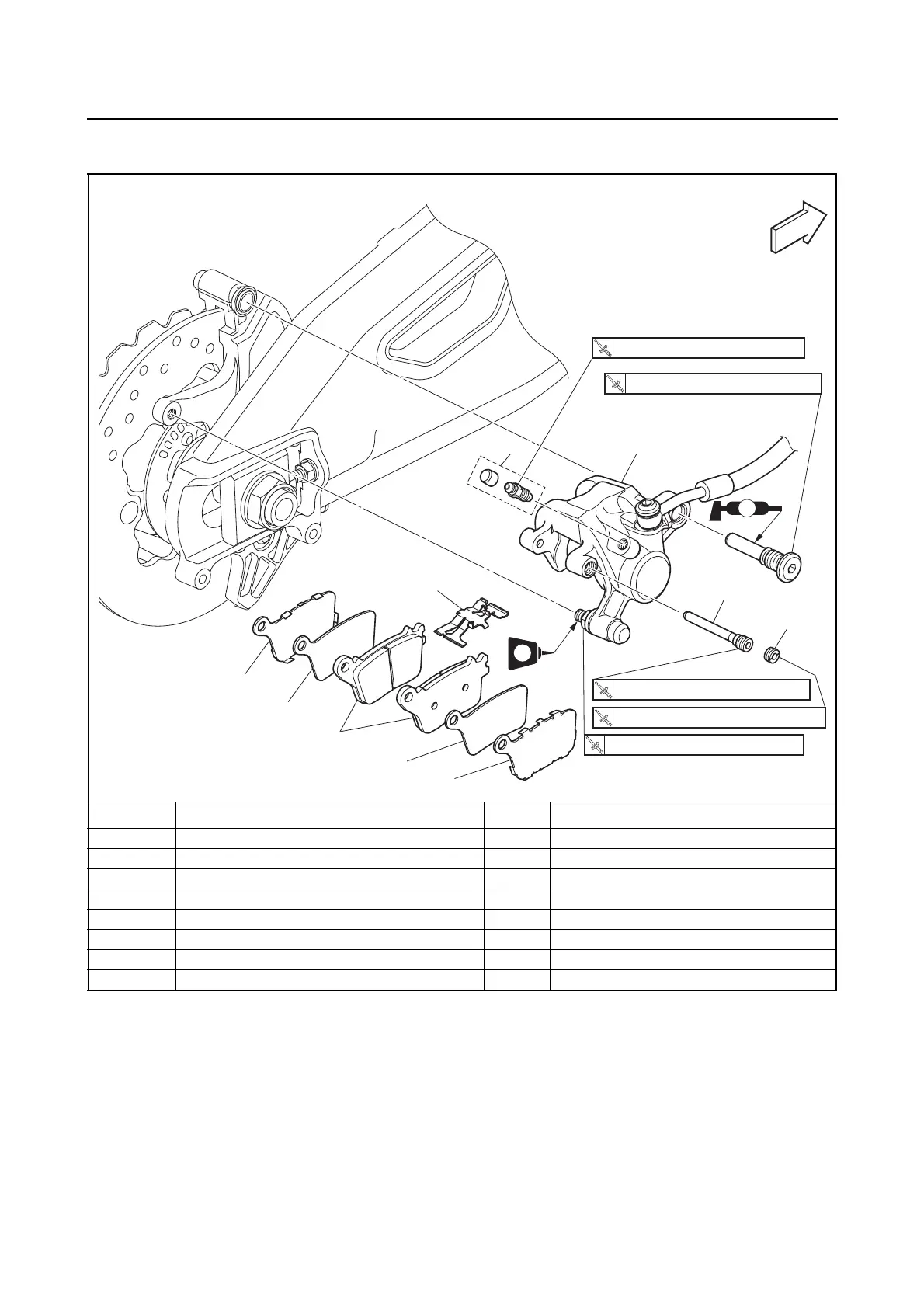

Removing the rear brake pads
Order Job/Parts to remove Q’ty Remarks
1Screw plug 1
2Brake pad retaining bolt 1
3Rear brake caliper 1
4Brake pad 2
5Brake pad shim 2
6Brake pad insulator 2
7Brake pad spring 1
8Bleed screw 1
12 Nm (1.2 m • kgf, 8.7 ft • lbf)
5 Nm (0.5 m • kgf, 3.6 ft • Ibf)
17 Nm (1.7 m • kgf, 12 ft • lbf)
27 Nm (2.7 m • kgf, 20 ft • lbf)
2.5 Nm (0.25 m • kgf, 1.8 ft • lbf)
1
2
3
4
6
6
7
8
S
LT
5
5
FWDF
W
D

Yamaha R1 Series 2015 Specifications

General

Bore x Stroke	79.0mm x 50.9mm
Compression Ratio	13.0:1
Fuel System	Fuel injection with YCC-T and YCC-I
Ignition	TCI: Transistor Controlled Ignition
Transmission	6-speed; multiplate slipper clutch
Final Drive	Chain
Front Brakes	Dual 320mm hydraulic disc; ABS
Rear Brakes	220mm hydraulic disc; ABS
Front Tire	120/70ZR17
Rear Tire	190/55ZR17
Length	80.9 in
Width	27.2 in
Height	45.3 in
Seat Height	33.7 in
Wheelbase	55.3 in
Fuel Capacity	4.5 gal
Wet Weight	439 lb
Front Suspension	43mm inverted fork; fully adjustable
Rear Suspension	Single shock, fully adjustable; 4.7-in travel
Engine Type	998cc, liquid-cooled, DOHC 4-stroke, 4-valve
