8-17
EBU00792

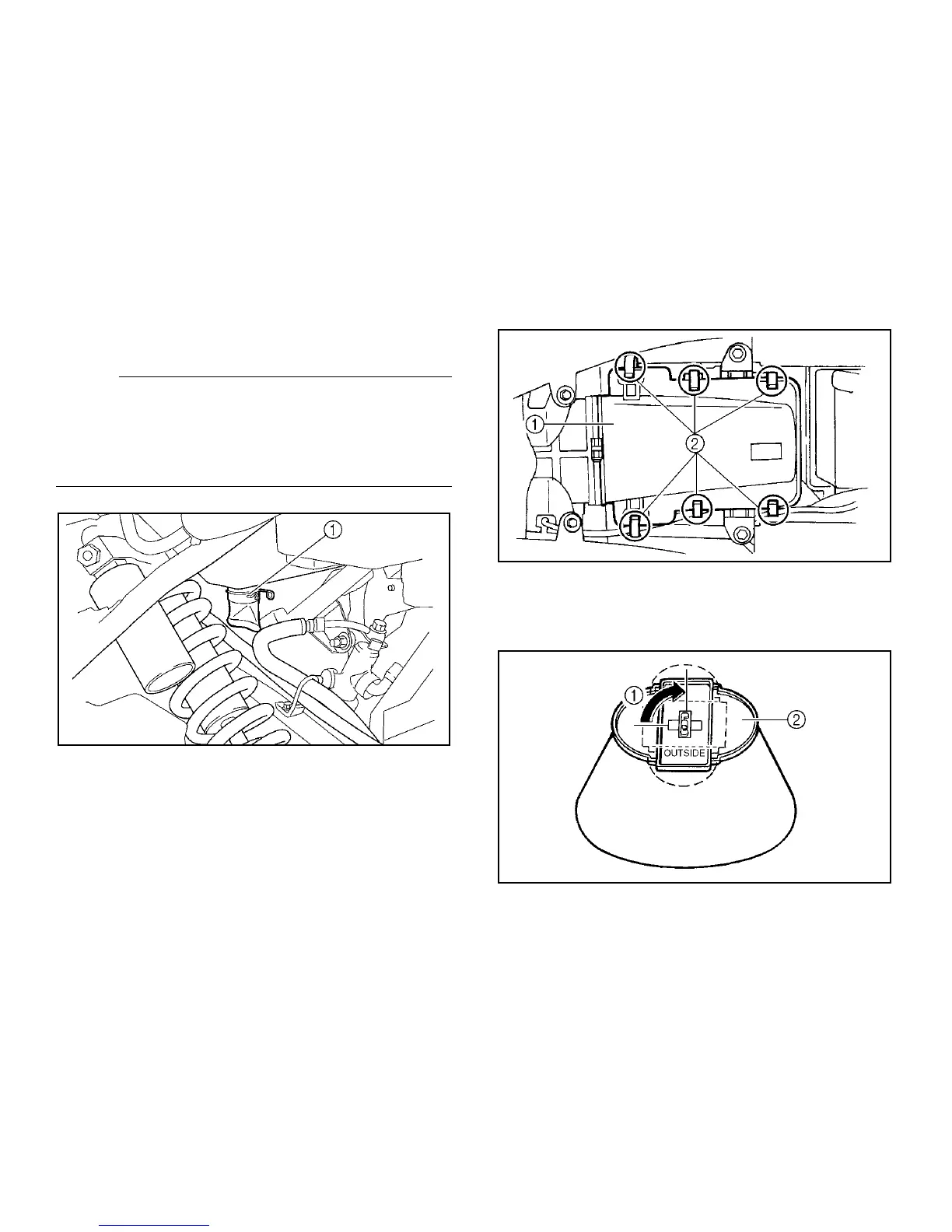

Air filter element cleaning
NOTE:
There is a check hose at the bottom of the air
filter case. If dust or water collects in this
hose, empty the hose and clean the air filter
element and air filter case.
1. Check hose
1. Remove the seat. (See page 4-14 for
seat removal procedure.)
2. Remove the air filter case cover by un-
hooking the holders.
1. Air filter case cover 2. Holder (× 6)
3. Remove the air filter element and remove
it from its frame.
1. Unlock 2. Element retaining plate
