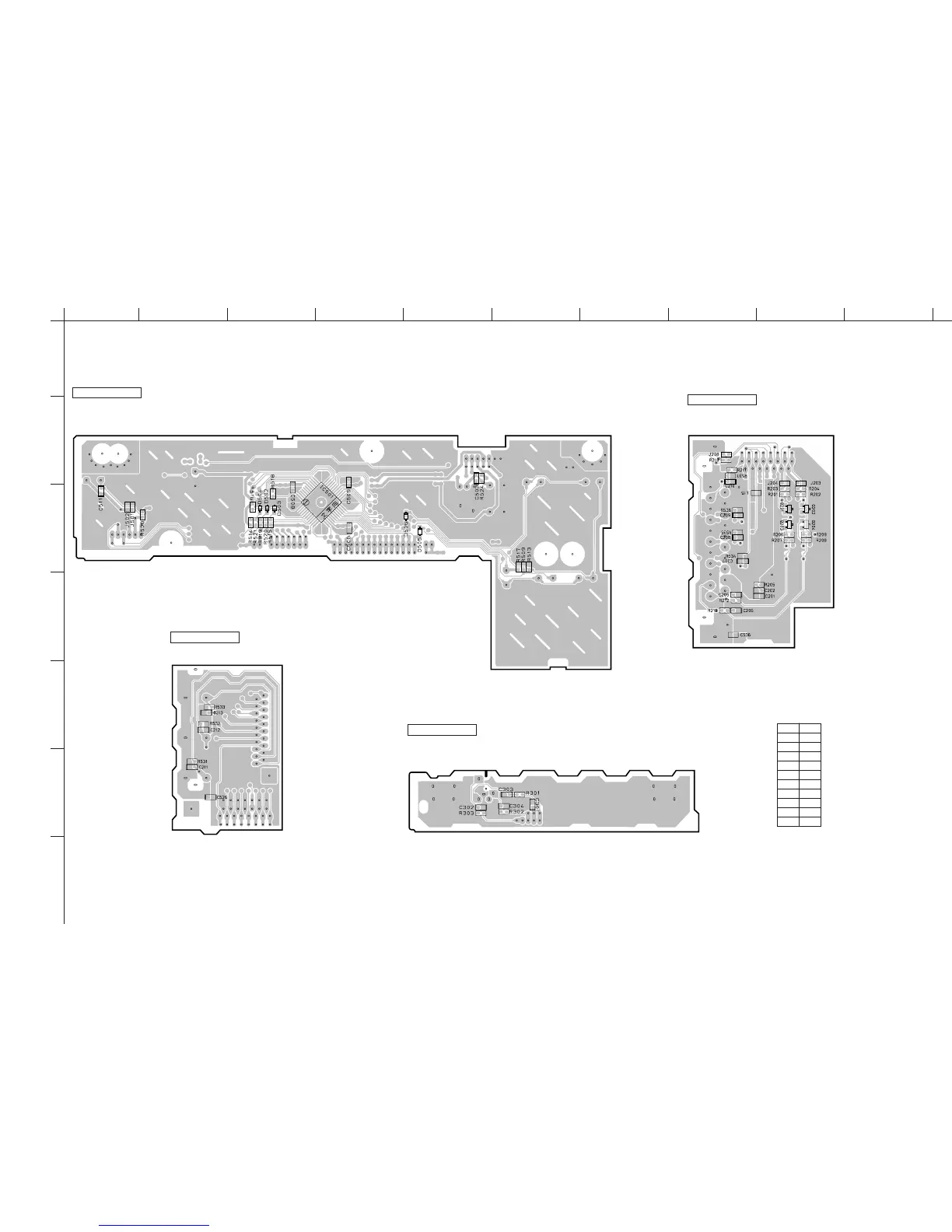

■ PRINTED CIRCUIT BOARD (Foil side)
MAIN (1) P.C.B. (Side B) Lead Free Solder Used
MAIN (2) P.C.B. (Side B) Lead Free Solder Used
MAIN (3) P.C.B. (Side B) Lead Free Solder Used
MAIN (4) P.C.B. (Side B) Lead Free Solder Used
1
44
34
11
12
22
33
23
• Semiconductor Location
Ref no. Location
D502 C3
D503 C3
D504 C3
D505 E3
D506 E3
IC501 D3
Q201 I3
Q202 I3
Q203 I3
Q204 I3
