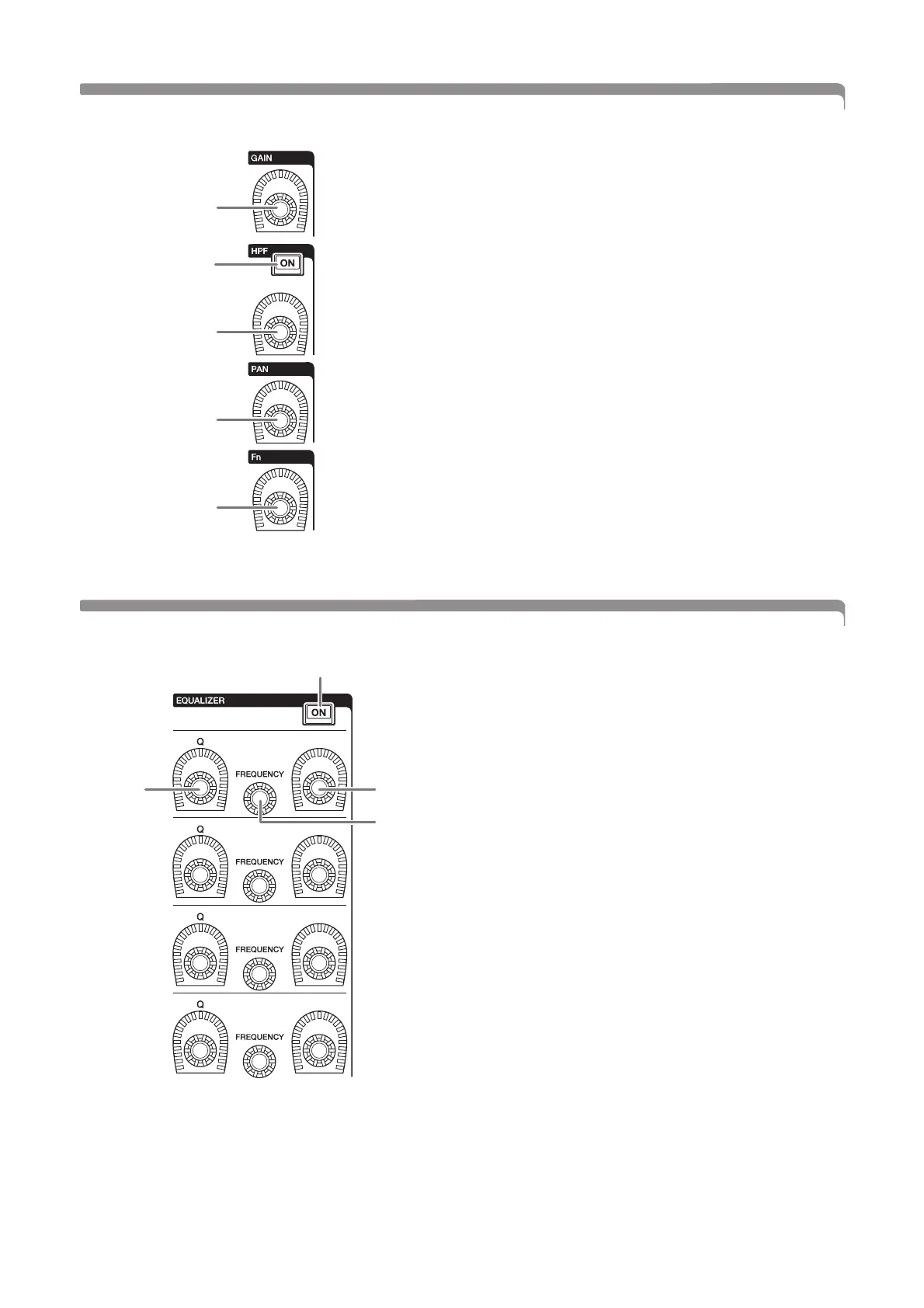

GAIN, HPF, PAN, Fn
1 [GAIN] knob
Controls the analog gain or digital gain.
2 HPF [ON] key
Switches the HPF on or off.
3 [HPF] knob
Adjusts the HPF cutoff frequency.
4 [PAN] knob
Adjusts the panning of the signal sent to the
stereo buses.
5 [Fn] (Function) knob
Adjusts the specified parameter.
EQUALIZER
1 EQUALIZER [ON] key
Switches EQ on or off.
2 EQUALIZER [Q] knobs
Specify the Q value.
3 EQUALIZER [GAIN] knobs
Adjust the gain.
4 EQUALIZER [FREQUENCY] knobs
Adjust the frequency.
1
2
3
4
5
GAIN
GAIN
GAIN
GAIN
23
4
1
