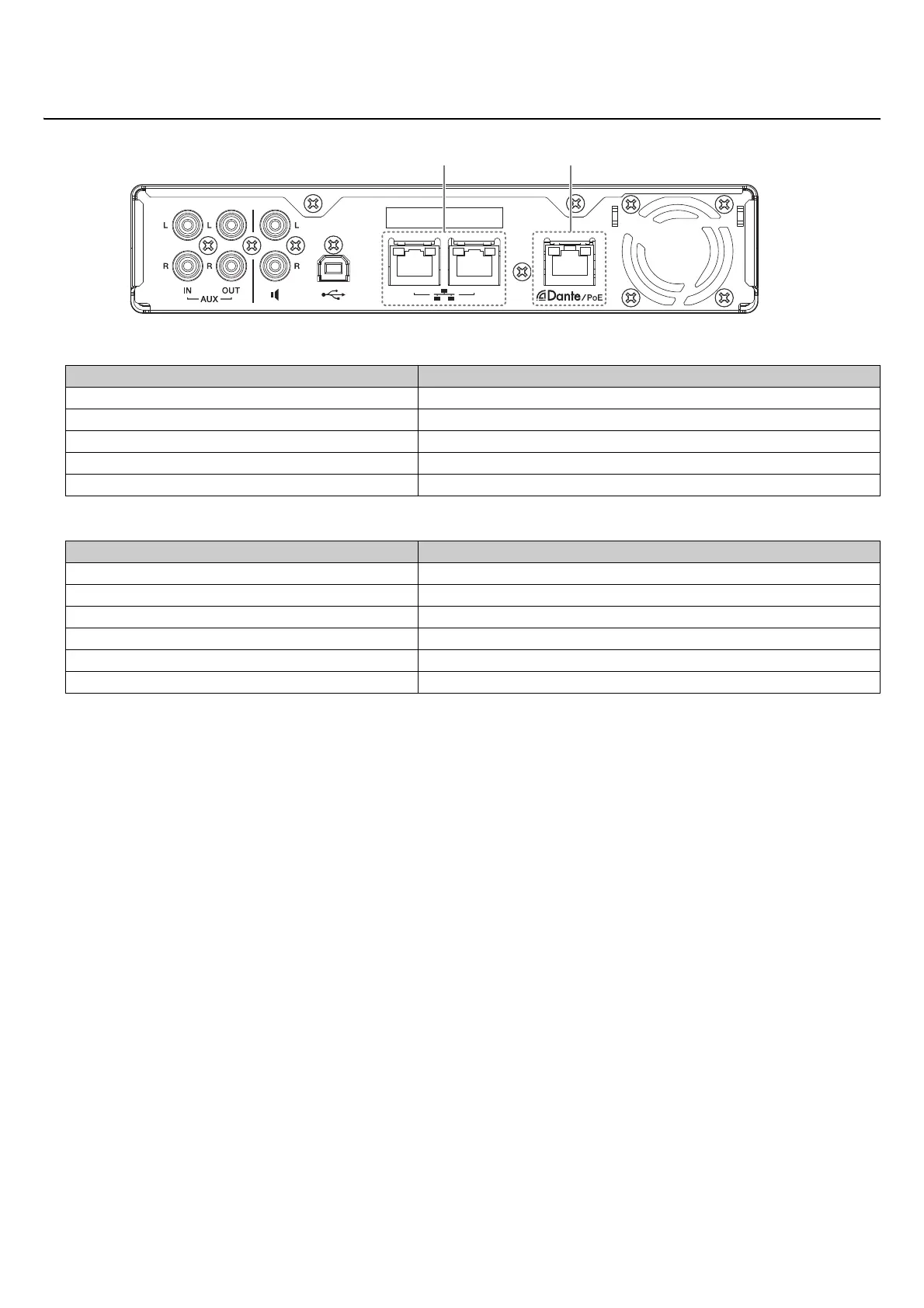

Rear panel
1 Network port indicators (Network port)
2 Network port indicators (Dante/PoE port)
Network port indicator Unit status
Left indicator lit green Link up
Left indicator flashes green Transferring data
Left indicator unlit Link down
Right indicator lit green Connection speed: 1000M Link
Right indicator unlit Connection speed: 10M Link/100M Link
Network port indicator Unit status
Left indicator lit green Link up
Left indicator flashes green Transferring data
Left indicator unlit Link down
Right indicator lit green Operating on word clock of peripheral device (leader)
Right indicator flashes green Acting as word-clock leader
Right indicator flashes orange Word clock unlocked
