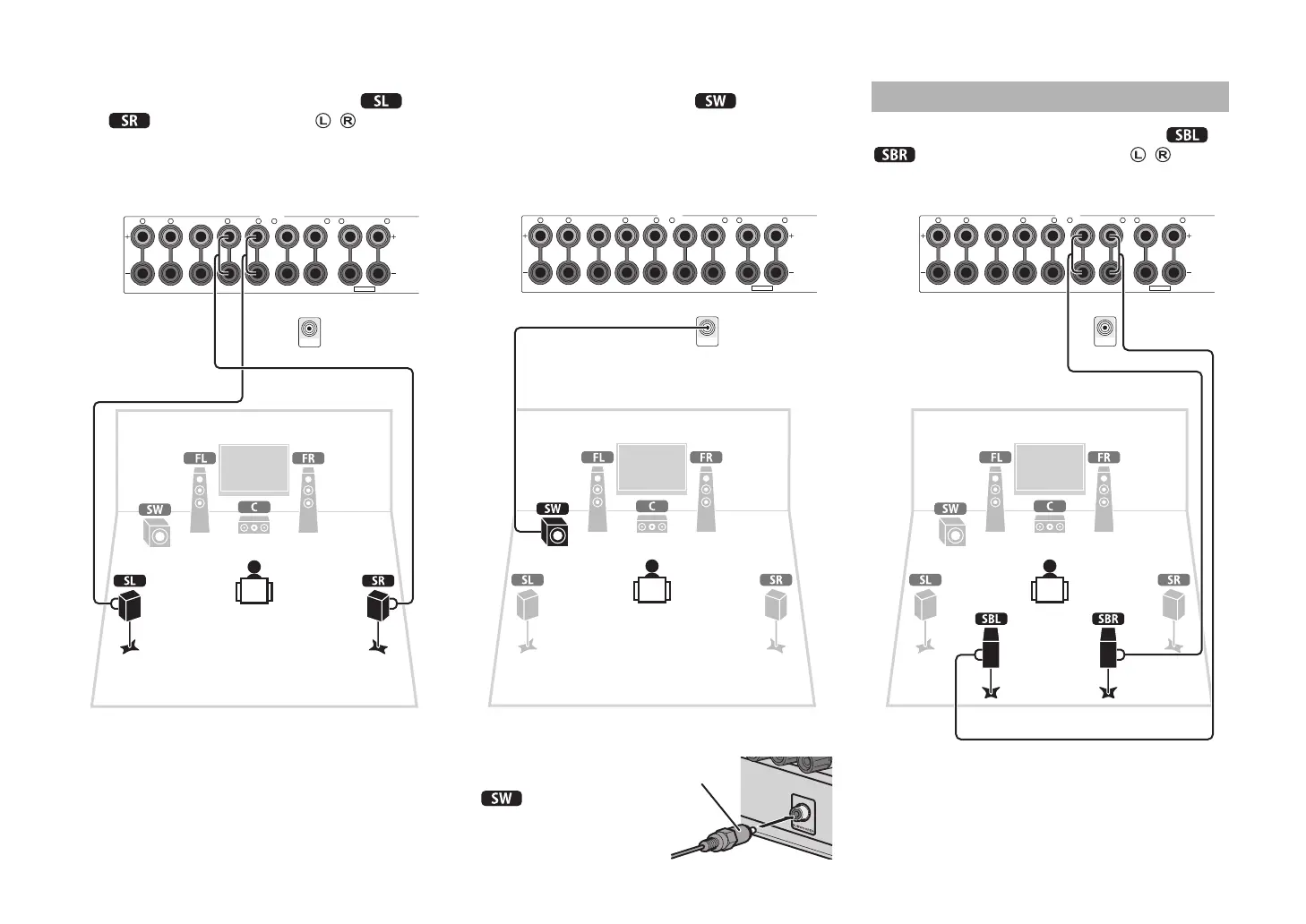

Connect the surround speakers ( /
) to the SURROUND ( / )
terminals.
4
Connect the subwoofer ( ) to the
SUBWOOFER jack.
Use an audio pin cable to
connect the subwoofer
().
Connect the surround back speakers ( /
) to the SURROUND BACK ( / )
terminals.
SPEAKERS
SURROUND BACK/ BI–AMP ZONE 2/PRESENCE
EXTRA SP
R RL L
SUBWOOFER
FRONT CENTER SURROUND
R L R L
SINGLE
This unit (rear)
SPEAKERS
SURROUND BACK/ BI–AMP ZONE 2/PRESENCE
EXTRA SP
R RL L
SUBWOOFER
FRONT CENTER SURROUND
R L R L
SINGLE
This unit (rear)
For 7.1-channel system
SPEAKERS
SURROUND BACK/ BI–AMP ZONE 2/PRESENCE
EXTRA SP
R RL L
SUBWOOFER
FRONT CENTER SURROUND
R L R L
SINGLE
This unit (rear)
Audio pin cable
