Yamaha RX-V1800 User Manual

QUICK START GUIDE
6 En
The following steps describe the easiest way to enjoy DVD movie playback in your home theater.
In these steps, you need the following supplied
accessories.
❏ AM loop antenna
❏ Indoor FM antenna
❏ Power cable
The following items are not included in the package of this
unit.
❏ Speakers
❏ Front speaker ..................................... x 2
❏ Center speaker ................................... x 1
❏ Surround speaker .............................. x 4
Select magnetically shielded speakers. The
minimum required speakers are two front speakers.
The priority of the requirement of other speakers is
as follows:
1. Two surround speakers
2. One center speaker
3. One (or two) surround back speaker(s)
❏ Active subwoofer ................................... x 1
Select an active subwoofer equipped with an RCA
input jack.
❏ Speaker cable ......................................... x 7
❏ Subwoofer cable ..................................... x 1
Select a monaural RCA cable.
❏ DVD player .............................................. x 1
Select DVD player equipped with coaxial digital
audio output jack and composite video output
jack.
❏ Video monitor .......................................... x 1
Select a TV monitor, video monitor or projector
equipped with a composite video input jack.
❏ Video cable ............................................. x 2
Select RCA composite video cables.
❏ Digital coaxial audio cable .................... x 1
Quick start guide

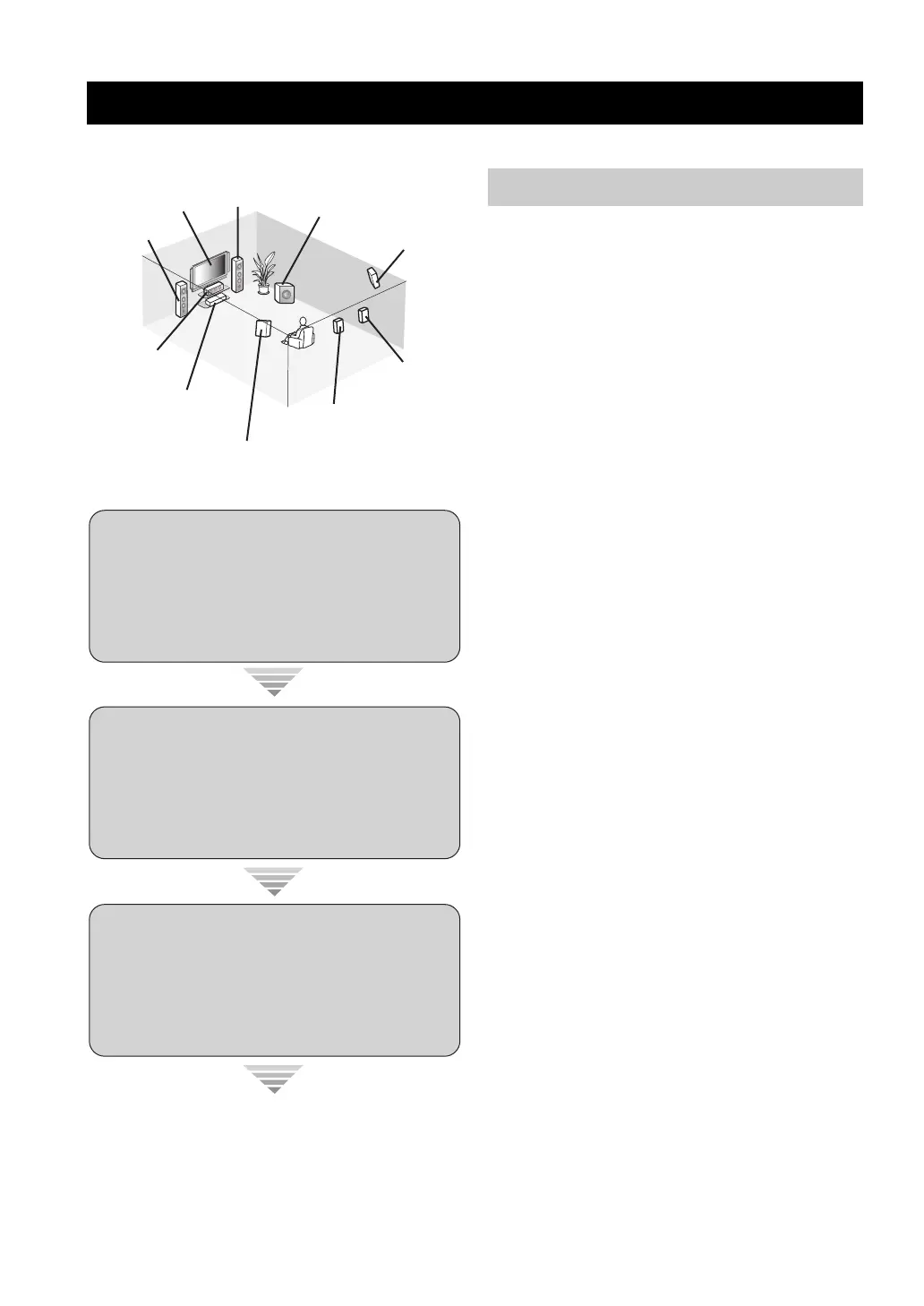

Front right
speaker
Subwoofer
Surround back
right speaker
Surround left
speaker
Front left
speaker
Surround back left
speaker
Surround right
speaker
Center
speaker
Video monitor
DVD player
Enjoy DVD playback!
Step 1: Set up your speakers
☞ P. 7
Step 2: Connect your DVD player
and other components
Step 3: Turn on the power and
start playback
☞ P. 8
☞ P. 10
Preparation: Check the items

Yamaha RX-V1800 Specifications

General

Channels	7.1
Power Output	130 W per channel (8 ohms, 20 Hz-20 kHz, 0.04% THD)
Total Harmonic Distortion (THD)	0.04%
Frequency Response	10 Hz - 100 kHz
HDMI Inputs	4
HDMI Outputs	1
Video Formats Supported	1080p
Network Capability	No
Signal-To-Noise Ratio	100 dB
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Audio D/A Converter	192 kHz/24-bit
Digital Sound Processor (DSP)	Yes
DSP Preset Qty	17
Tuner Type	AM/FM
Preset Station Qty	40
HDMI Switching	Yes
HDMI Version	1.3a
Audio Formats Supported	Dolby Digital, DTS, Dolby Pro Logic IIx, DTS-ES, DTS 96/24, DTS Neo:6
Response Bandwidth	10 Hz-100 kHz
DSP Presets	Concert Hall, Jazz Club
Additional Features	iPod compatibility, XM Radio ready
Video Conversion	Up to 1080p
Video Inputs/Outputs	Component
Audio Inputs/Outputs	Analog, Digital Coaxial, Digital Optical
Tuning Display	Fluorescent display
