RX-V530/RX-V530RDS/HTR-5550/HTR-5550RDS/DSP-AX530
RX-V430/RX-V430RDS/HTR-5540/HTR-5540RDS/DSP-AX430
59
: RX-V530/RX-V530RDS/
HTR-5550/HTR-5550RDS/
DSP-AX530 only
J model only
17
14 8
17
14 8
14
85
34
17
14 8
14
85
14
85
DSP P. C. B.
(Surface Mount Device)

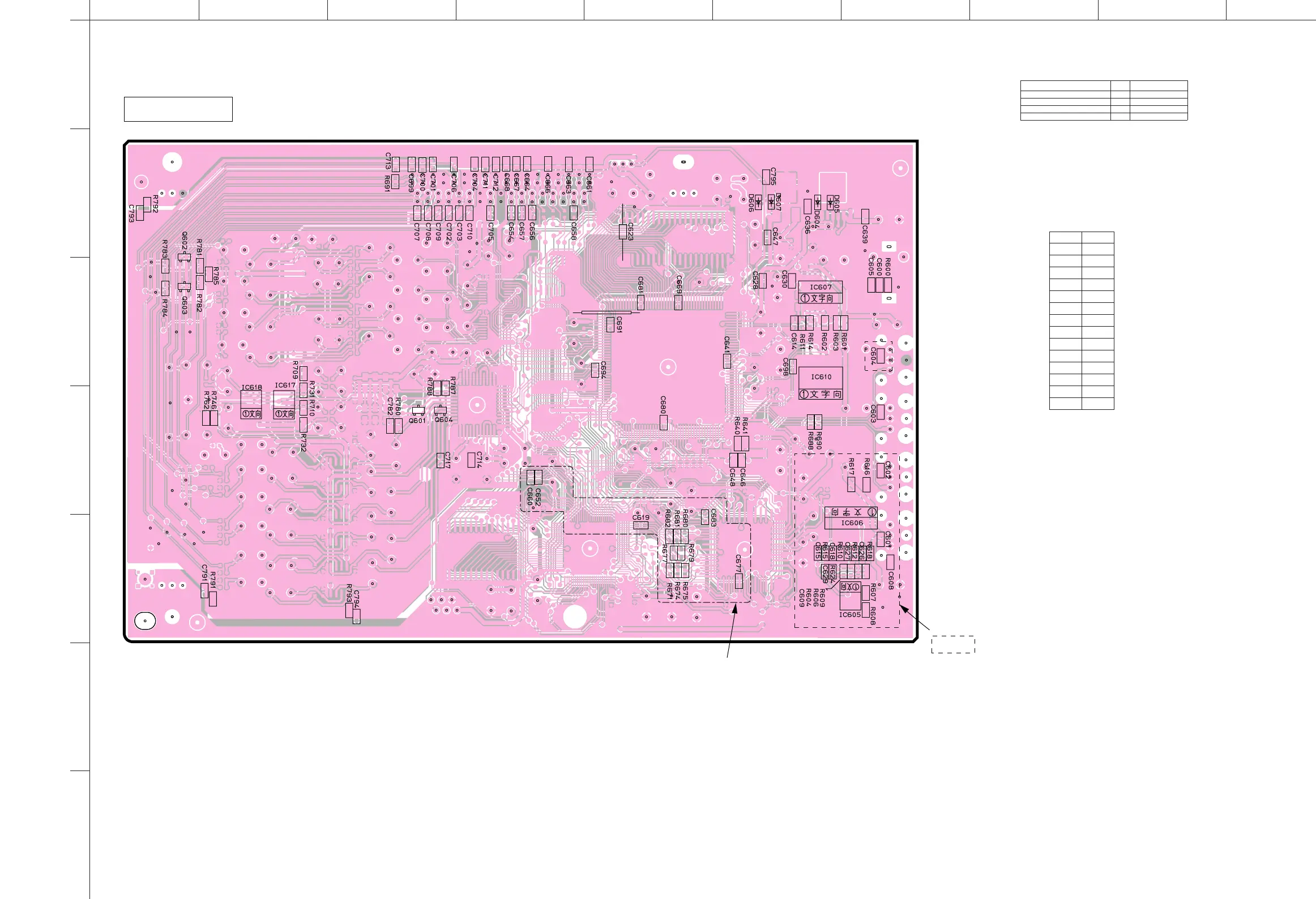

■ PRINTED CIRCUIT BOARD (Foil side)
• Semiconductor Location
Ref. No. Location
D604 F2
D605 F2
D606 F2
D607 F2
IC605 G5
IC606 G5
IC607 F3
IC610 F4
IC617 B4
IC618 B4
Q601 C4
Q602 A2
Q603 A3
Q604 C4
Circuit No. J U, C, R, T, K, A, B, G
C658, 661, 666 O X
J601 X O
R653, 654, 656, 657, 659, 660, 662 O X
R668 X O
X: NOT USED
O: USED / APPLICABLE
