Yamaha TDM900 User Manual

2-1
EAU00026
DESCRIPTION
Part locations
2
1. Front fork spring preload adjusting bolt (page 3-15)
2. Front fork damping force adjusting
screw (page 3-15)
3. Air filter element (page 6-16)
4. Shock absorber assembly compression
damping force adjusting knob (page 3-17)
5. Battery (page 6-33)
6. Fuses (page 6-34)
7. Storage compartment (page 3-14)
8. Grab bar
9. Luggage strap holders (page 3-18)
10. Seat lock (page 3-13)
11. Shock absorber assembly rebound
damping force adjusting knob (page 3-17)
12. Shock absorber assembly spring
preload adjusting ring (page 3-16)
13. Shift pedal (page 3-9)
14. Engine oil drain bolt A (page 6-9)
1
2
3 4 5 6 7 8
991011121314
1
2
345678
991011121314

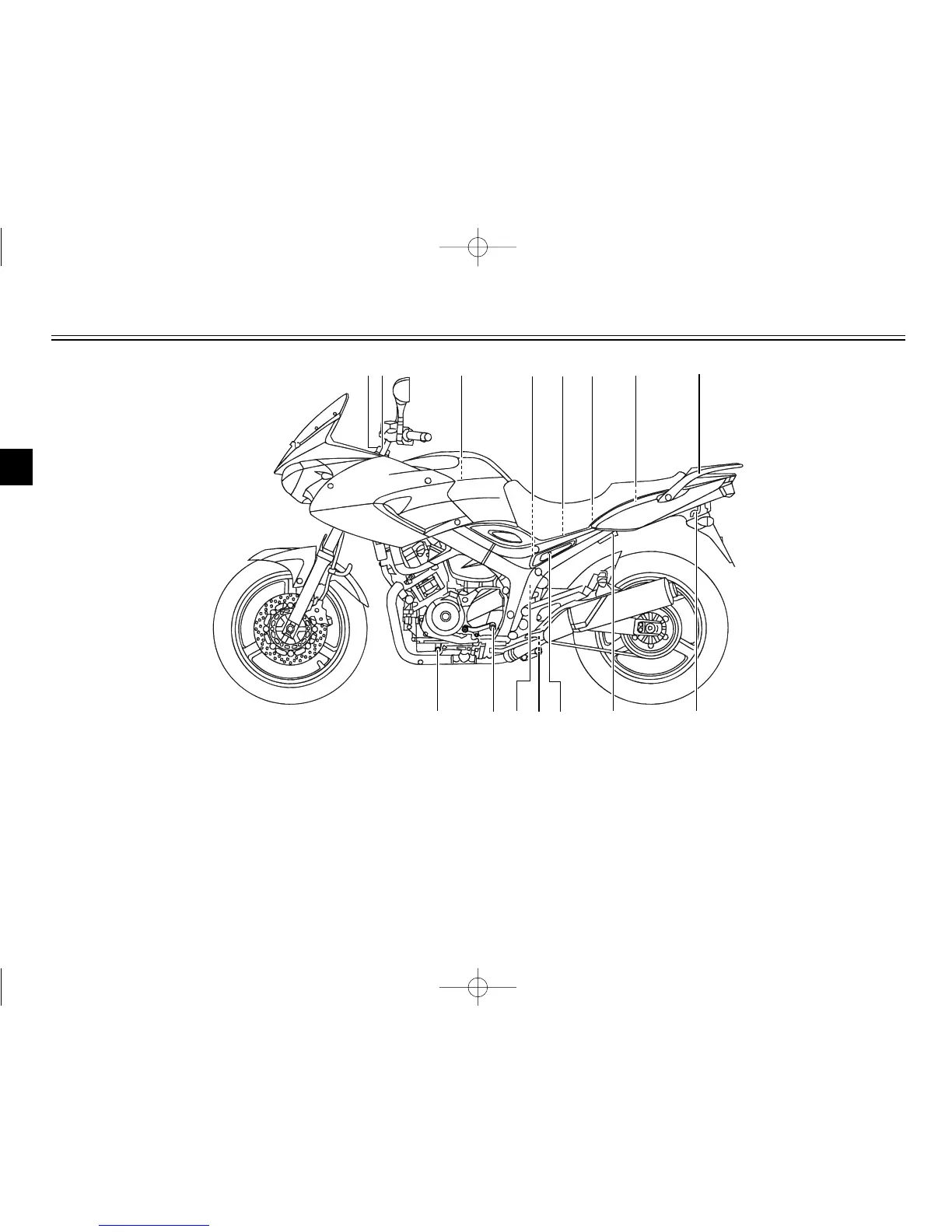

Left view
5PS-28199-E1 8/29/02 9:16 AM Page 10

Yamaha TDM900 Specifications

General

Displacement	897 cc
Bore x Stroke	92.0 mm x 67.5 mm
Compression Ratio	10.4:1
Fuel System	Fuel Injection
Ignition	TCI
Transmission	6-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Rear Suspension	Swingarm (monoshock)
Front Tire	120/70 ZR18
Rear Tire	160/60 ZR17
Seat Height	825 mm
Fuel Capacity	20 liters
Wet Weight	223 kg
Length	2, 180 mm
Height	1, 290 mm
Wheelbase	1, 485 mm
Engine Type	Liquid-cooled, 4-stroke, DOHC, parallel twin
Front Brakes	Dual 298mm discs
Rear Brakes	245mm disc
Max Torque	88.8 Nm (65.5 lb-ft) @ 6, 000 rpm
