Yamaha TDM900 User Manual

6-22
PERIODIC MAINTENANCE AND MINOR REPAIR
6
EAU03773
Cast wheels
Wheels
To maximize the performance, dura-
bility, and safe operation of your
motorcycle, note the following points
regarding the specified wheels.
8 The wheel rims should be
checked for cracks, bends or
warpage before each ride. If any
damage is found, have a
Yamaha dealer replace the
wheel. Do not attempt even the
smallest repair to the wheel. A
deformed or cracked wheel must
be replaced.
8 The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced.
An unbalanced wheel can result
in poor performance, adverse
handling characteristics, and a
shortened tire life.
EAU00694

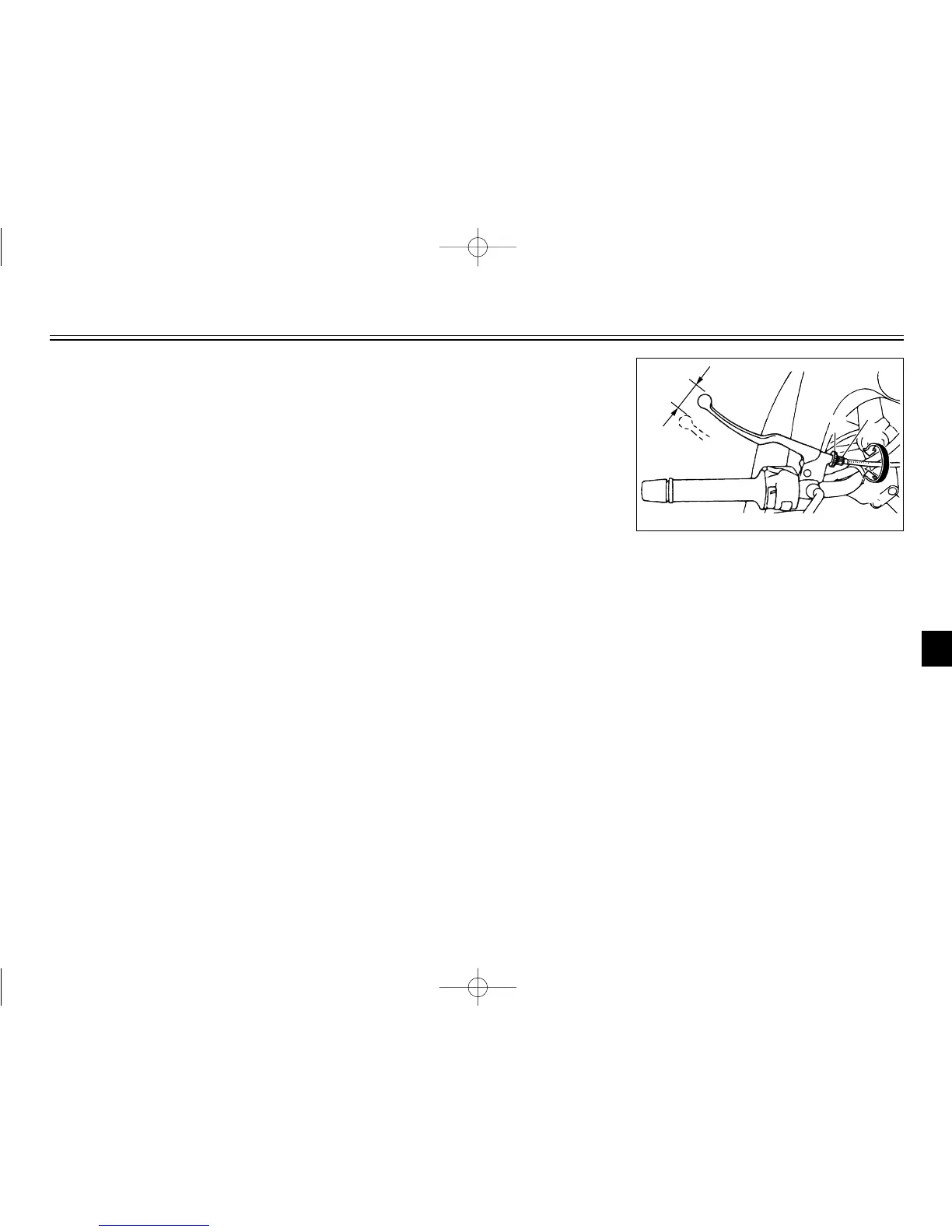

Adjusting the clutch lever
free play
Clutch lever free play, adjusting
The clutch lever free play should
measure 10–15 mm as shown.
Periodically check the clutch lever
free play and, if necessary, adjust it
as follows.
1. Loosen the locknut at the clutch
lever.
2. To increase the clutch lever free
play, turn the adjusting bolt in
direction a. To decrease the
clutch lever free play, turn the
adjusting bolt in direction b.
1
a
2
a
c
b
1. Locknut (clutch lever)
2. Clutch lever free play adjusting bolt
c. Clutch lever free play
8 Ride at moderate speeds after
changing a tire since the tire sur-
face must first be “broken in” for
it to develop its optimal charac-
teristics.
5PS-28199-E1 8/29/02 9:16 AM Page 67

Yamaha TDM900 Specifications

General

Displacement	897 cc
Bore x Stroke	92.0 mm x 67.5 mm
Compression Ratio	10.4:1
Fuel System	Fuel Injection
Ignition	TCI
Transmission	6-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Rear Suspension	Swingarm (monoshock)
Front Tire	120/70 ZR18
Rear Tire	160/60 ZR17
Seat Height	825 mm
Fuel Capacity	20 liters
Wet Weight	223 kg
Length	2, 180 mm
Height	1, 290 mm
Wheelbase	1, 485 mm
Engine Type	Liquid-cooled, 4-stroke, DOHC, parallel twin
Front Brakes	Dual 298mm discs
Rear Brakes	245mm disc
Max Torque	88.8 Nm (65.5 lb-ft) @ 6, 000 rpm
