Yamaha TDM900 User Manual

6-40
PERIODIC MAINTENANCE AND MINOR REPAIR
6
EAU04376
To install the front wheel
Installing
1. Lift the wheel up between the
fork legs.
2. Insert the wheel axle.
3. Lower the front wheel so that it is
on the ground.
4. Install the brake calipers by
installing the bolts.
NOTE:
Make sure that there is enough
space between the brake pads
before installing the brake calipers
onto the brake discs.
5. Install the brake hose holders by
installing the bolts.
6. Tighten the wheel axle, the front
wheel axle pinch bolt and the
brake caliper bolts to the speci-
fied torques.
EAU04455
Rear wheel
Wheel (rear)
To remove the rear wheel
Removing
EW000122
w
8 It is advisable to have a
Yamaha dealer service the
wheel.
8 Securely support the motorcy-
cle so that there is no danger
of it falling over.

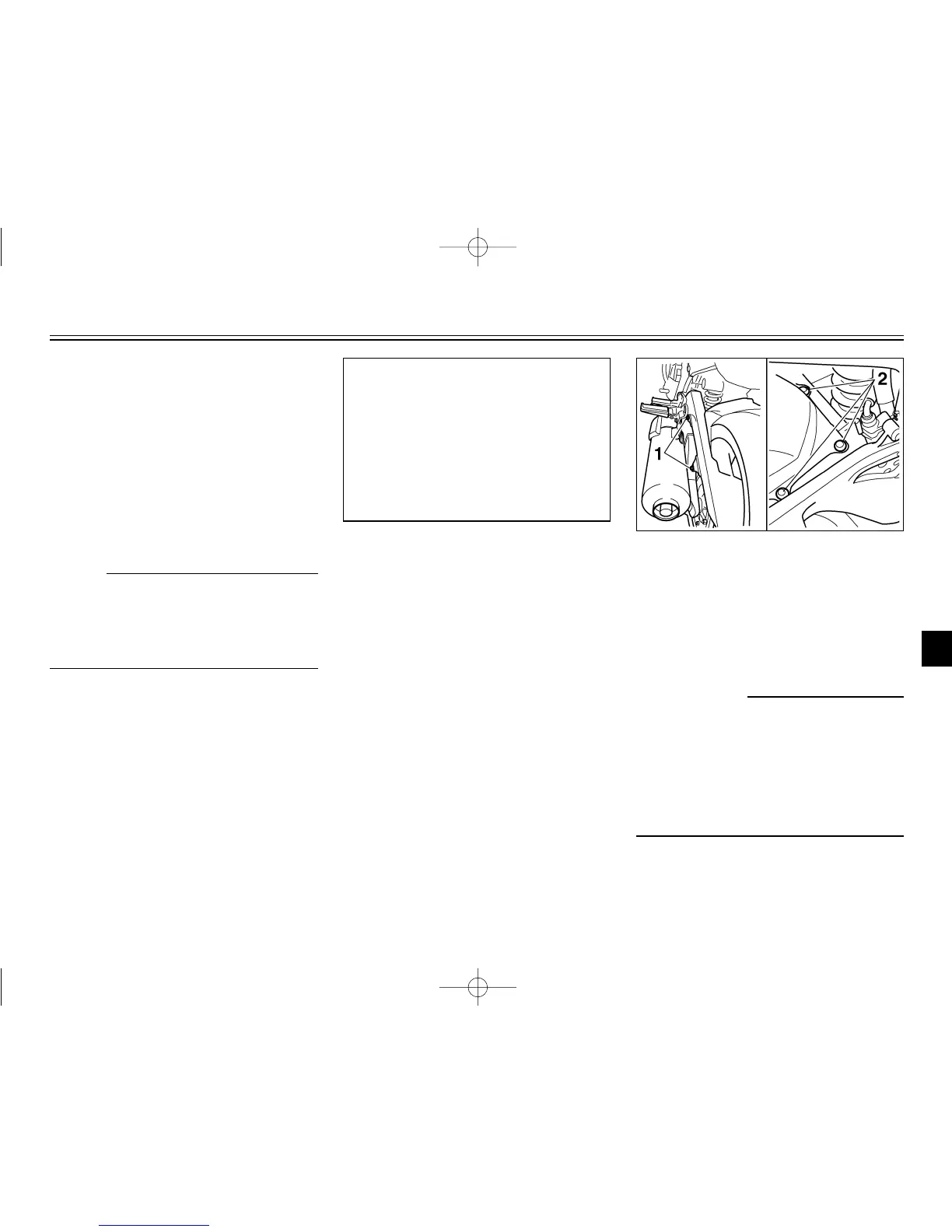

1. Bolt (×2)
2. Quick fastener (×3)
7. Push down hard on the handle-
bar several times to check for
proper fork operation.
Tightening torques:
Wheel axle:
72 Nm (7.2 m·kgf)
Front wheel axle pinch bolt:
20 Nm (2.0 m·kgf)
Brake caliper bolt:
40 Nm (4.0 m·kgf)
5PS-28199-E1 8/29/02 9:17 AM Page 85

Yamaha TDM900 Specifications

General

Displacement	897 cc
Bore x Stroke	92.0 mm x 67.5 mm
Compression Ratio	10.4:1
Fuel System	Fuel Injection
Ignition	TCI
Transmission	6-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Rear Suspension	Swingarm (monoshock)
Front Tire	120/70 ZR18
Rear Tire	160/60 ZR17
Seat Height	825 mm
Fuel Capacity	20 liters
Wet Weight	223 kg
Length	2, 180 mm
Height	1, 290 mm
Wheelbase	1, 485 mm
Engine Type	Liquid-cooled, 4-stroke, DOHC, parallel twin
Front Brakes	Dual 298mm discs
Rear Brakes	245mm disc
Max Torque	88.8 Nm (65.5 lb-ft) @ 6, 000 rpm
