ANTENNA CONNECTIONS
●

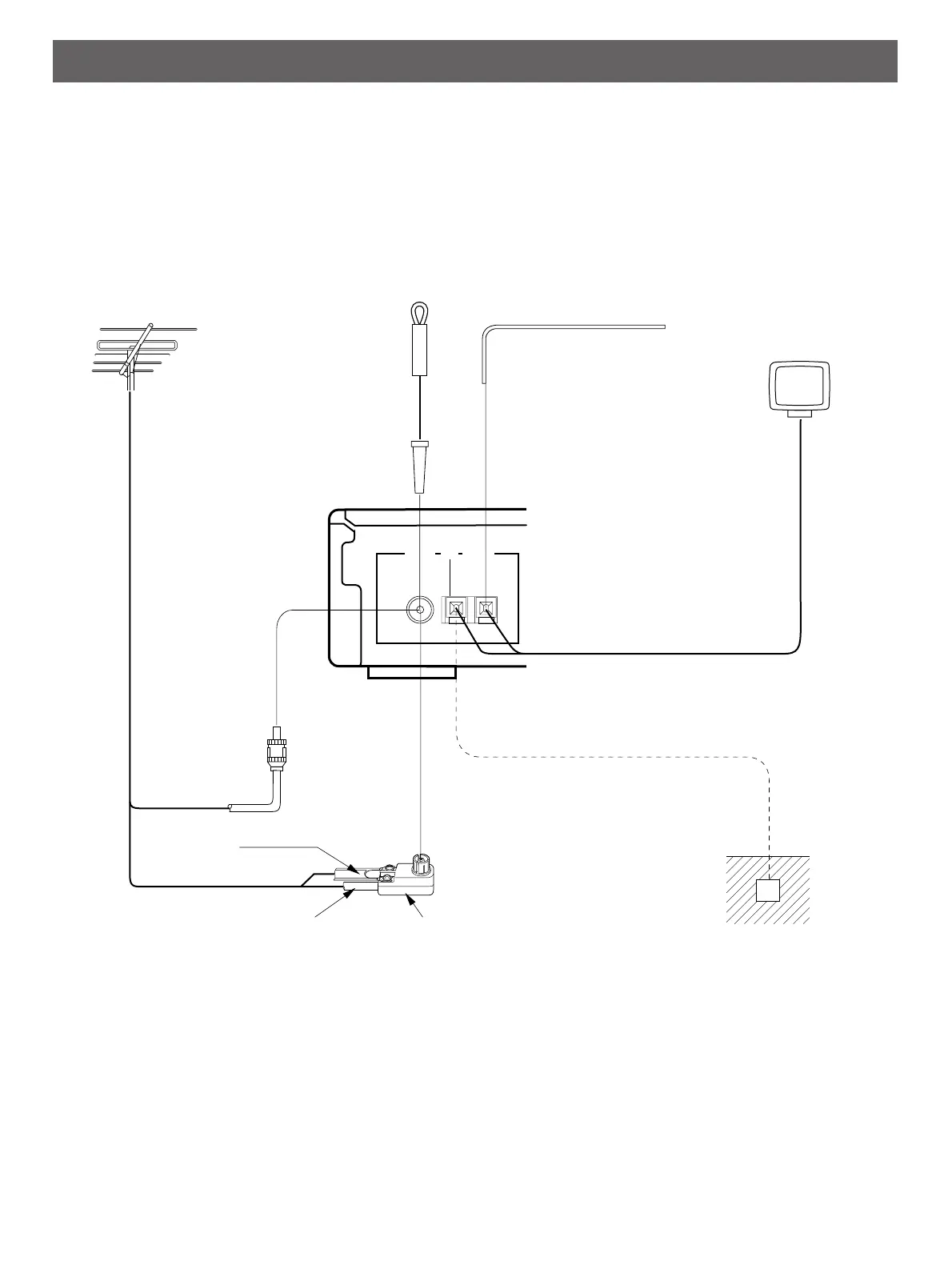

Each antenna should be connected to the designated terminals correctly, referring to the following figure.
●
Both AM and FM indoor antennas are included with this unit. In general, these antennas will probably provide sufficient signal
strength. Nevertheless, a properly installed outdoor antenna will give clearer reception than an indoor one. If you experience
poor reception quality, an outdoor antenna may result in improvement.
4
CONNECTIONS
75Ω UNBAL.
FM ANT GND AM ANT
Outdoor FM antenna
Outdoor AM antenna
AM loop
antenna
(included)
Ground
75-ohm/300-ohm
antenna adapter
75-ohm coaxial cable
300-ohm flat
ribbon cable
Indoor FM
antenna
(included)
75-ohm
antenna
adapter
