Components
24
EMU2579Z

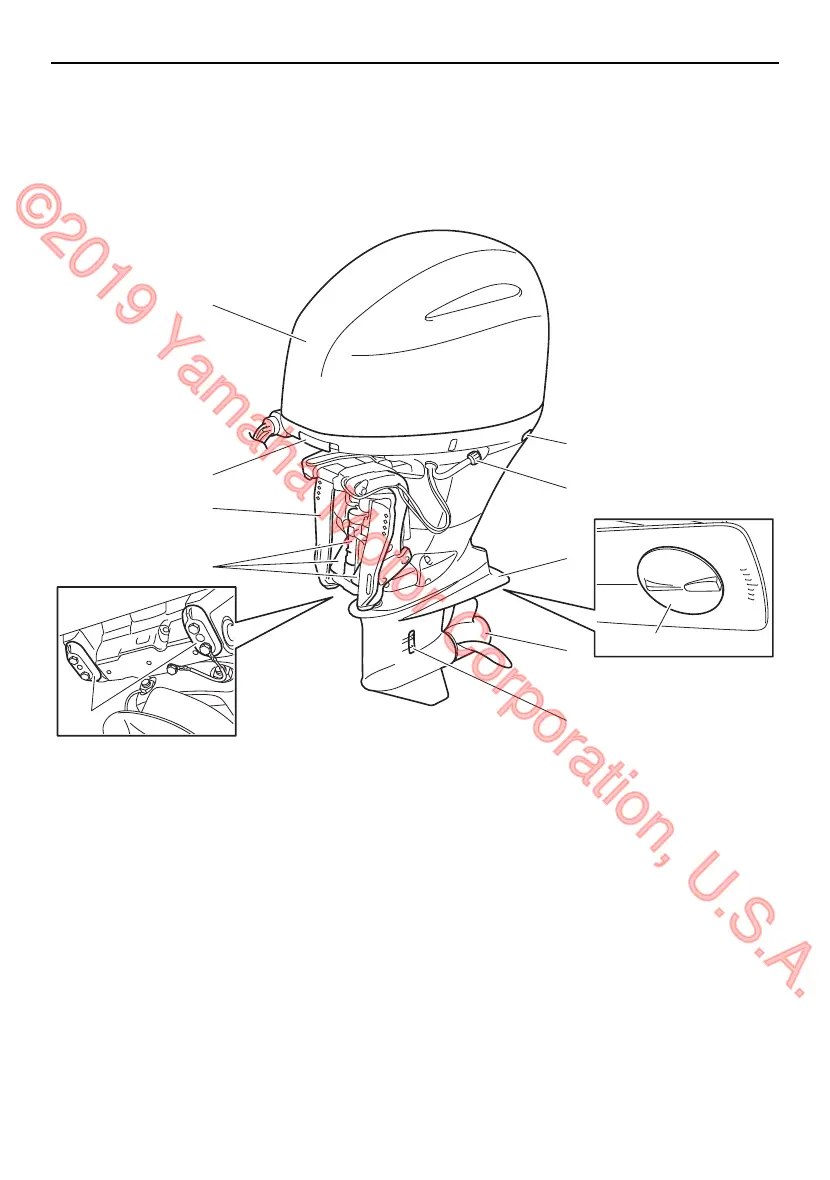

Components diagram
TIP:
* May not be exactly as shown; also may not be included as standard equipment on all models
(order from dealer).
VF150LA, VF175LA
1
2
6
8
9
2
3
4
7
5
5
ZMU08009
1. Top cowling
2. Cowling lock lever
3. Clamp bracket
4. Power trim and tilt unit
5. Anode
6. Flushing device
7. Anti-cavitation plate
8. Propeller*
9. Cooling water inlet
