Yamaha VF150 - Remote Control Lever; Neutral Interlock Trigger; Free Accelerator

Components
28
EMU26191

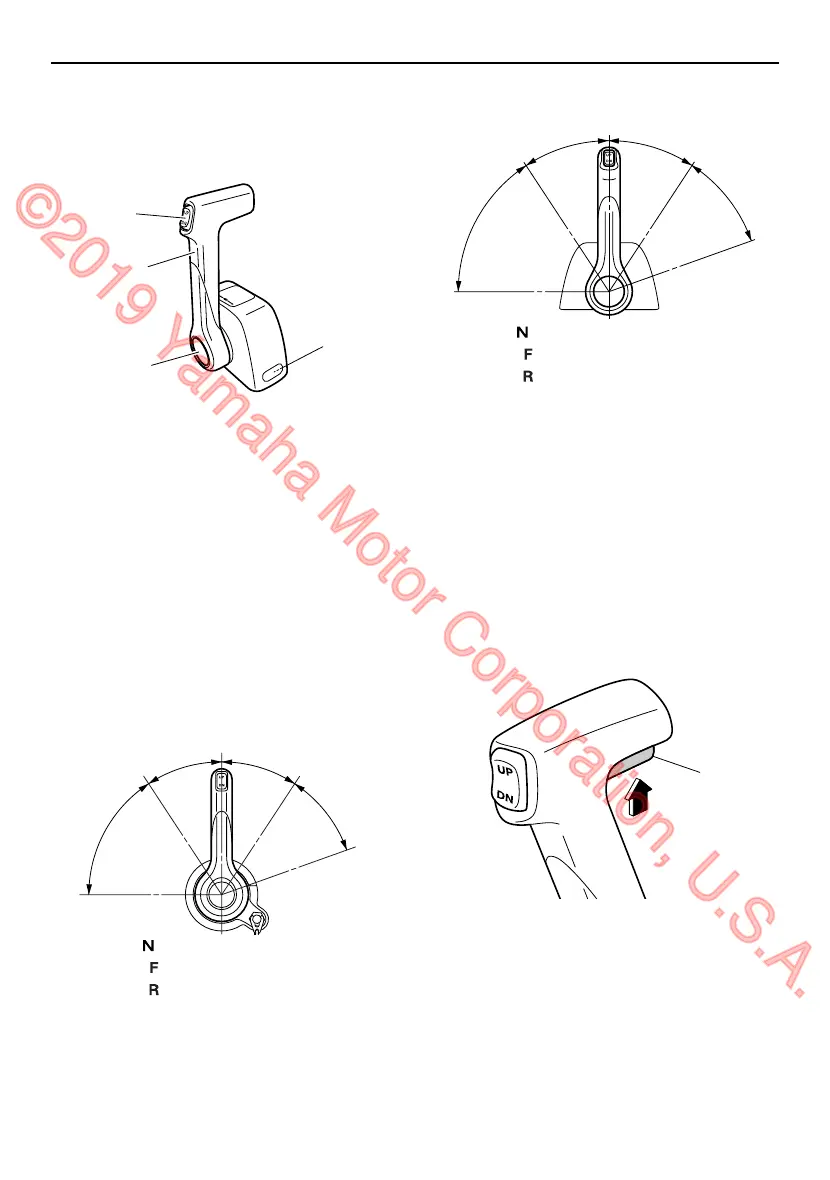

Remote control lever
Moving the lever forward from the neutral po-
sition engages forward gear. Pulling the lever
back from neutral engages reverse. The en-
gine will continue to run at idle until the lever
is moved about 35° (a detent can be felt).
Moving the lever farther opens the throttle,
and the engine will begin to accelerate.
EMU40631
Neutral interlock trigger
The neutral interlock prevents the remote
control lever from accidentally being moved
forward or rearward from the neutral position.
To move the remote control lever forward or
rearward from the neutral position, pull the
neutral interlock trigger up, and then move
the remote control lever.
EMU26234
Free accelerator
To open the throttle without shifting into ei-
ther forward or reverse, push the free accel-
erator button and move the remote control
lever.
4. Engine shut-off switch
5. Throttle friction adjuster
6. Neutral interlock trigger
1. Power trim and tilt switch
2. Remote control lever
3. Free accelerator button
4. Throttle friction adjuster
1. Neutral “ ”
2. Forward “ ”
3. Reverse “ ”
4. Fully closed
5. Throttle
6. Fully open
2
1
3
4
ZMU04572
ZMU07024
N
1
F
6
5
2
R
3
35˚
35˚
5
4
6
4
1. Neutral “ ”
2. Forward “ ”
3. Reverse “ ”
4. Fully closed
5. Throttle
6. Fully open
1. Neutral interlock trigger
ZMU06901
N
1
F
6
5
2
R
3
35˚
35˚
5
4
6
4
ZMU07042
1
