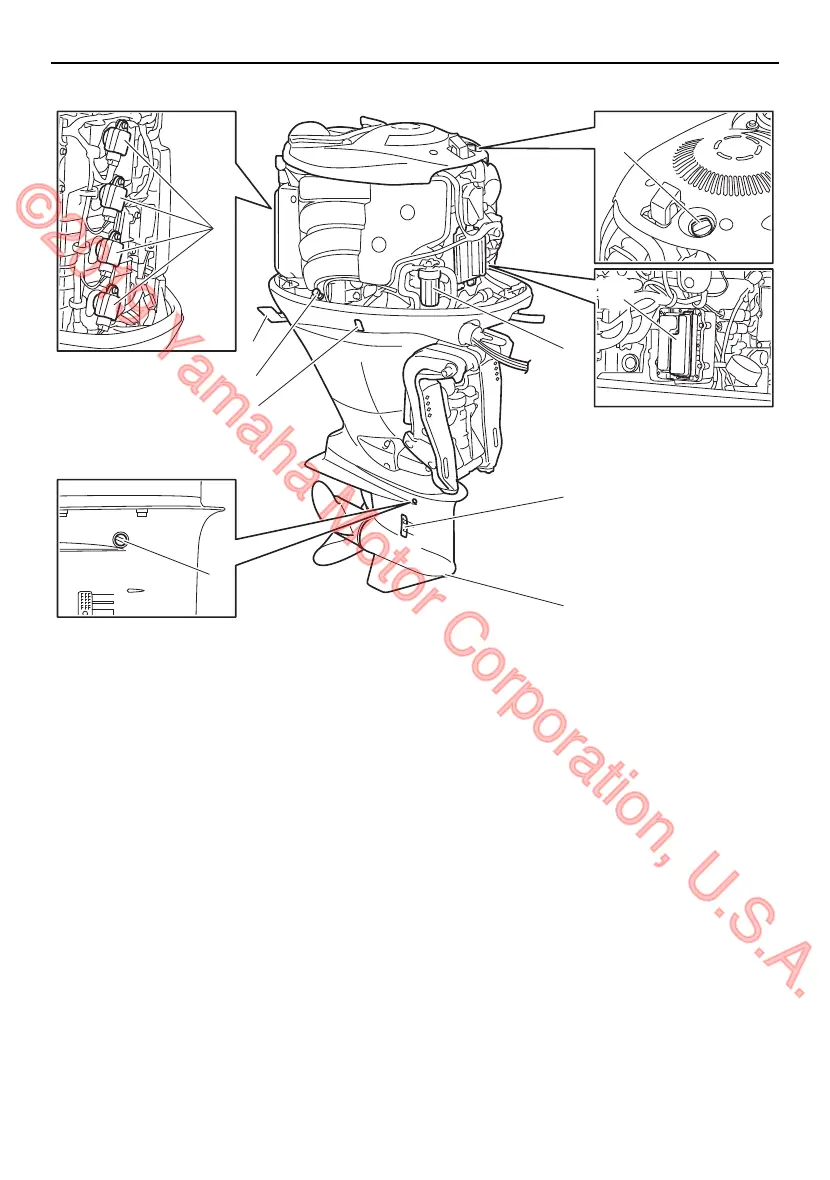

Components
26
VF150LA, VF150XA, VF175LA
9
10
2
3
4
8
5
6
7
1
ZMU08010
1. Ignition coil
2. Cowling lock lever
3. Oil dipstick
4. Power trim and tilt switch
5. Oil level plug
6. Oil filler cap
7. Fuse box
8. Fuel filter
9. Cooling water inlet
10.Gear oil drain screw
