Starter motor
7-34

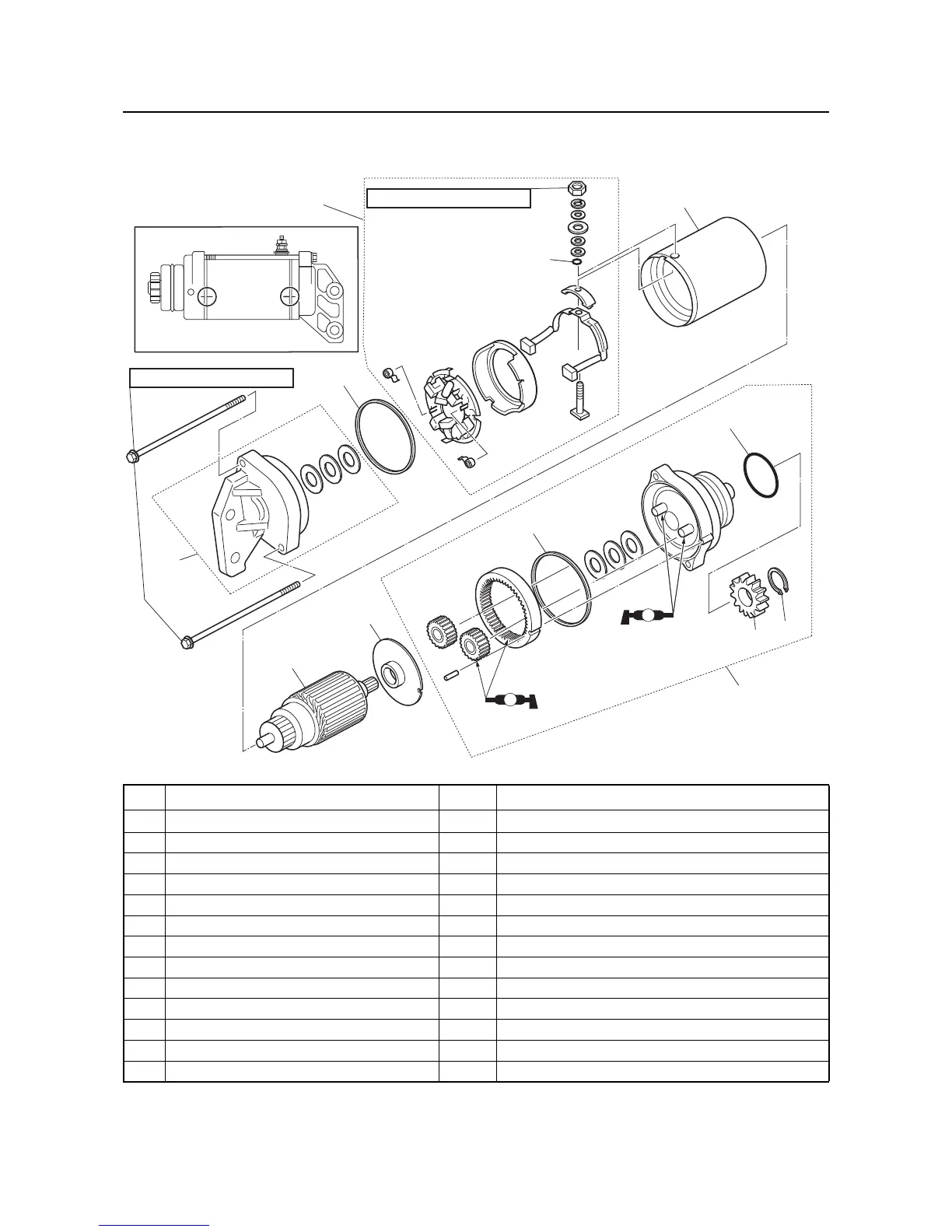

Starter motor
No. Part name
Q
’ty
Remarks
1Bolt 2
M6
× 120 mm
2 Starter motor rear cover 1
3 Packing seal 1 Not reusable
4Front cover 1
5 Packing seal 1 Not reusable
6Plate 1
7 Starter motor yoke 1
8 Armature 1
9 Brush holder 1
10 O-ring 1 Not reusable
11 Circlip 1
12 Drive gear 1
13 O-ring 1 Not reusable
9
1
5
7
8
4
6
2
3
10
MM
13
12
11
9 Nm (0.9 kgf·m, 6.6 ft·lb)
7 Nm (0.7 kgf·m, 5.2 ft·lb)
MM

Yamaha WaveRunner VXR VX1800A Specifications

General

Model	WaveRunner VXR VX1800A
Seating Capacity	3
Starting System	Electric
Displacement	1812cc
Fuel Type	Unleaded gasoline
Fuel Delivery System	Electronic Fuel Injection
Rider Capacity	3
Bore x Stroke	86 mm x 78 mm
Fuel Capacity	70.8 L (18.7 US gal)
Height	1.19 m (47 in)
Dry Weight	385 kg (849 lb)
